8061SRM30.10

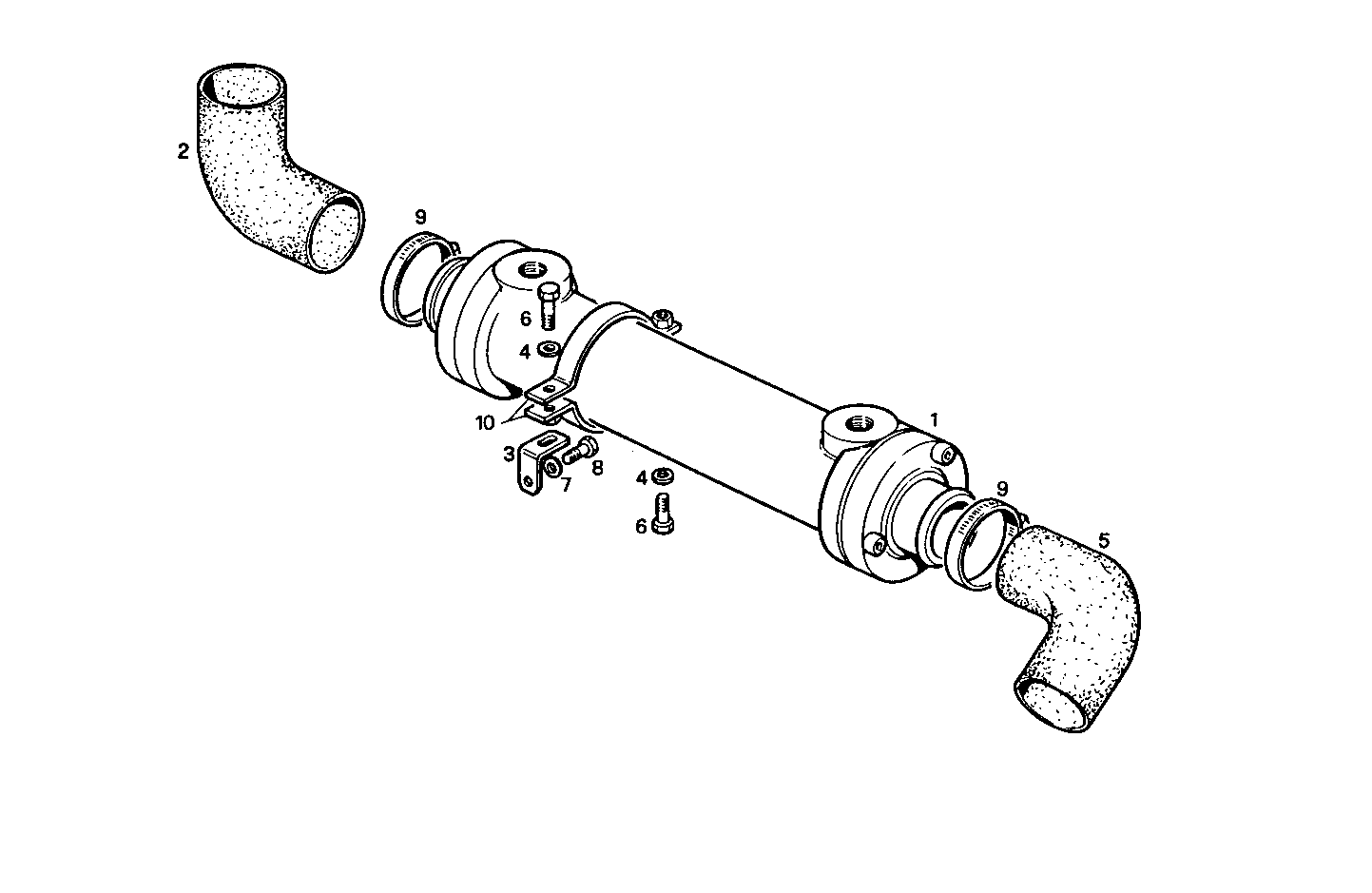

3350.007/01 REVERSER WATER HEAT EXCHANGER
Item | Part number | Description |
---|---|---|
1 | 8016304 | OIL/WATER HEAT EXCHANGER ASSY |
2 | 4604779 | WATER HOSE |
3 | 8103023 | RETAINER |
4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 | 8102099 | RUBBER SLEEVE |
6 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
7 | 17090174 | SPRING WASHER Ø10X20 MM |
8 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
9 | 17764893 | CLIP Ø40/60 MM |
10 | 5116798 | CLIP ASSY [from 06-93] |
