8061SRM30.10

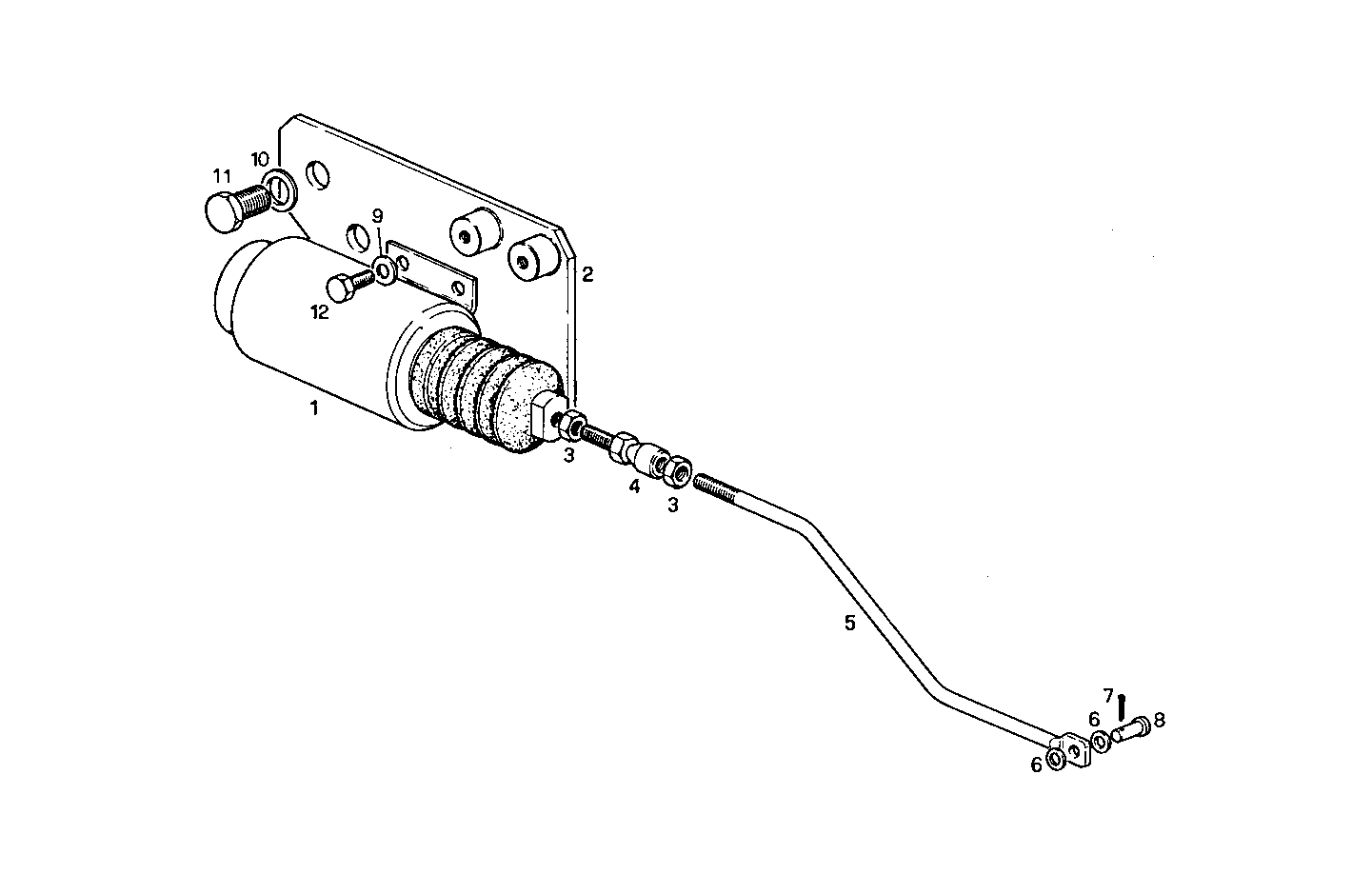

5650.008 ELECTRIC STOP ENGINE
Item | Part number | Description |
---|---|---|
1 | 8105420 | SOLENOID 12V opt. |
2 | 8113902 | PLATE |
3 | 15896211 | HEXAGON NUT M6 |
4 | 8109368 | TIE ROD |
5 | 8006139 | TIE ROD |
6 | 12648101 | WASHER |
7 | 16853801 | SPLIT PIN |
8 | 17718514 | PIN |
9 | 11197779 | SPRING WASHER Ø6X12 MM |
10 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
11 | 15970521 | HEXAGON BOLT M10X20 MM |
12 | 10902221 | HEXAGON BOLT M6X16 MM |
