8061SRM30.10

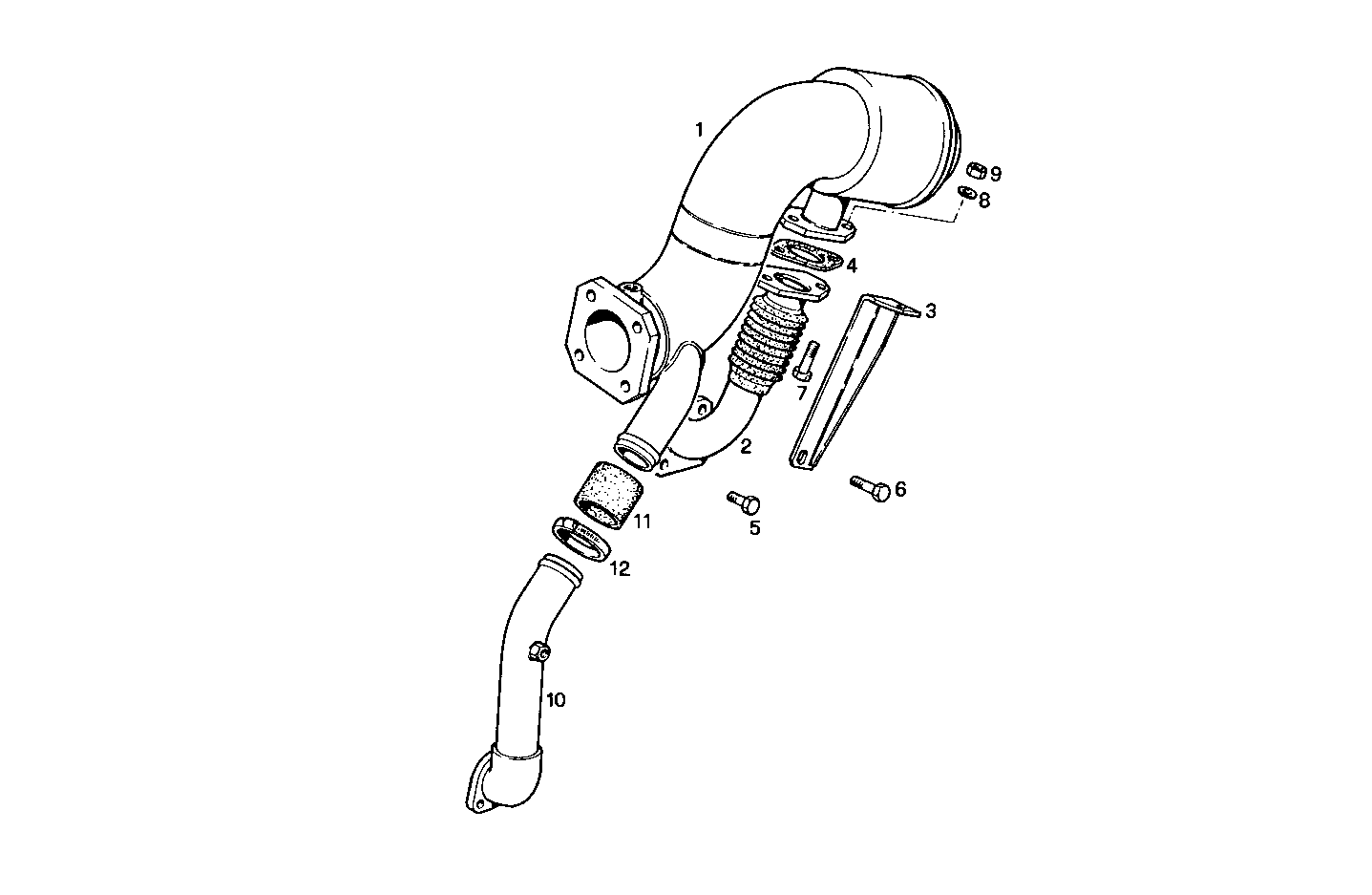

A40050013 GAS-WATER MIXER WITH STERN OUTLET
Item | Part number | Description |
---|---|---|
1 | 8013163 | EXHAUST COOL. ELBOW |
2 | 8013161 | EXHAUST ELBOW |
3 | 8013162 | RETAINER |
4 | 98489690 | EXH. MANIFOLD GKT |
5 | 16605524 | HEXAGON BOLT M8X20 MM |
6 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
7 | 16605734 | HEXAGON BOLT M8X30 MM |
8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
9 | 17037931 | HEXAGON NUT M8X1,25 |
10 | 8010619 | WATER PIPE |
11 | 17742687 | RUBBER SLEEVE |
12 | 17764793 | CLIP Ø32/50 MM |
