8061SRM30.10

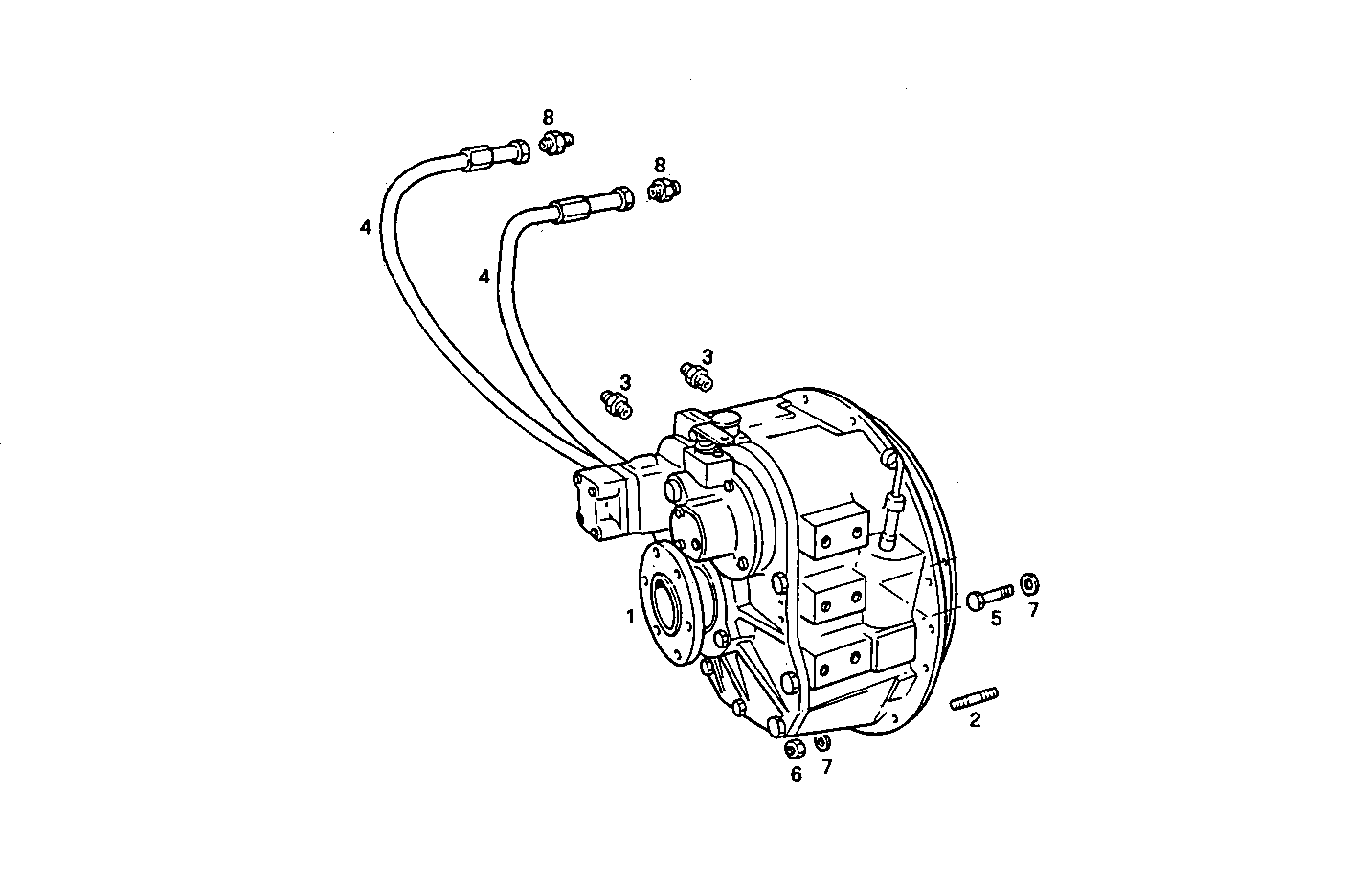

A51140026 MARINE GEAR TWIN DISC MG 506-1 - ratio 1.09:1

Iveco/FPT MARINE GEAR TWIN DISC MG 506-1

Item Part number Description
1 8108637 MARINE GEAR 1,09:1
2 13449521 STUD M10X15X25
3 4935465 PIPE SOCKET
4 4935779 HOSE
5 15970921 HEXAGON BOLT M10X1,25X35 MM
6 17038221 HEXAGON NUT M10
7 17090174 SPRING WASHER Ø10X20 MM
8 8101073 PIPE SOCKET
