8061SRM30.10

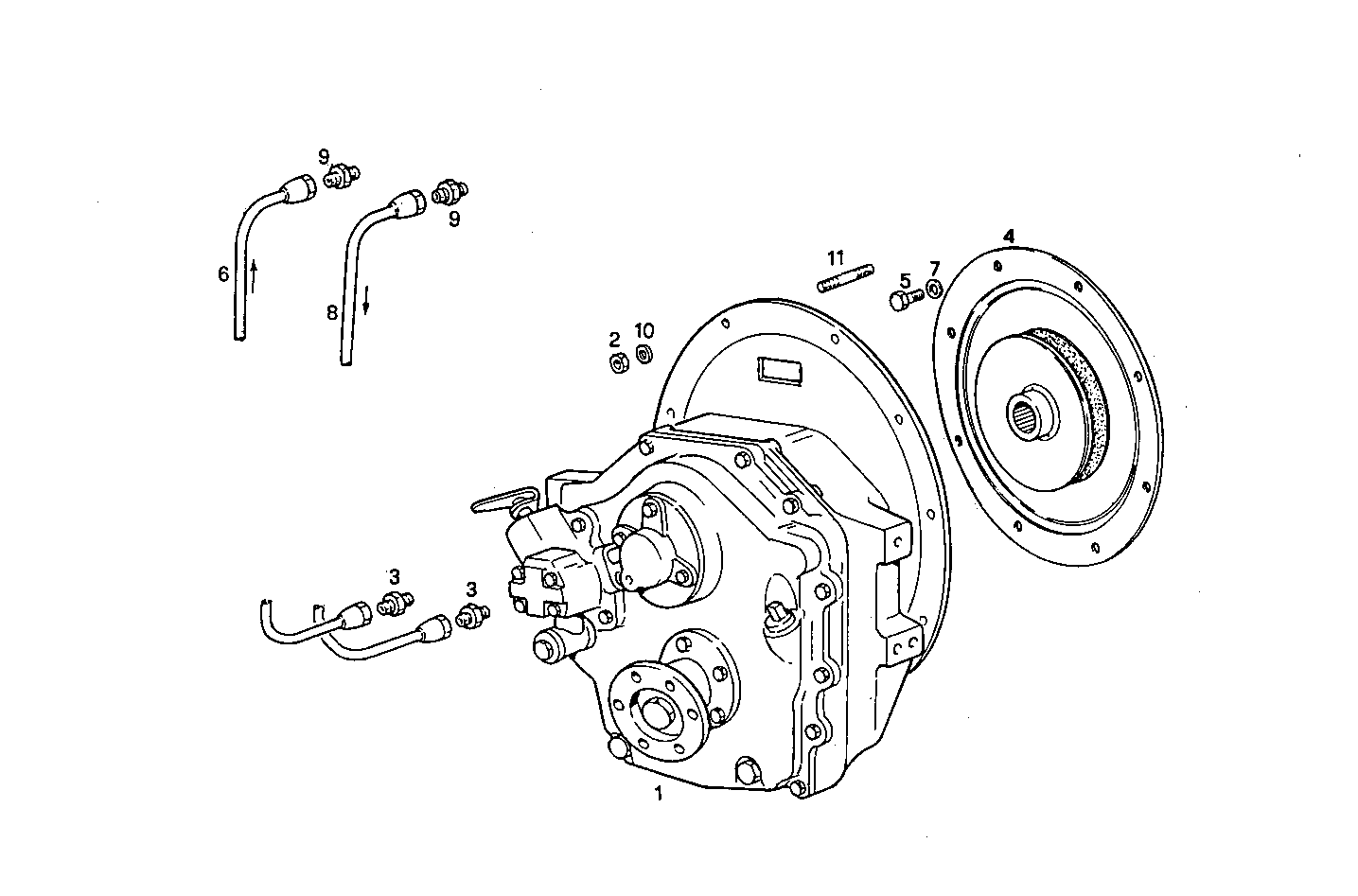

A51570004 MARINE GEAR ZF-MPM IRM 220 A1 (ang. 10º) - ratio 1.23:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8016985 | MARINE GEAR 1,23:1 |
| 2 | 17038221 | HEXAGON NUT M10 |
| 3 | 8101073 | PIPE SOCKET |
| 4 | 8005929 | FLEXPLATE |
| 5 | 15970521 | HEXAGON BOLT M10X20 MM |
| 6 | 8105620 | HOSE |
| 7 | 10571879 | WASHER |
| 8 | 4935490 | OIL LINE |
| 9 | 4935465 | PIPE SOCKET |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 13449521 | STUD M10X15X25 |
