8061SRM33.10

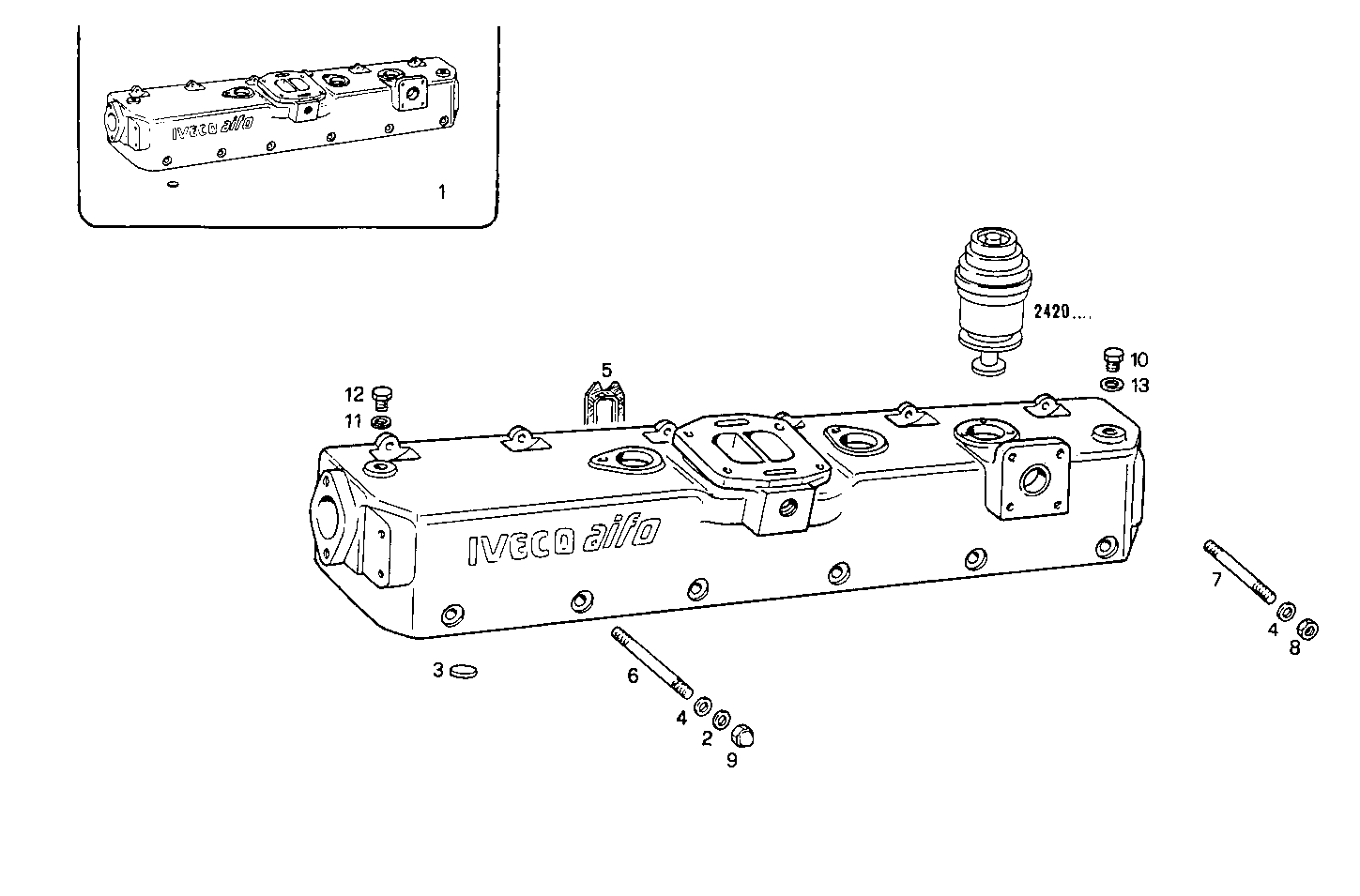

0760.065 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8016749 | COOLED EXHAUST MANIF. ASSY |
| 2 | 17094904 | WASHER Ø8X16X1,6 MM |
| 3 | 16991170 | LOCK PLUG Ø36 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 98489690 | EXH. MANIFOLD GKT |
| 6 | 16730724 | STUD M8X110 |
| 7 | 16729524 | STUD M8X1,25X30 |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 17787321 | NUT M8X1,25 |
| 10 | 16992440 | THREADED PLUG M16X1,5 |
| 11 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 12 | 16992240 | THREADED PLUG M12X1,5 |
| 13 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
