8061SRM33.10

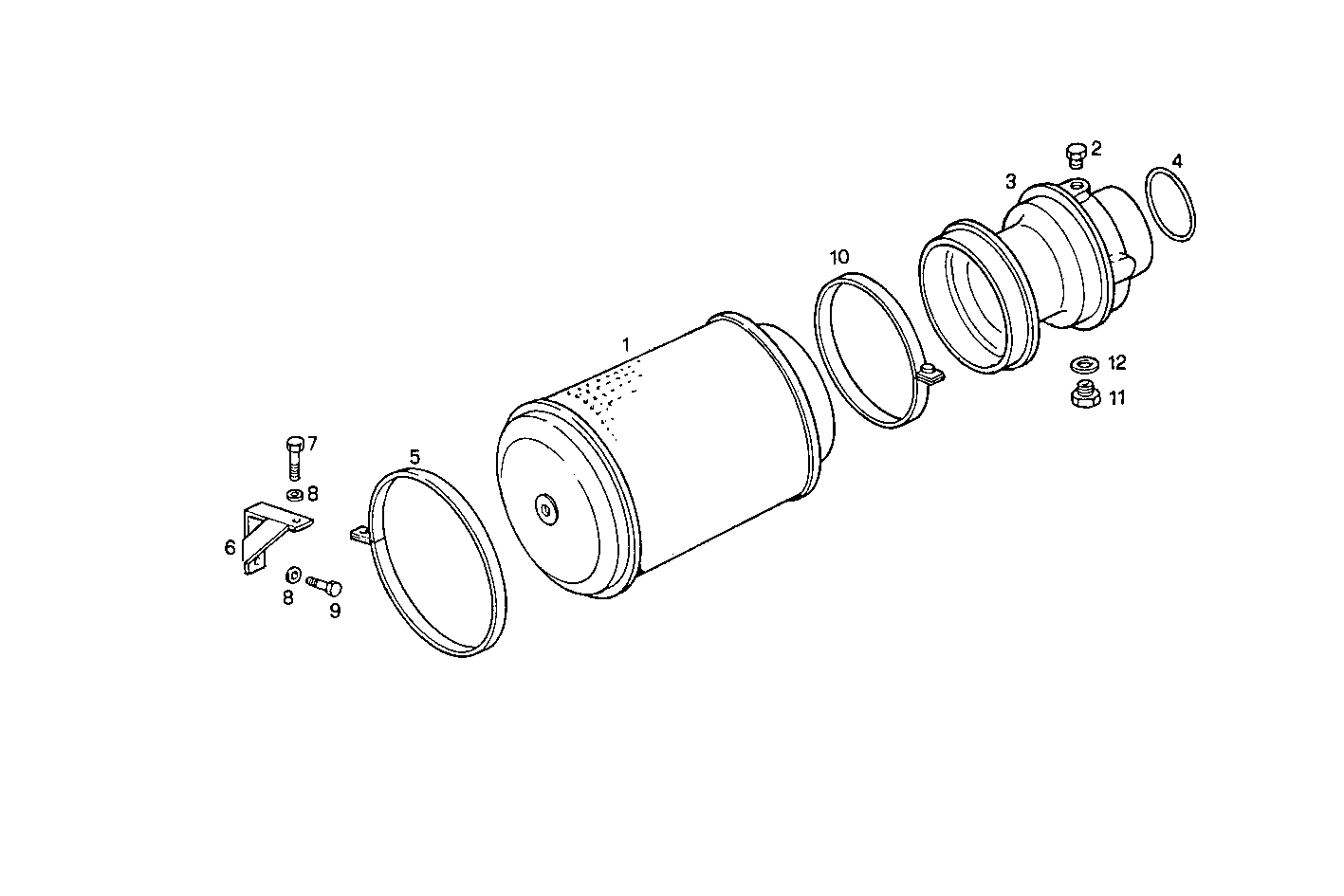

2210.043 AIR CLEANER

Iveco/FPT AIR CLEANER

Item Part number Description
1 8015887 AIR CLEANER ASSY
2 8105144 PLUG
3 8017059 INTAKE ELBOW
4 17290481 O-RING 3,53x69,44 [UP TO # 328594]
5 8017225 CLIP DIA 133 [from ...]
6 8017075 RETAINER
7 16605824 HEXAGON BOLT M8X35 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 16605424 SCREW M8X16 MM (8.8)
10 8017274 CLIP
11 16992211 THREADED PLUG M12X1,5
12 4858607 WASHER Ø12X17 MM SP=1,5 MM
