8061SRM33.10

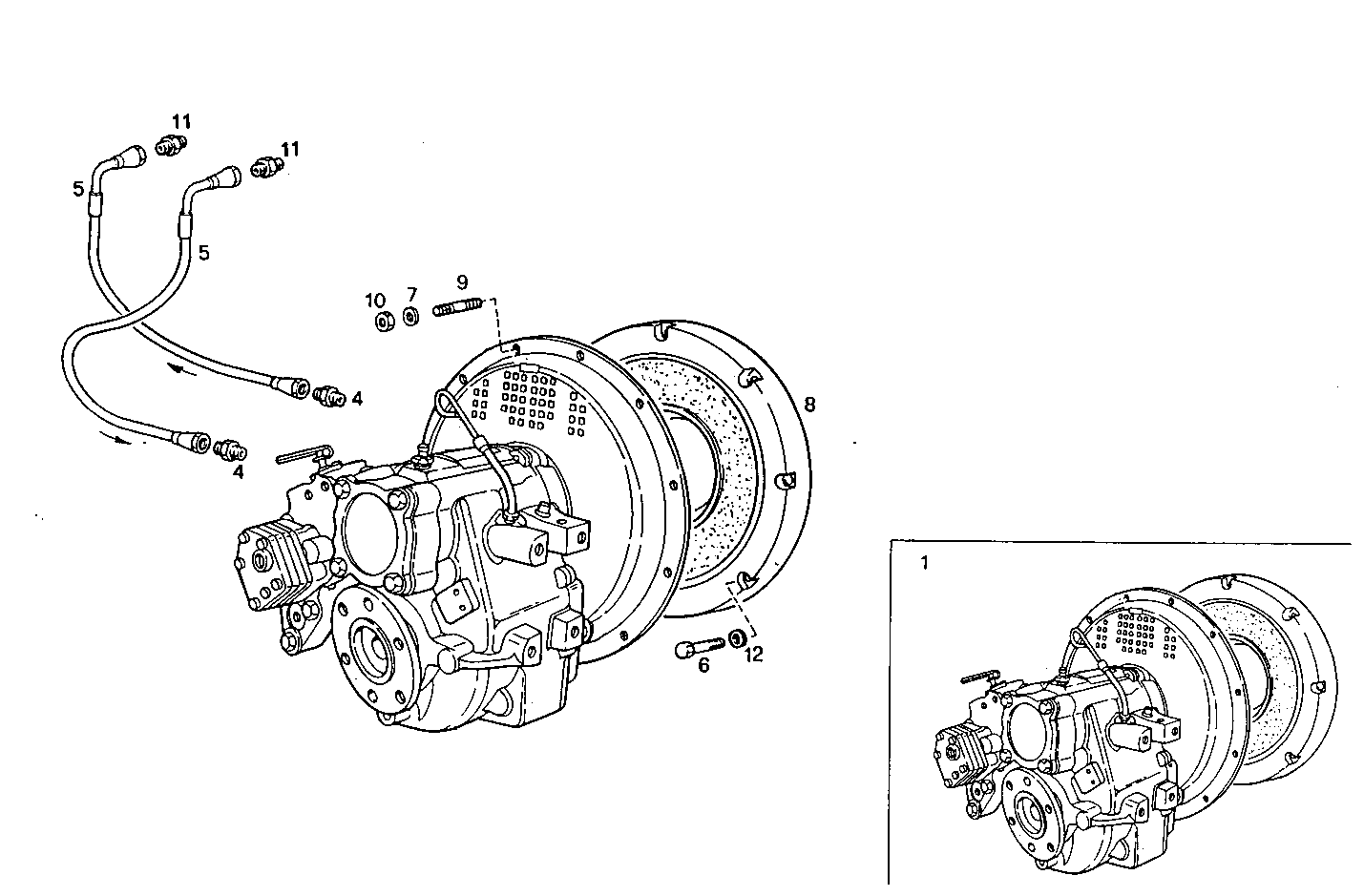

A51620008 MARINE GEAR TWIN DISC MG 5061-A - ratio 1.13:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8012986 | MARINE GEAR 1,13:1 |
| 4 | 4935465 | PIPE SOCKET |
| 5 | 4935780 | OIL HOSE |
| 6 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 8014086 | FLEXIBLE COUPLING |
| 9 | 13449521 | STUD M10X15X25 |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 8101073 | PIPE SOCKET |
| 12 | 17494934 | WASHER Ø10X18,1X2,2 MM |
