8061SRM33.12

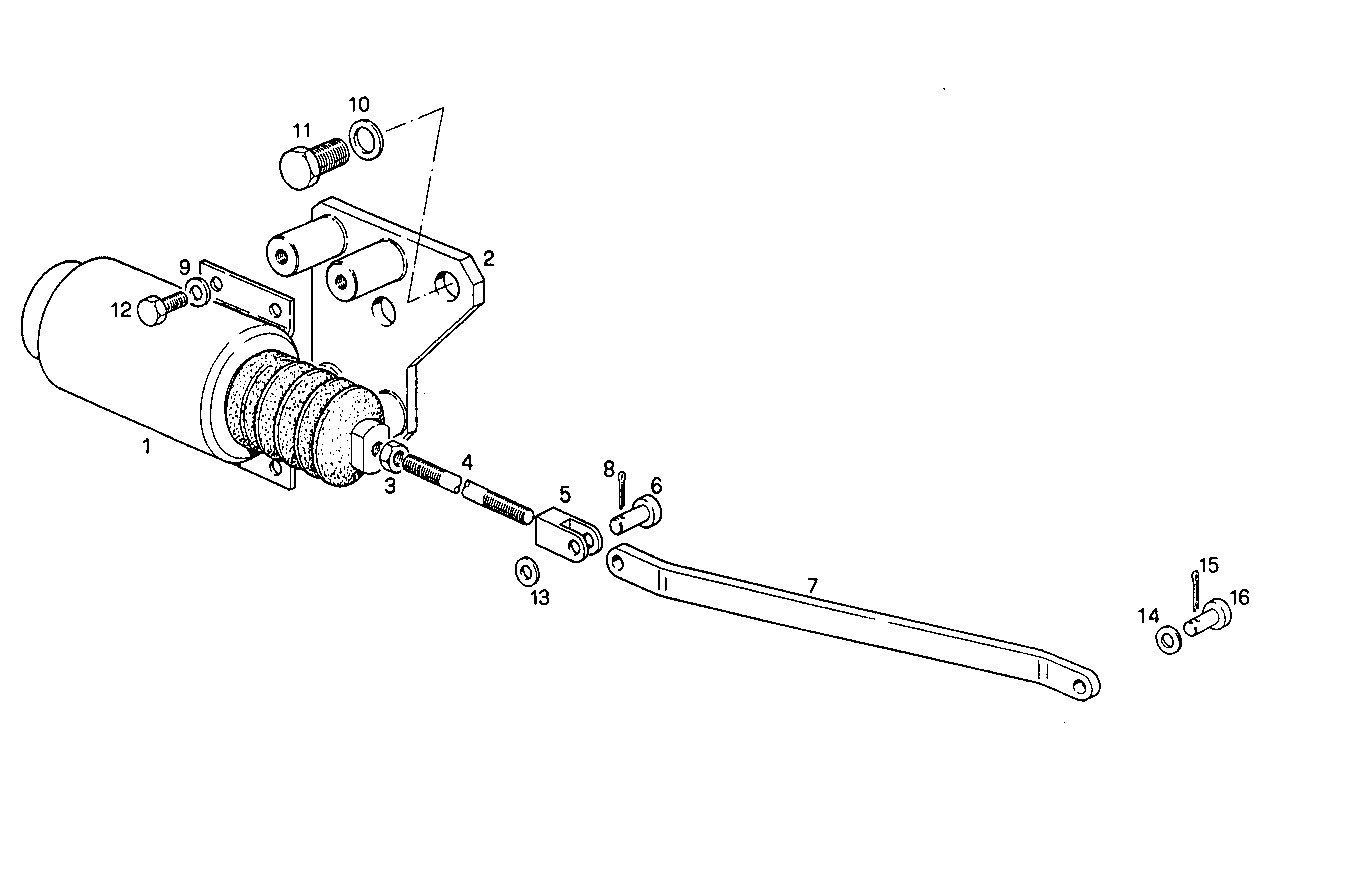

5650.020 ELECTRIC STOP ENGINE
| Item | Part number | Description |
|---|---|---|
| 1 | 8017205 | SOLENOID 12V |
| 2 | 8033565 | PLATE |
| 3 | 17037821 | HEXAGON NUT M6X1 |
| 4 | 16745224 | STUD M6X12X30 |
| 5 | 8109159 | CLEVIS M6X40 |
| 6 | 17718411 | PIN Ø5 MM |
| 7 | 8017175 | TIE ROD |
| 8 | 16852501 | SPLIT PIN Ø1,6X12 MM |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 15970621 | SCREW M10X1,25X22 |
| 12 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 13 | 17094504 | WASHER Ø5,3X10 MM |
| 14 | 16665404 | WASHER Ø6X12X1,6 MM |
| 15 | 16853901 | SPLIT PIN Ø2 MM |
| 16 | 17718511 | PIN Ø6 MM |
