8061SRM33.12

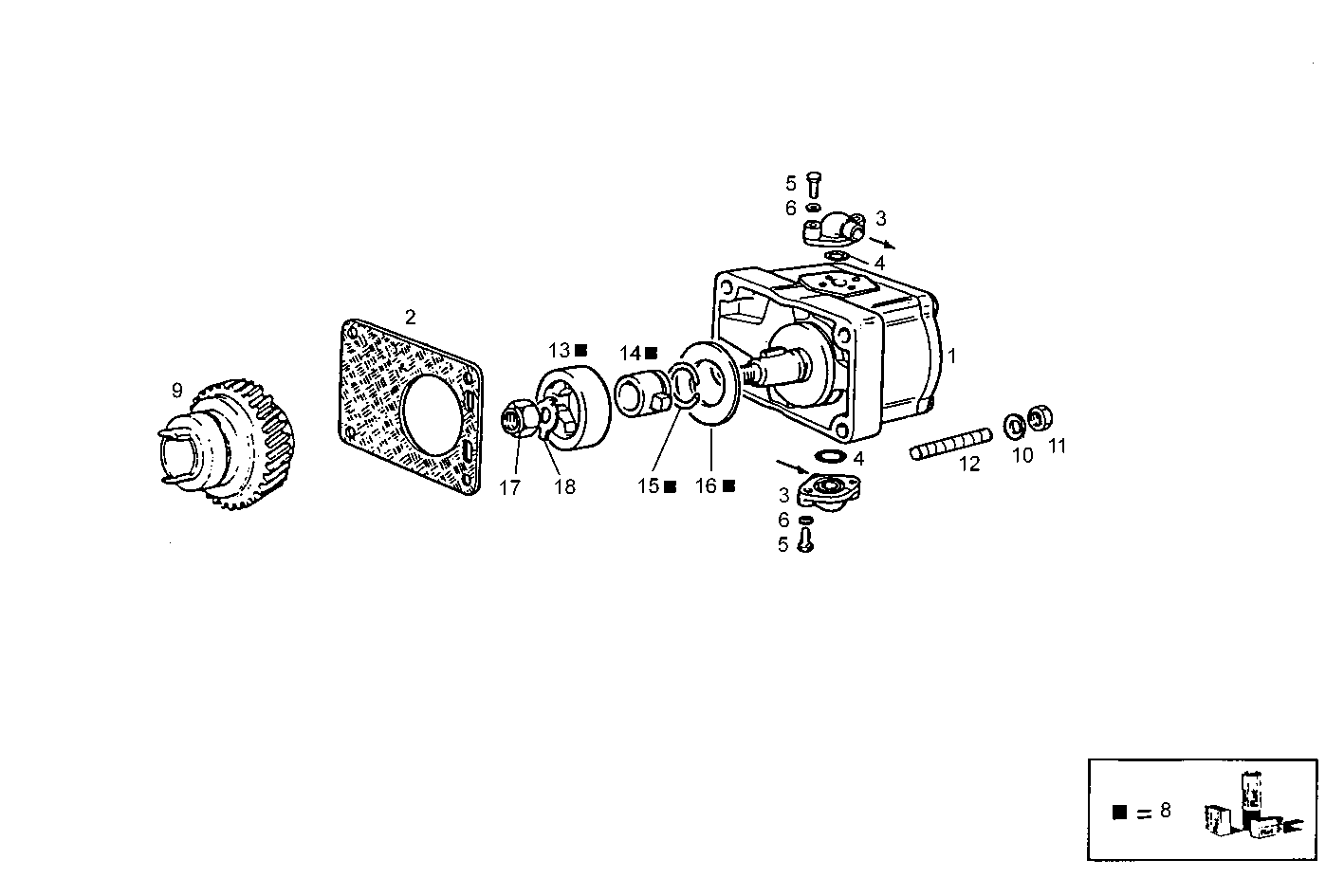

A09010008 REAR HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 5179724 | HYDRAULIC PUMP ASSY BOSCH |
| 2 | 500378759 | FLAT ENGINE GASKET ASSY |
| 3 | 4670953 | PIPE SOCKET |
| 4 | 17281781 | O-RING Ø15,5 MM SP=2,6 MM |
| 5 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 8 | 8090343 | KIT-HYDRAULIC PUMP |
| 9 | 4784432 | SHAFT |
| 10 | 17094724 | WASHER Ø6X12 MM |
| 11 | 17037821 | HEXAGON NUT M6X1 |
| 12 | 4615276 | STUD M8X20 |
| 13 | 4621358 | RING |
| 14 | 8011614 | HUB |
| 15 | 17082776 | SPRING LOCKWASHER Ø23,7 MM |
| 16 | 4609538 | CENTERING RING |
| 17 | 8273919 | NUT BOSCH |
| 18 | 8273920 | WASHER BOSCH |
