8061SRM33.12

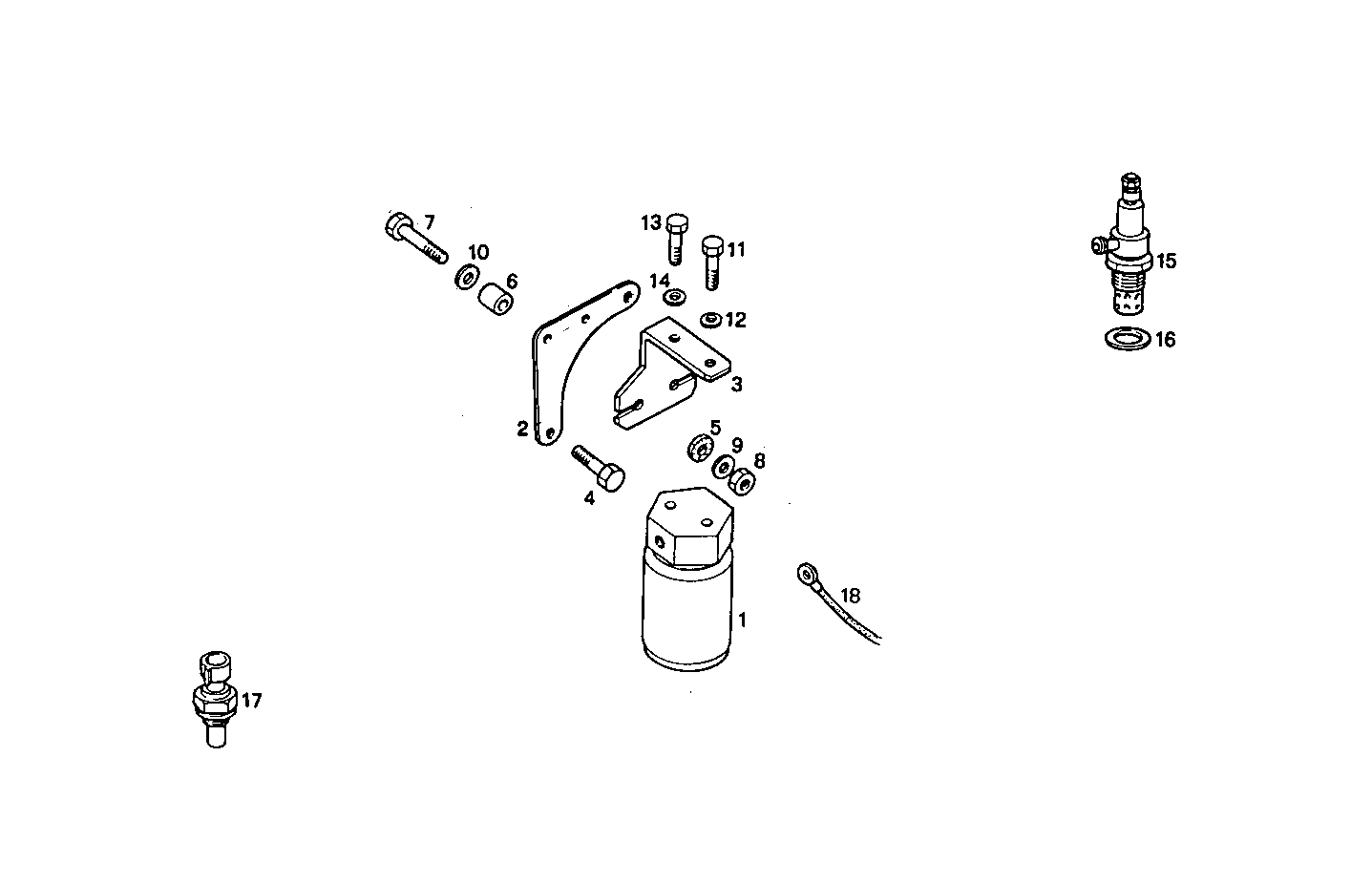

A20100003/01 THERMOSTARTER - 12V with electronic control unit

Iveco/FPT THERMOSTARTER

Item Part number Description
1 98494902 ELECTROVALVE
2 8018800 RETAINER
3 4829507 RETAINER
4 16605924 SCREW M8X40 MM
5 4833816 INSULATING RING
6 4833815 SPACING BAR
7 10902521 HEXAGON BOLT M6X22 MM (8.8)
8 17037821 HEXAGON NUT M6X1
9 12643701 WASHER Ø6X18 MM
10 17088474 WASHER Ø6X12 MM
11 16602024 SCREW M5X12 MM (8.8)
12 11199279 SPRING WASHER Ø5X10X0,5 MM
13 16603524 SCREW M6X12 MM (8.8)
15 4849601 THERMO-STARTER
16 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
17 4857248 TRANSMITTER
18 8018881 WIRE/CABLE
