8061SRM33.12

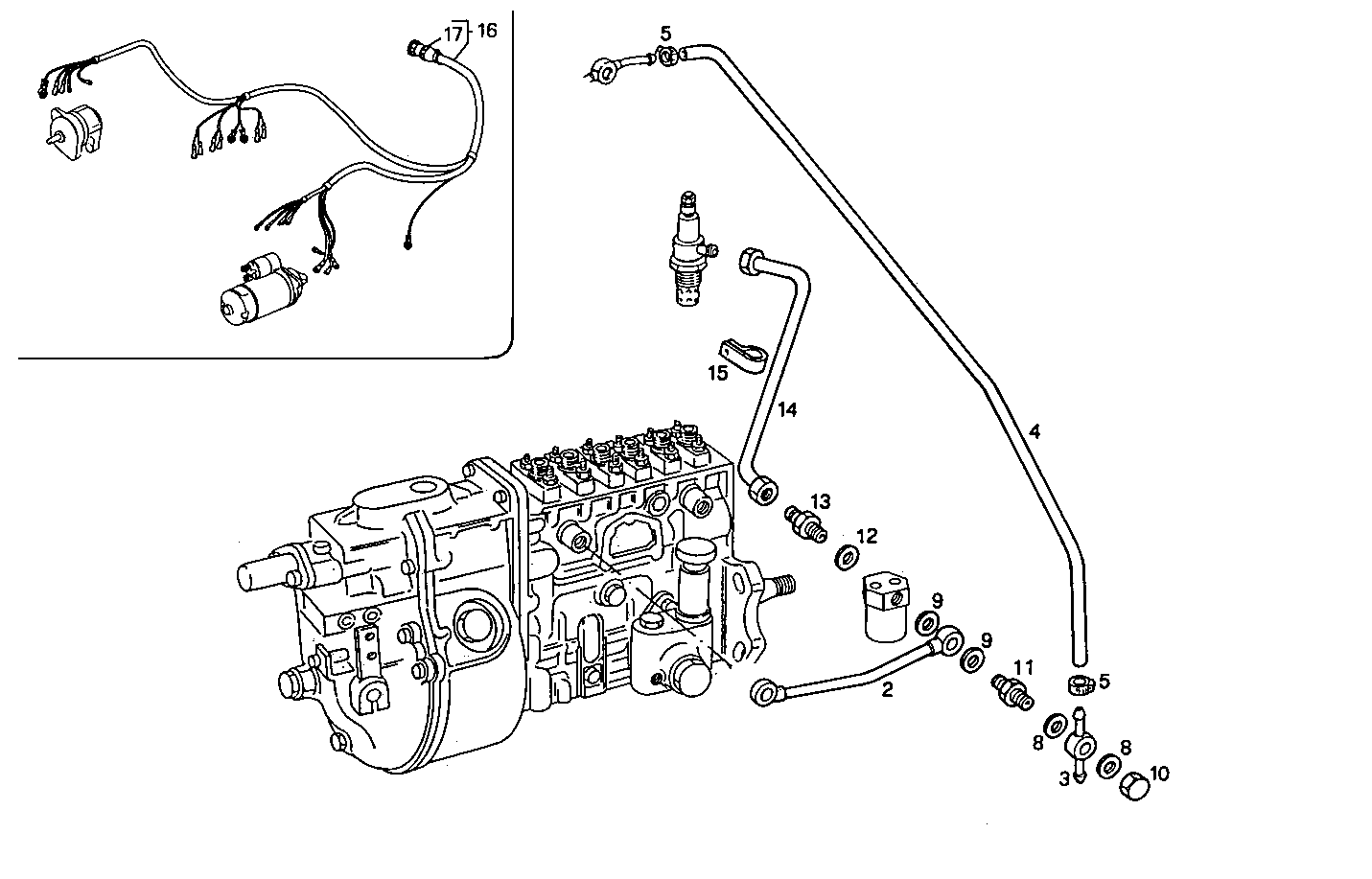

A20110002/02 THERMOSTARTER - 24V with electronic control unit
Item | Part number | Description |
---|---|---|
2 | 8018805 | FUEL LINE |
3 | 4775496 | PIPE SOCKET 1C |
4 | 8018830 | FUEL LINE |
5 | 17764393 | CLIP Ø12/20 MM |
6 | 4858606 | GASKET Ø10X14X1 MM |
8 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
9 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
10 | 98469675 | THREADED PLUG M12X1 |
11 | 98469450 | BYPASS VALVE |
13 | 16500011 | PIPE SOCKET |
14 | 8018804 | FUEL LINE |
15 | 4804122 | CLIP |
16 | 8017132 | ENGINE HARNESS ASSY [up to 03-95] |
17 | 8108365 | CONNECTION |
