8061SRM33.12

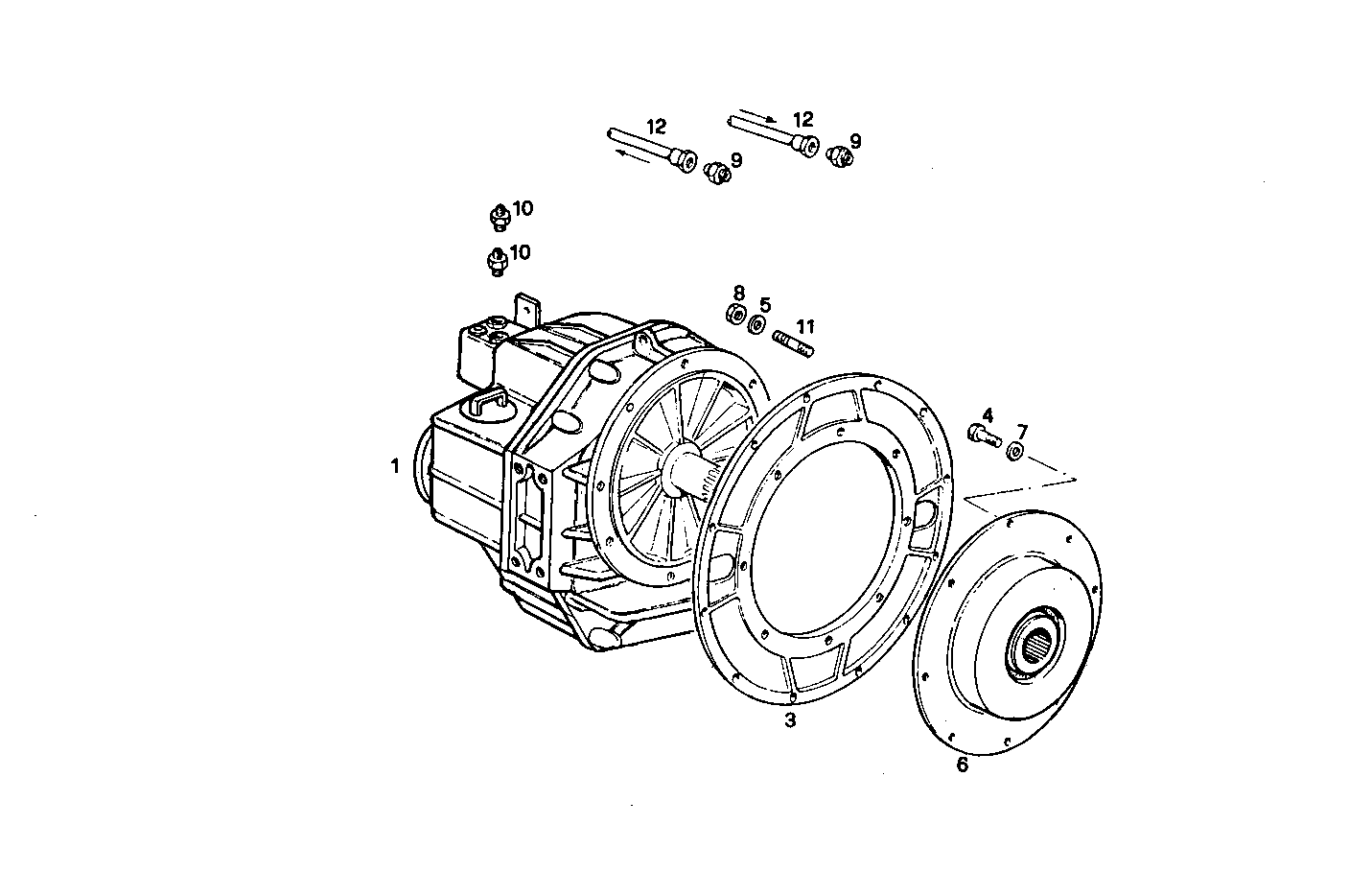

A51780002 MARINE GEAR HURTH HSW 800 A2 - ratio 1.96:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8019305 | MARINE GEAR 1,96:1 |
| 3 | 8019306 | FLANGE |
| 4 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 8018850 | FLEXPLATE |
| 7 | 17095004 | WASHER Ø10X18X2 MM |
| 8 | 17038221 | HEXAGON NUT M10 |
| 9 | 8101073 | PIPE SOCKET |
| 10 | 4935465 | PIPE SOCKET |
| 11 | 13449521 | STUD M10X15X25 |
| 12 | 8111496 | HOSE |
