8061SRM33.40

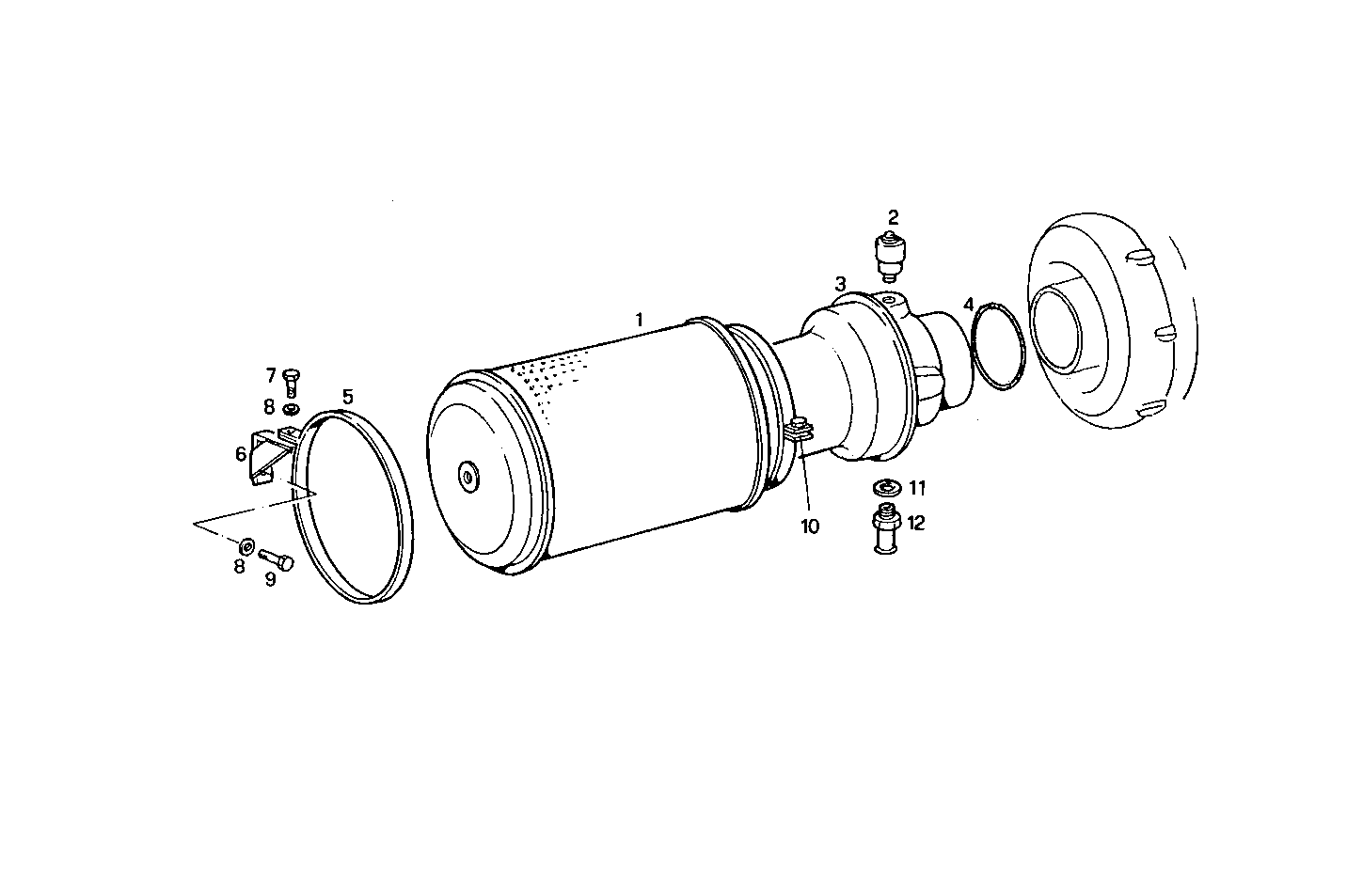

2210.024 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8015887 | AIR CLEANER ASSY |
| 2 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 8017059 | INTAKE ELBOW |
| 4 | 17290481 | O-RING 3,53x69,44 [UP TO # 328594] |
| 5 | 8017225 | CLIP DIA 133 [from ...] |
| 6 | 8017075 | RETAINER |
| 7 | 16605824 | HEXAGON BOLT M8X35 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
| 10 | 8017274 | CLIP |
| 11 | 8014175 | PIPE SOCKET [up to 03-97] |
| 12 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
