8061SRM33.40

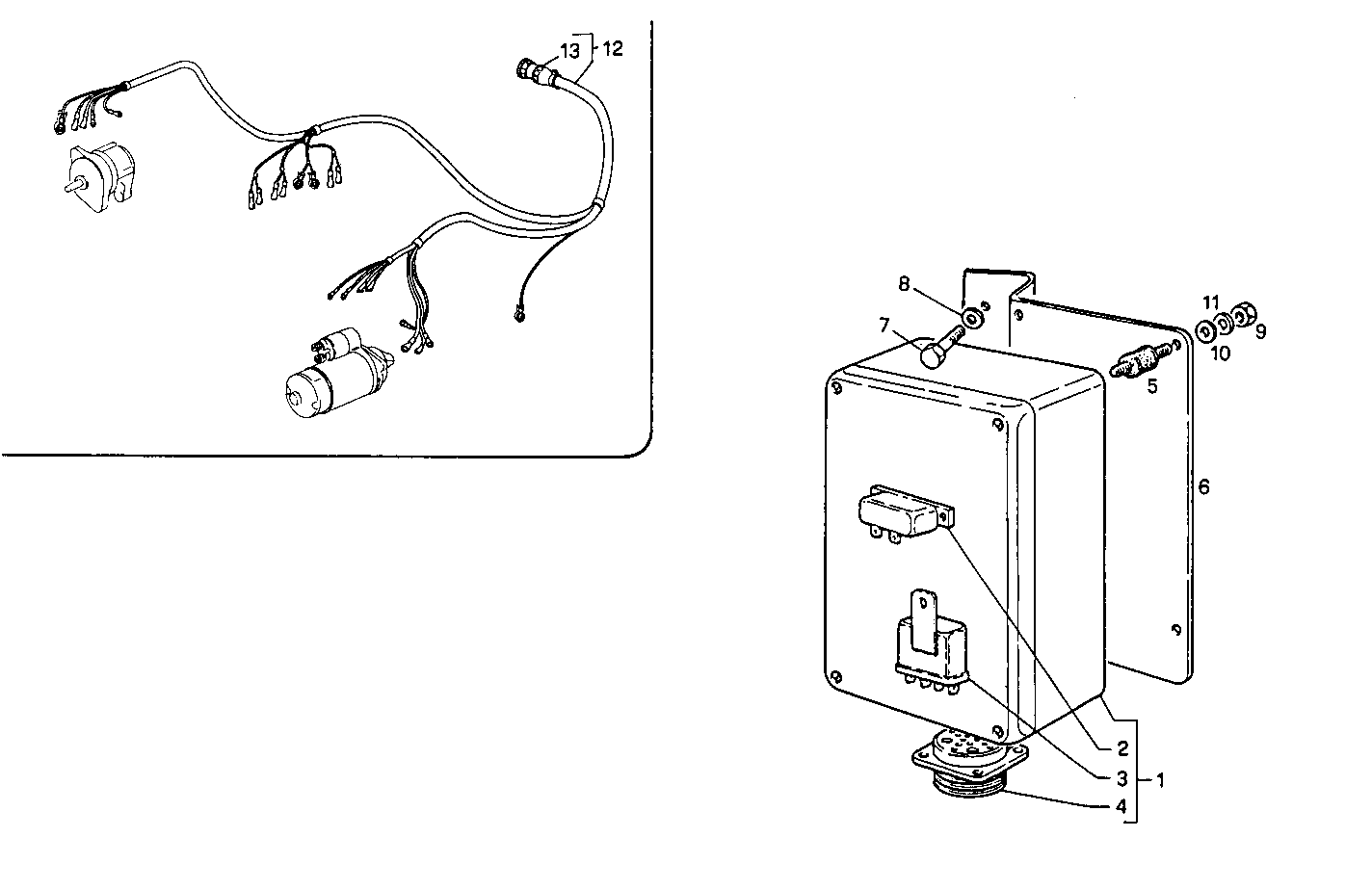

A38100051 ELECTRIC WIRING - 12V
Item | Part number | Description |
---|---|---|
1 | 8020686 | ENGINE STOP ASSY |
2 | 8108574 | RELAY STARTER |
3 | 8094991 | RELAY 12 V |
4 | 8113170 | CONNECTION ASSY |
5 | 4910949 | RUBBER LUG |
6 | 8006308 | RETAINER |
7 | 16605424 | SCREW M8X16 MM (8.8) |
8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
9 | 17037821 | HEXAGON NUT M6X1 |
10 | 17094714 | WASHER Ø6,4X12 MM |
11 | 17710074 | WASHER Ø6X11 MM |
12 | 8017132 | ENGINE HARNESS ASSY [up to 03-95] |
13 | 8108365 | CONNECTION |
