8061SRM33.42

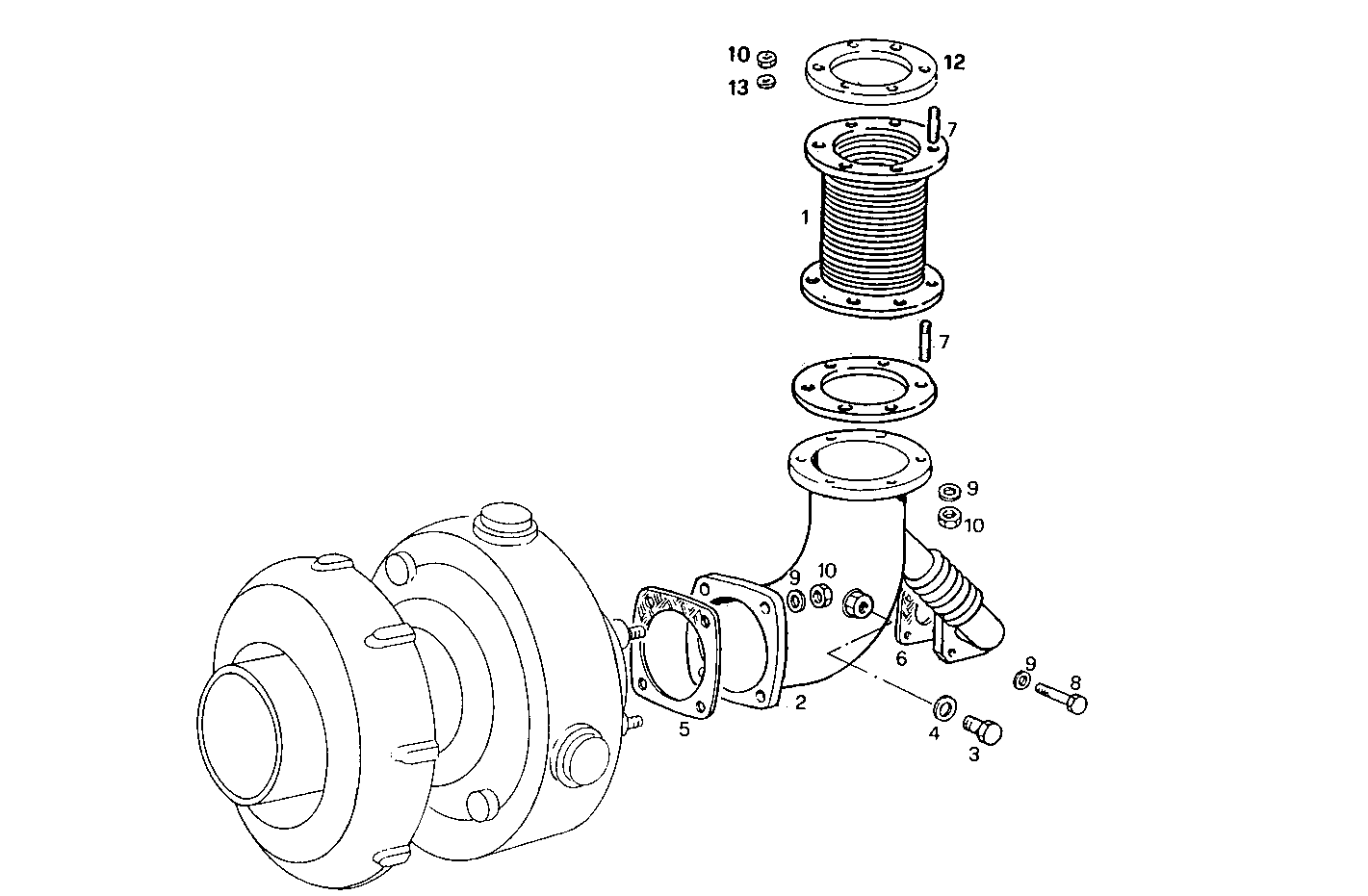

2420.077/01 SUPERCHARGING LINES
Item | Part number | Description |
---|---|---|
1 | 4935378 | EXHAUST BELLOWS |
2 | 8011025 | EXHAUST ELBOW |
3 | 10300540 | PLUG M12X1,5 |
4 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
5 | 8005451 | GASKET |
6 | 4833835 | GASKET |
7 | 13516921 | STUD M8X12X22 MM |
8 | 16605524 | HEXAGON BOLT M8X20 MM |
9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
10 | 17037931 | HEXAGON NUT M8X1,25 |
11 | 8009606 | GASKET |
12 | 4919183 | FLANGE |
13 | 16665514 | WASHER Ø8 MM |
