8061SRU26.05

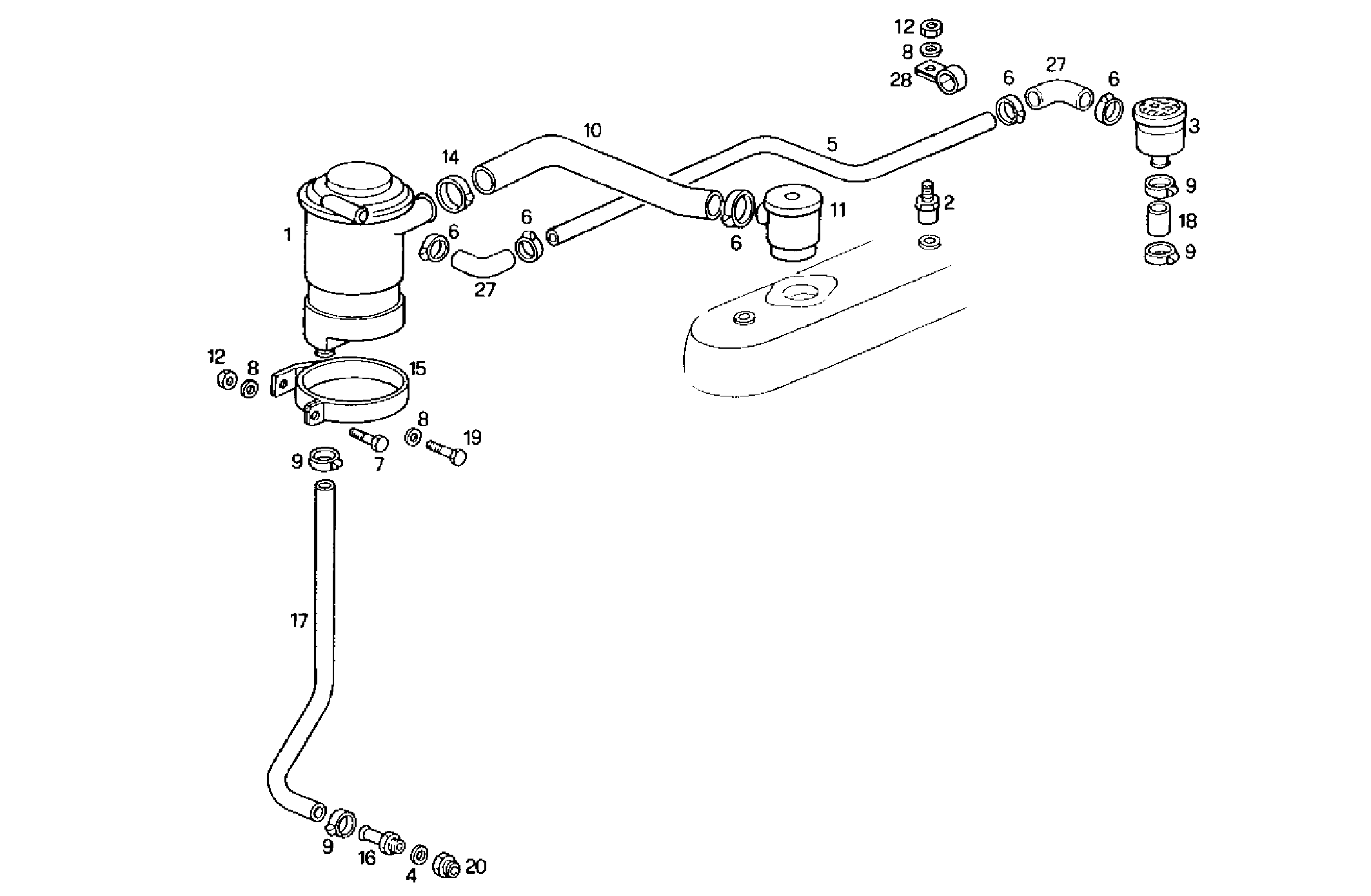

0450.102 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4858569 BREATHER
2 8009967 NUT
3 4810557 BYPASS VALVE
4 4858607 WASHER Ø12X17 MM SP=1,5 MM
5 8027841 AIR PIPE/DUCT
6 17764591 CLIP Ø20/32 MM
7 16605524 HEXAGON BOLT M8X20 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 18088391 CLIP Ø16/25 MM
10 8021614 RUBBER SLEEVE
11 4812047 BREATHER
12 17037931 HEXAGON NUT M8X1,25
14 17764691 CLIP Ø25/40 MM
15 8021600 RETAINER
16 4616630 THREADED UNION
17 8024928 AIR HOSE
18 8016336 OIL HOSE
19 16605424 SCREW M8X16 MM (8.8)
20 8024963 THREADED UNION
27 8108085 RUBBER SLEEVE
28 4033229 CLIP
