Item |
Part number |
Description |

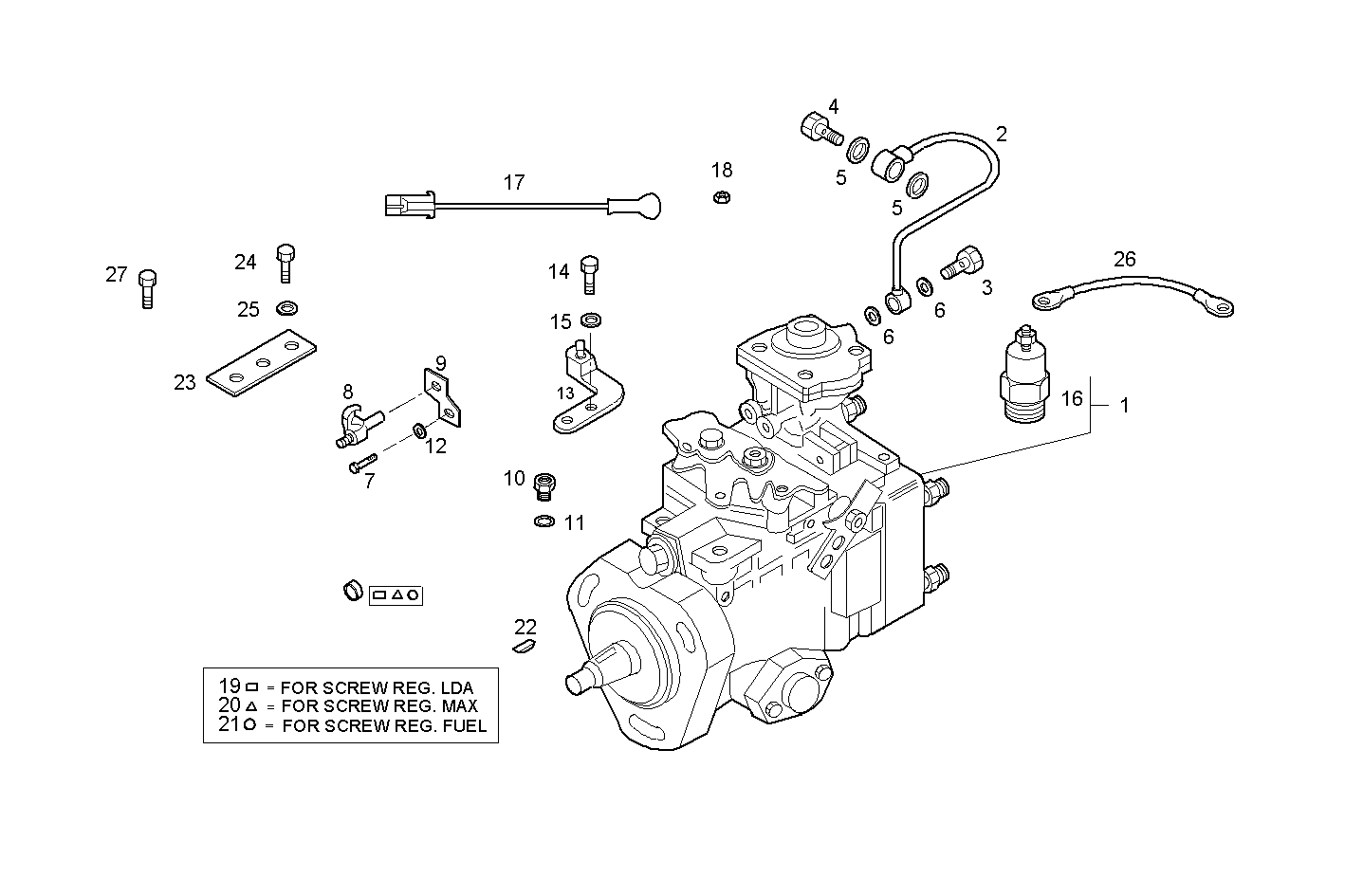

1 |
8025980 |
DISTRIB.INJ.PUMP ASSY |
2 |
4848475 |
FUEL LINE |
3 |
4753761 |
SCREW CONNECTOR |
4 |
4864081 |
SCREW CONNECTOR |
5 |
10279460 |
SEAL GASKET Ø10X16 MM SP=0,5 |
6 |
10262760 |
SEAL GASKET Ø8,2 MM |
7 |
15970524 |
HEXAGON BOLT M10X1,25X20 |
8 |
17868280 |
SPRING CLAMP L=30 MM |
9 |
99481827 |
FASTENING BRACKET |
10 |
4802434 |
THREADED UNION M12X1,5 |
11 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
12 |
17090174 |
SPRING WASHER Ø10X20 MM |
13 |
98445678 |
LEVER |
14 |
16603677 |
HEXAGON BOLT M6X16 MM |
15 |
17798174 |
SPRING WASHER Ø6,1X11,8 MM |
16 |
8100253 |
ELECTROVALVE 12V |
17 |
98438959 |
WIRE/CABLE |
18 |
16979231 |
HEXAGON NUT M5 |
19 |
98488857 |
CAP |
20 |
98488858 |
CAP |
21 |
98488859 |
CAP |
22 |
10205820 |
KEY 4X6,5 MM |
23 |
8024920 |
RETAINER |
25 |
17088474 |
WASHER Ø6X12 MM |
26 |
8023458 |
ENGINE HARNESS |
