8061SRU26.06

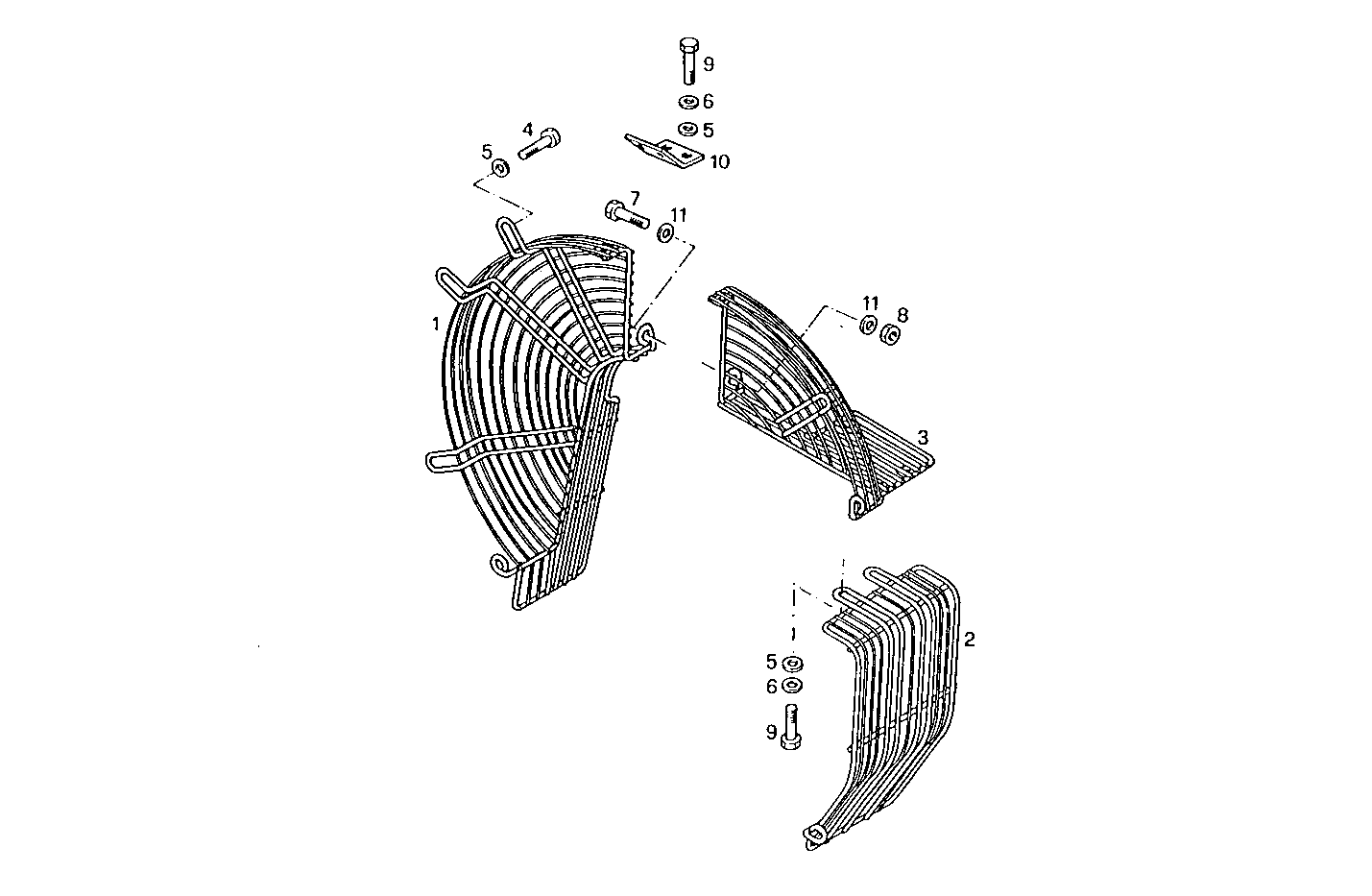

5770.028 SHIELDS

Iveco/FPT SHIELDS

Item Part number Description
1 8008666 PROTECTION
2 8025394 PROTECTION
3 8025393 PROTECTION
4 16605524 HEXAGON BOLT M8X20 MM
5 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
6 17088474 WASHER Ø6X12 MM
7 16605624 HEXAGON BOLT M8X25 MM (8.8)
8 17037925 HEXAGON NUT M8X1,25
9 16603734 HEXAGON BOLT M6X20 MM
10 8009454 RETAINER
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
