8065E00.00A015

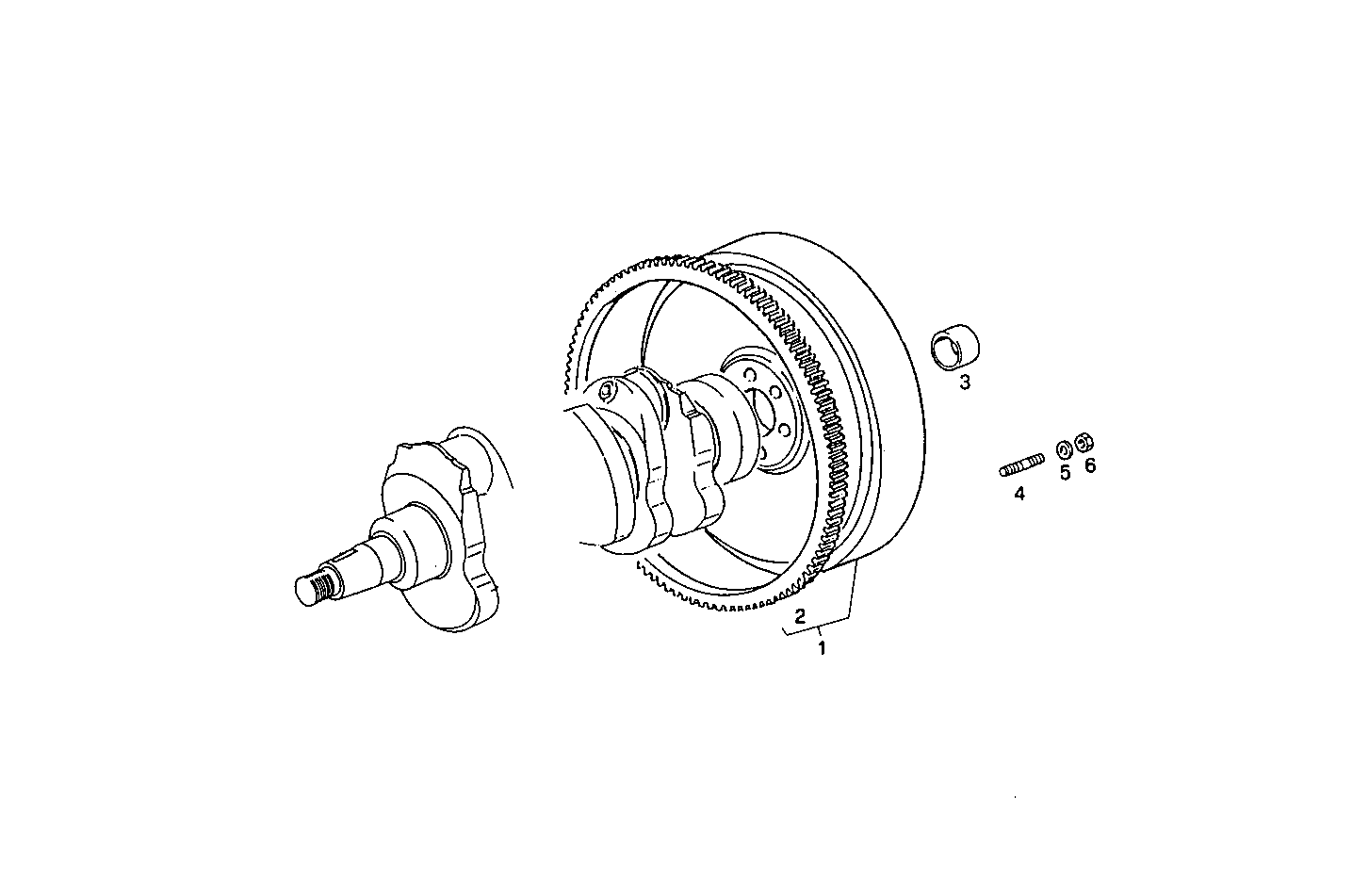

A13220018 FLYWHEEL ARRANGED FOR TRANSMISSION - CLARK 28000-32000 - FLEX-PLATE
Item | Part number | Description |
---|---|---|
1 | 8030238 | FLYWHEEL ASSY |
2 | 4862411 | RING GEAR |
3 | 4934335 | BUSH |
4 | 16731124 | STUD M10X20 |
5 | 17090174 | SPRING WASHER Ø10X20 MM |
6 | 17038121 | HEXAGON NUT M10 |
