8065E00.00A801

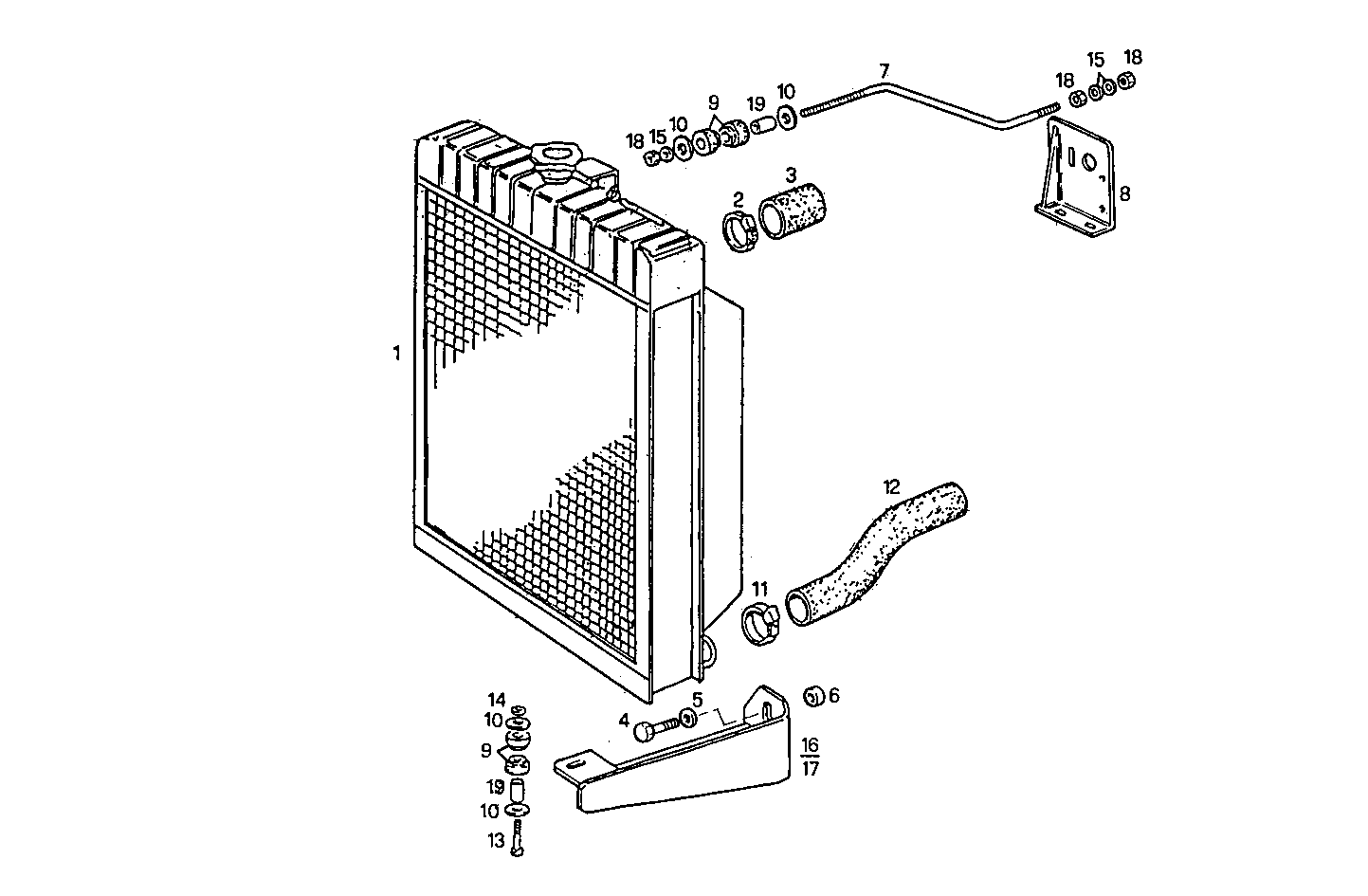

A22010054 RADIATOR FOR SETTING TILL MAX POWER - if compressor not fitted

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8025606 WATER RADIATOR ASSY
2 17764891 CLIP Ø40/60 MM
3 8024783 CONNECTOR SLEEVE
4 11391521 HEXAGON BOLT M16X45 MM
5 17092174 SPRING WASHER Ø16X32X3,4
6 4934451 SPACING BAR
7 8024390 TIE ROD
8 8020521 RETAINER
9 741569 RUBBER LUG
10 741570 WASHER Ø10X17 MM SP=2,3
11 17764791 CLIP Ø32/50 MM
12 8025615 WATER HOSE
13 16608524 HEXAGON BOLT M10X1,5X70 MM (8.8)
14 17090271 WASHER Ø10X20X2,6 MM
15 17091074 WASHER Ø12X24X2,8 MM
16 8104586 SUPPORT RIGHT
17 8104584 SUPPORT LEFT
18 17038421 HEXAGON NUT M12 (8)
19 8108634 SPACING BAR
