8065LE00.00

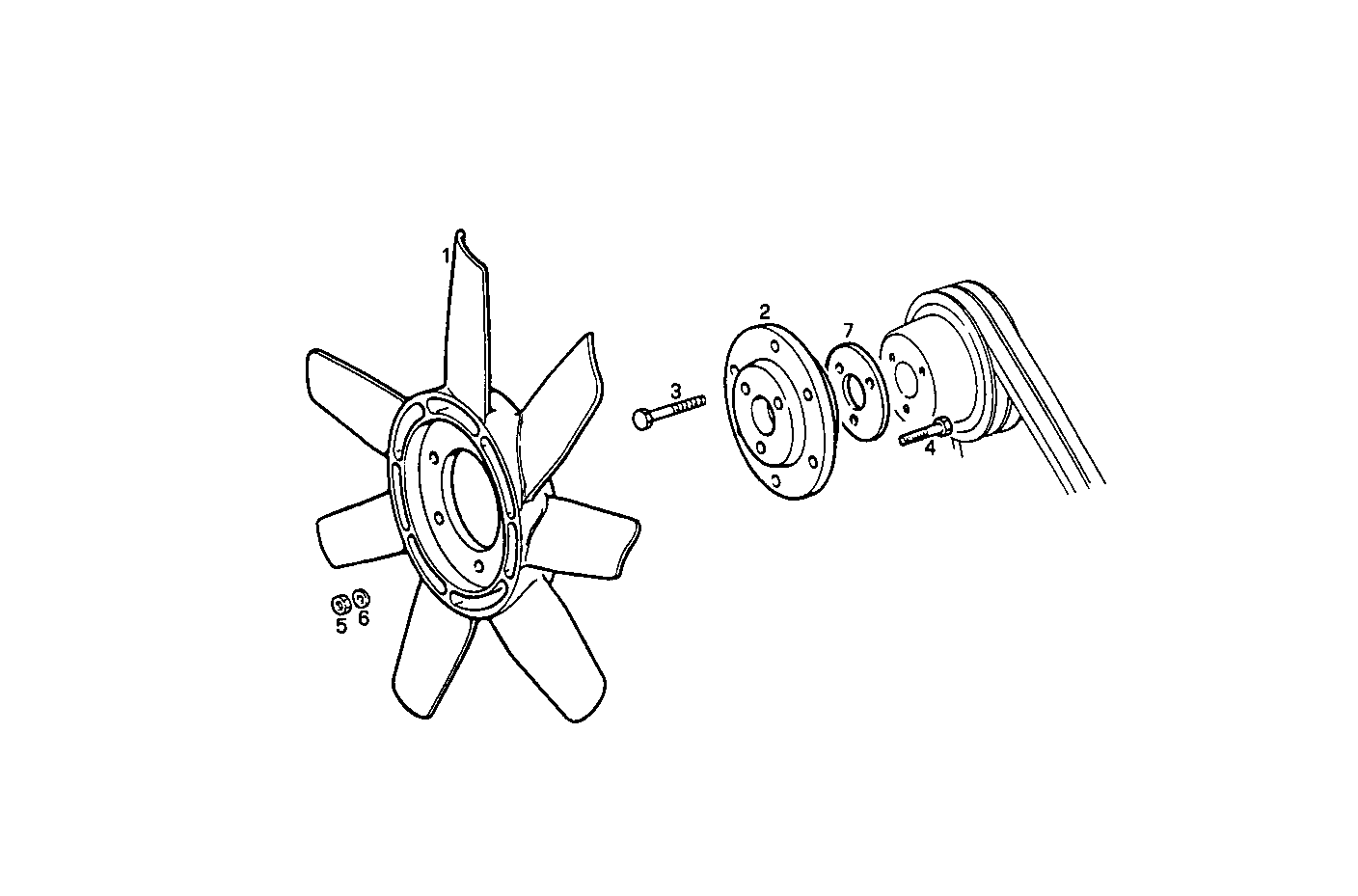

A08000027 PULLER FAN - on water pump without compressor
Item | Part number | Description |
---|---|---|
1 | 4698188 | BLOWER Ø500 MM |
2 | 4929123 | SPACING BAR |
3 | 16606224 | HEXAGON BOLT M8X55 MM |
4 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
5 | 17153021 | HEXAGON NUT M10X1,25 |
6 | 17095004 | WASHER Ø10X18X2 MM |
7 | 4584861 | SPACING BAR |
