Catalogue Menu

8065LE00.00A002

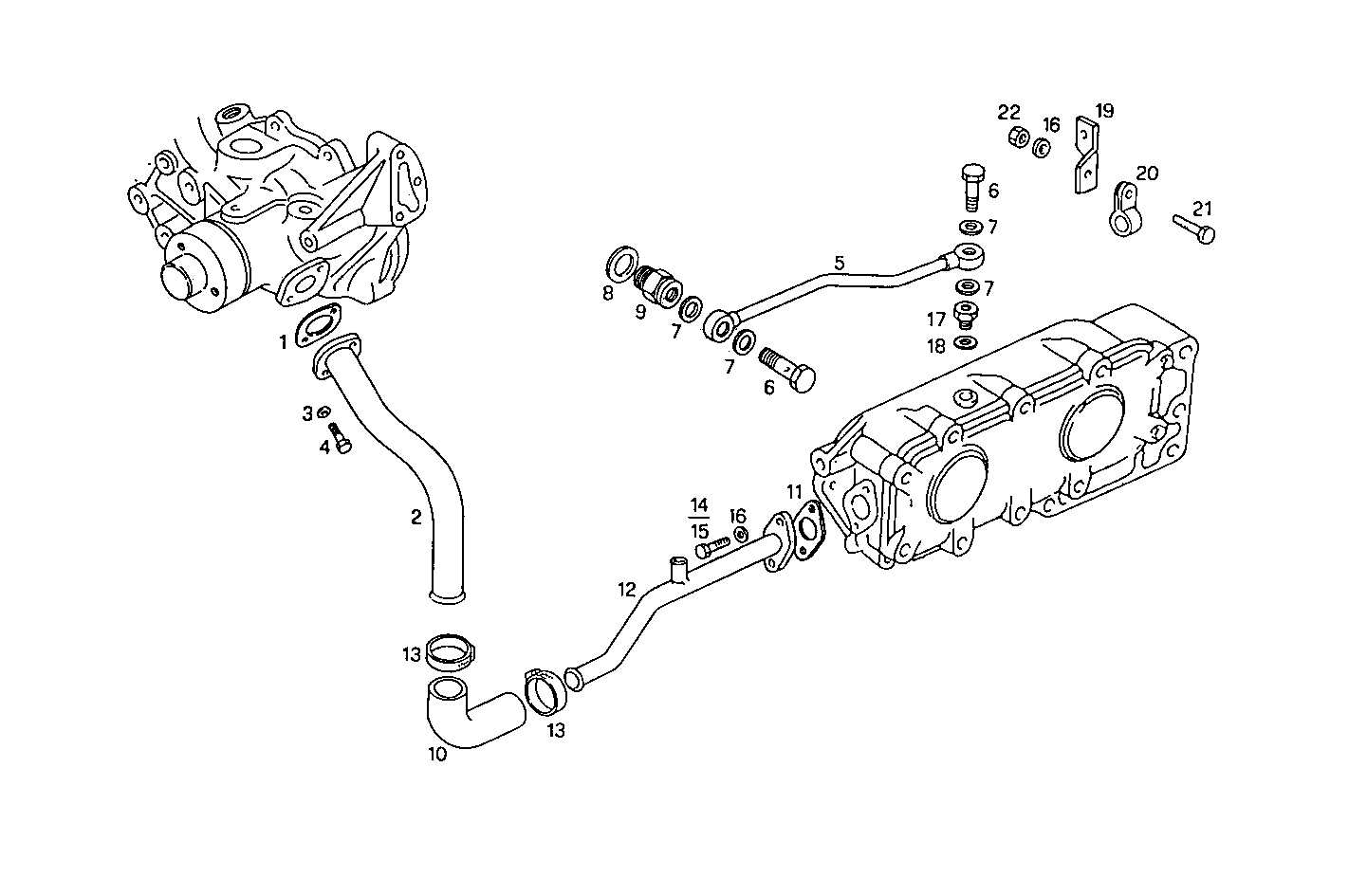

3210.363 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4852556 FLAT ENGINE GASKET
2 500332764 WATER PIPE
3 17094914 WASHER 8x16
4 98401723 HEXAGON BOLT M8X1,25X12 MM
5 98445356 WATER PIPE
6 4864080 SCREW CONNECTOR M10X1,25
7 4858606 GASKET Ø10X14X1 MM
8 16508460 WASHER 22x27x1,5
9 98445134 THREADED UNION SP=7 MM
10 500331119 WATER HOSE
11 4779623 FLAT ENGINE GASKET
12 8027039 WATER PIPE
13 17764892 PIPE CLIP Ø40-60 MM
14 16606424 HEXAGON BOLT M8X65 MM
15 16043724 HEXAGON BOLT M8X28 MM (8.8)
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 98446813 THREADED UNION
18 4858609 WASHER Ø16X22 MM SP=1,5 MM
19 4795309 RETAINER
20 10449890 PIPE CLIP Ø53 MM
21 16605424 SCREW M8X16 MM (8.8)
22 17042531 HEXAGON NUT M8
