8065LE00.00A002

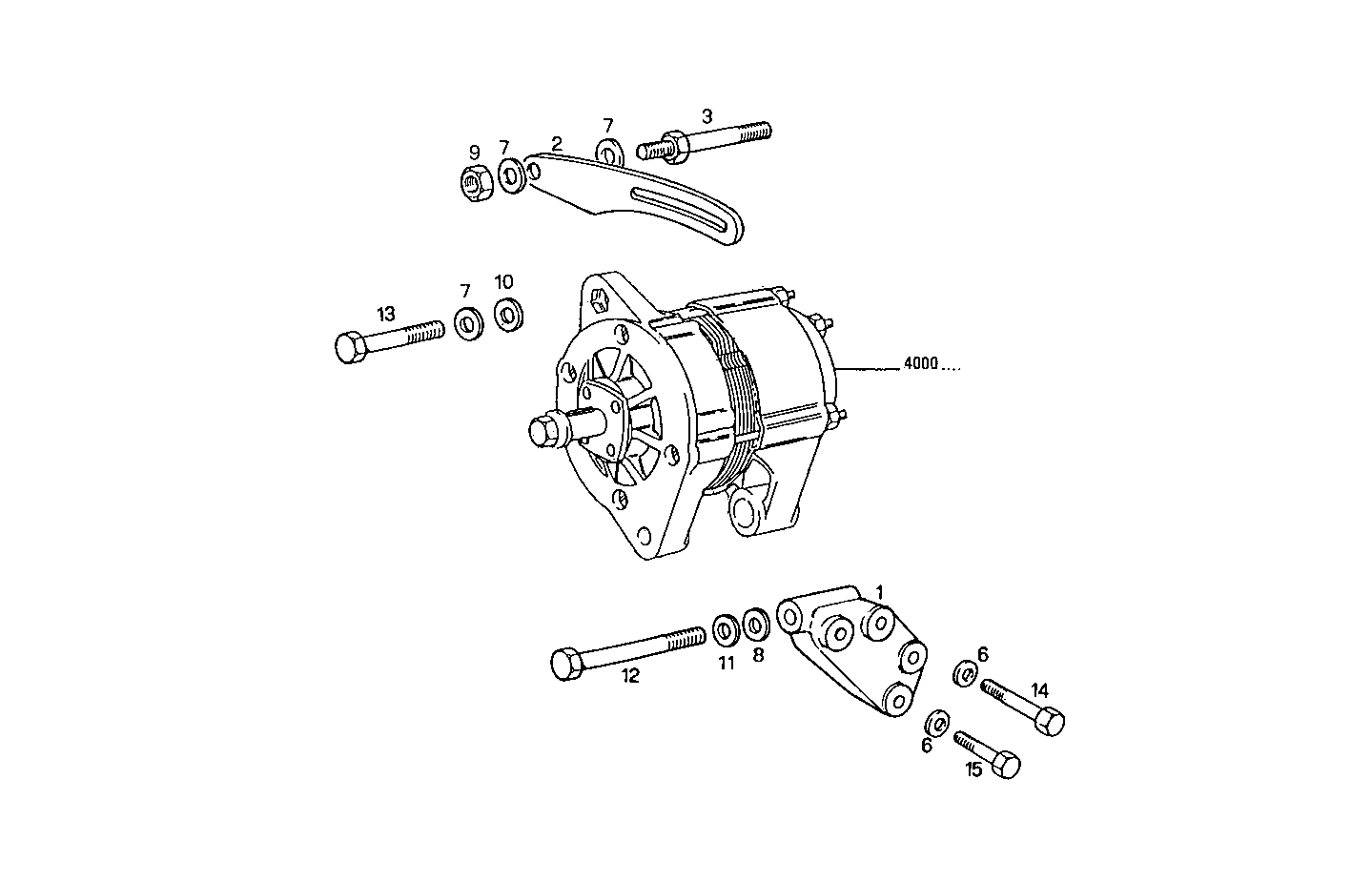

4010.116 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 99443382 | SUPPORT |
| 2 | 4641651 | TURNBUCKLE |
| 3 | 99446968 | SCREW |
| 6 | 17094914 | WASHER 8x16 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 17091174 | SPRING WASHER Ø12X24 MM |
| 9 | 17038221 | HEXAGON NUT M10 |
| 10 | 12646824 | WASHER |
| 11 | 12646924 | WASHER Ø12X28 MM |
| 12 | 15542024 | HEXAGON BOLT M12X1,25X140 MM |
| 13 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 14 | 16606224 | HEXAGON BOLT M8X55 MM |
| 15 | 16606024 | SCREW M8X45 MM |
