8065M12.01

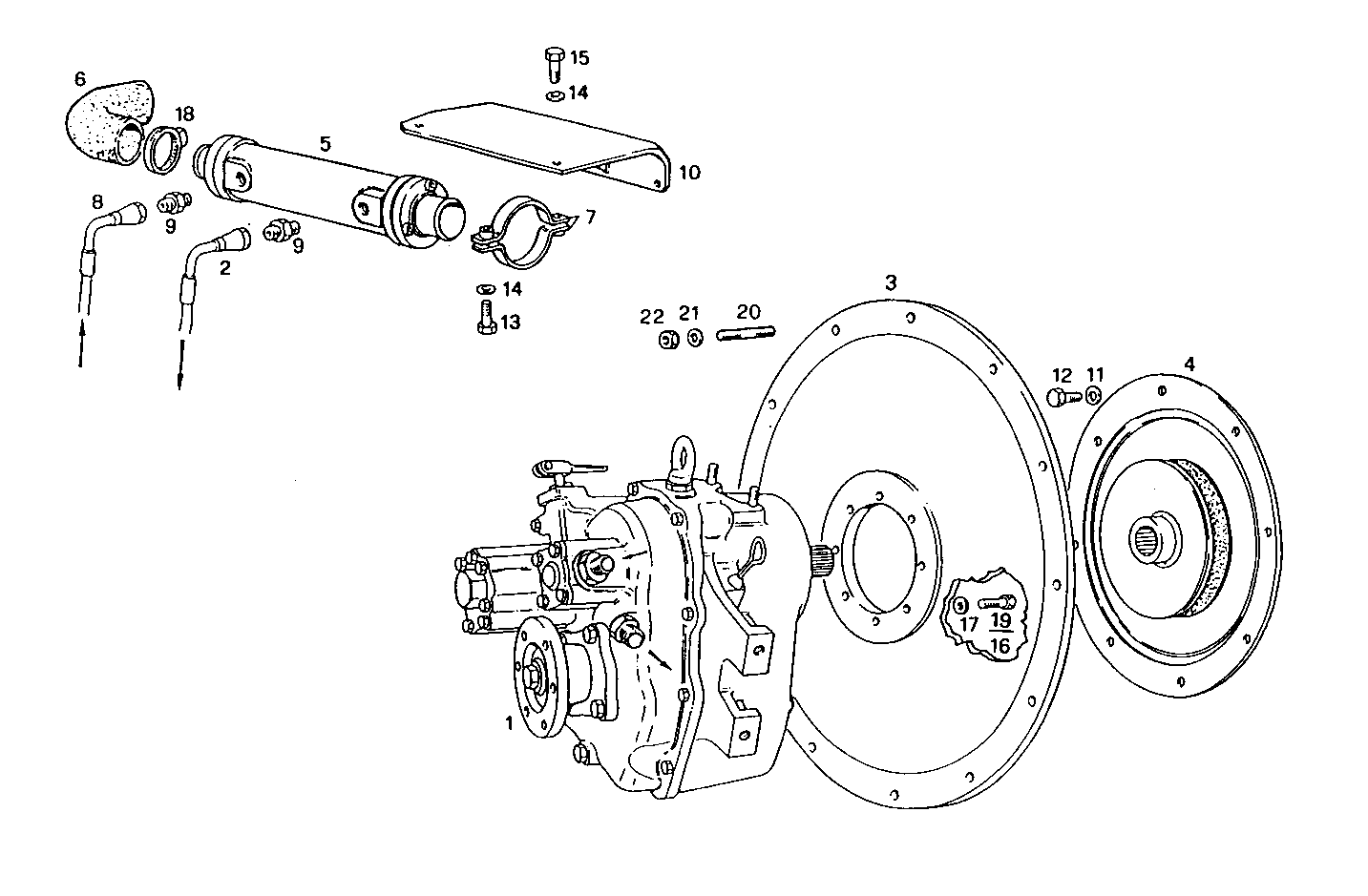

A51650038/01 MARINE GEAR TECHNODRIVE TM 93 - ratio 2.09:1

Iveco/FPT MARINE GEAR TECHNODRIVE TM 93

Item Part number Description
1 8020610 MARINE GEAR 2,09:1
2 8105620 HOSE
3 8019193 FLANGE
4 8019065 FLEXPLATE
5 8016304 OIL/WATER HEAT EXCHANGER ASSY
6 8102099 RUBBER SLEEVE
7 5116798 CLIP ASSY [from 06-93]
8 4935779 HOSE
9 8101073 PIPE SOCKET
10 8016558 RETAINER [from 07-93]
11 17095004 WASHER Ø10X18X2 MM
12 11306921 SCREW M10X1,25X30
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 16605734 HEXAGON BOLT M8X30 MM
16 16610024 SCREW M12X35
17 17091074 WASHER Ø12X24X2,8 MM
18 17764793 CLIP Ø32/50 MM
19 16609924 HEXAGON BOLT M12X30 MM (8.8)
20 13449521 STUD M10X15X25
21 17090174 SPRING WASHER Ø10X20 MM
22 17038221 HEXAGON NUT M10
