8065M12.21

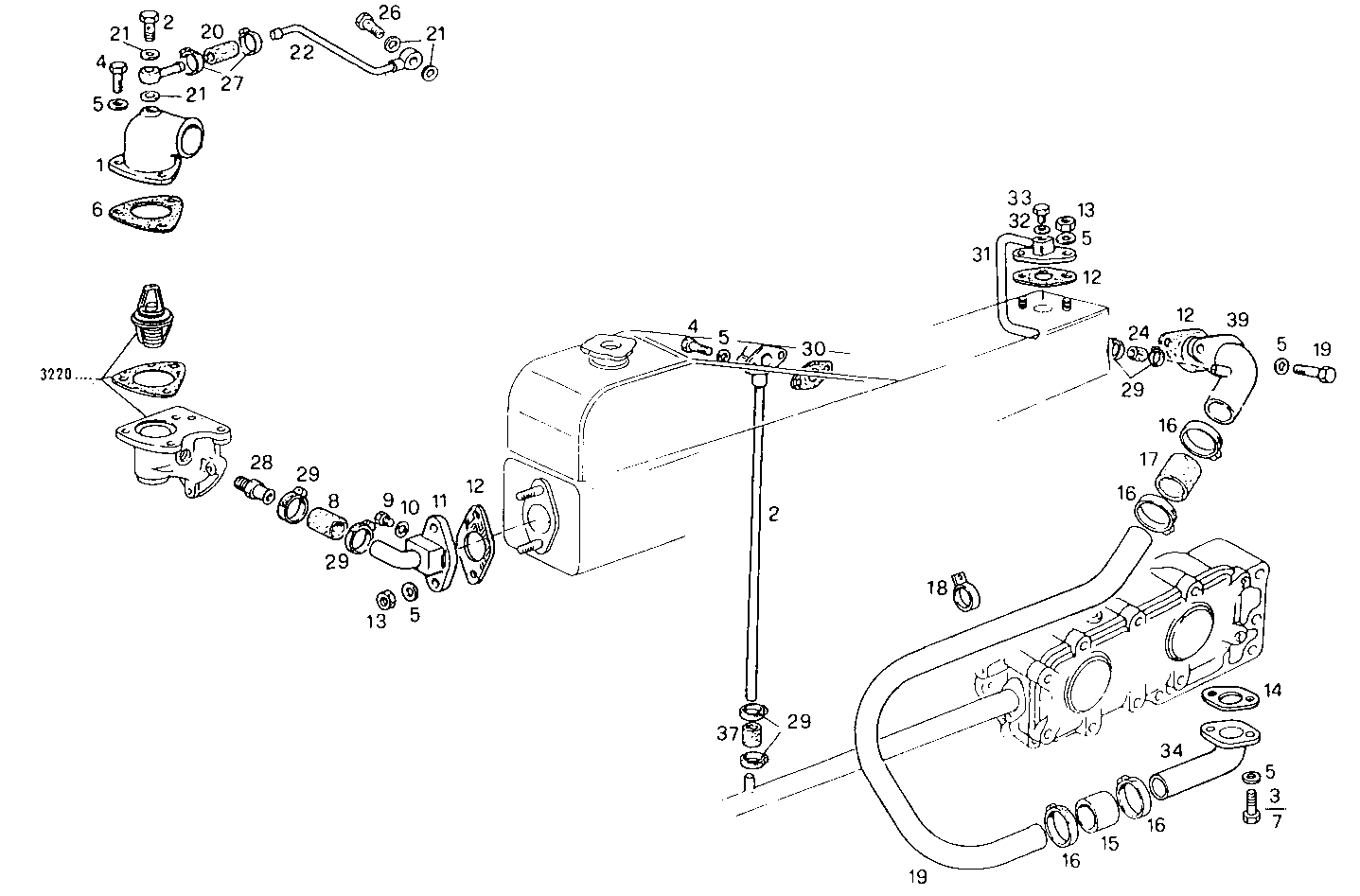

3210.178 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8107202 WATER PIPE
2 8110257 WATER PIPE
3 16606424 HEXAGON BOLT M8X65 MM
4 16605734 HEXAGON BOLT M8X30 MM
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 98420754 FLAT ENGINE GASKET SP=0,5 MM
7 16043721 HEXAGON BOLT M8X28 MM
8 98418717 WATER HOSE Ø18 MM
9 16992340 THREADED PLUG M14X1,5
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 8107731 WATER PIPE
12 8009640 GASKET
13 17037931 HEXAGON NUT M8X1,25
14 4779623 FLAT ENGINE GASKET
15 8017516 WATER HOSE
16 17764793 CLIP Ø32/50 MM
17 4644083 WATER HOSE
18 8027280 CLIP
19 8027037 WATER PIPE
20 4927825 WATER HOSE
21 4858607 WASHER Ø12X17 MM SP=1,5 MM
22 8110256 WATER PIPE
23 4722869 SWIVEL COUPLING
24 17737687 WATER HOSE
26 4864082 BANJO BOLT M12X1,5X25 MM
27 17764593 CLIP Ø20/32 MM
28 4760312 THREADED UNION
29 17764693 CLIP Ø25/40 MM
30 4853970 FLAT ENGINE GASKET
31 8107733 WATER PIPE
32 4858609 WASHER Ø16X22 MM SP=1,5 MM
33 16992440 THREADED PLUG M16X1,5
34 8026668 WATER PIPE
