8065SE00.00

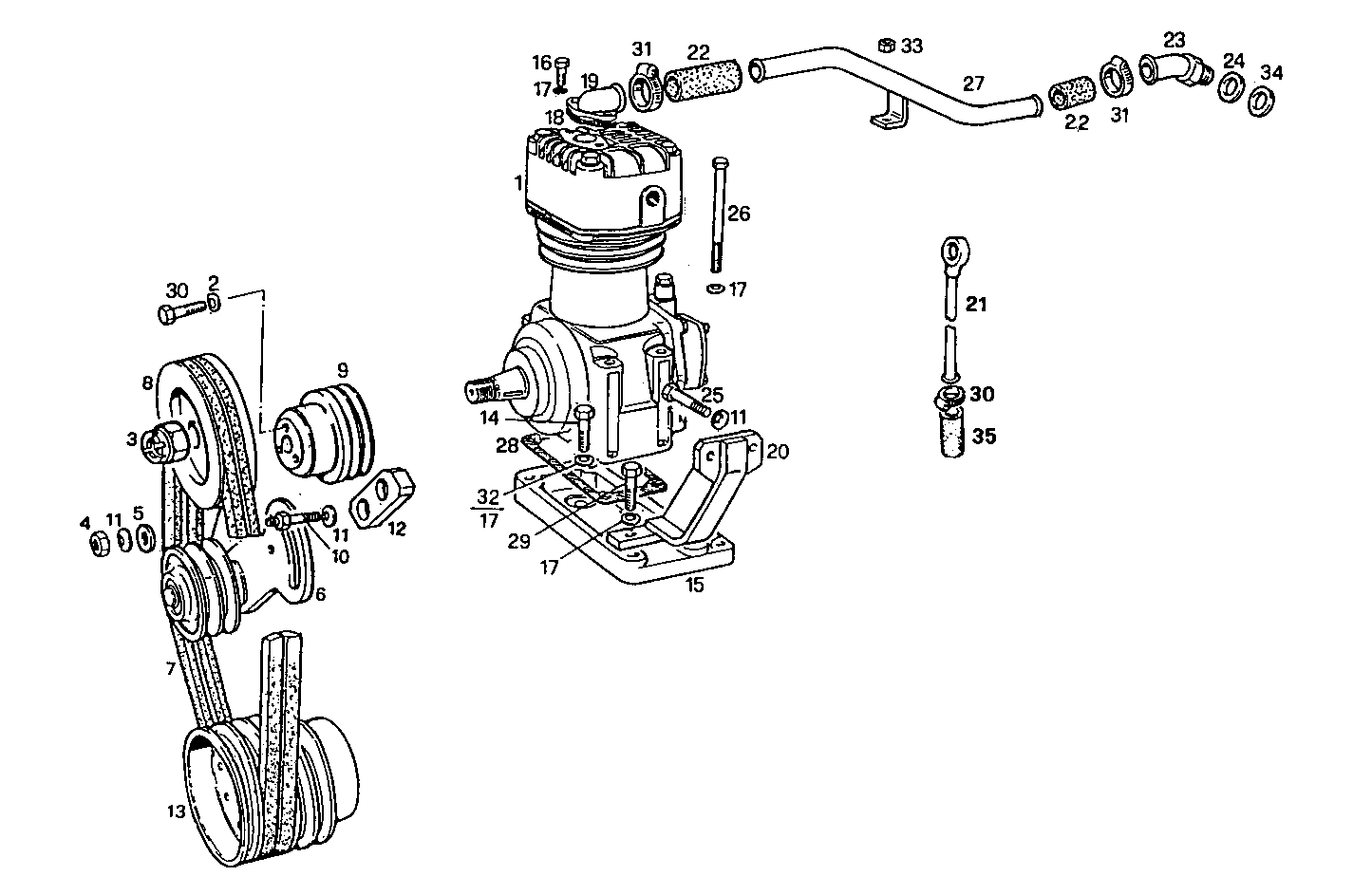

A18040009/01 AIR COMPRESSOR - if hydraulic pump not fitted - 192cc

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 8018324 AIR COMPRESSOR ASSY
2 11198071 SPRING WASHER Ø8X15 SP=1,4 MM
3 17779421 NUT M18X1,5
4 17038221 HEXAGON NUT M10
5 17095104 WASHER Ø10X21X2 MM
6 8104958 BELT TENSIONER
7 8104972 V-BELT KIT
8 8007719 PULLEY
9 8009572 PULLEY
10 8104930 STUD
11 17090174 SPRING WASHER Ø10X20 MM
12 8104931 SPACING BAR
13 8104952 PULLEY
14 16605624 HEXAGON BOLT M8X25 MM (8.8)
15 8104950 PLATE
16 16605524 HEXAGON BOLT M8X20 MM
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 98418772 FLAT ENGINE GASKET
19 8105060 CONNECTOR
20 8104936 RETAINER
21 8100075 WATER PIPE
21 17765092 CLIP Ø60-80 MM
22 4616762 RUBBER SLEEVE
23 4555394 ELBOW COUPLING
24 98474315 GASKET
25 15970621 SCREW M10X1,25X22
26 16606724 HEXAGON BOLT M8X90 MM
27 8027756 AIR PIPE/DUCT
28 98400783 FLAT ENGINE GASKET
29 16043521 SCREW M8X22
30 12174890 CLIP Ø62-82 MM
31 17764592 CLIP Ø20/32 MM
32 98474303 WASHER Ø8X14 MM SP=2,3 MM
34 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
35 12099787 RUBBER SLEEVE
