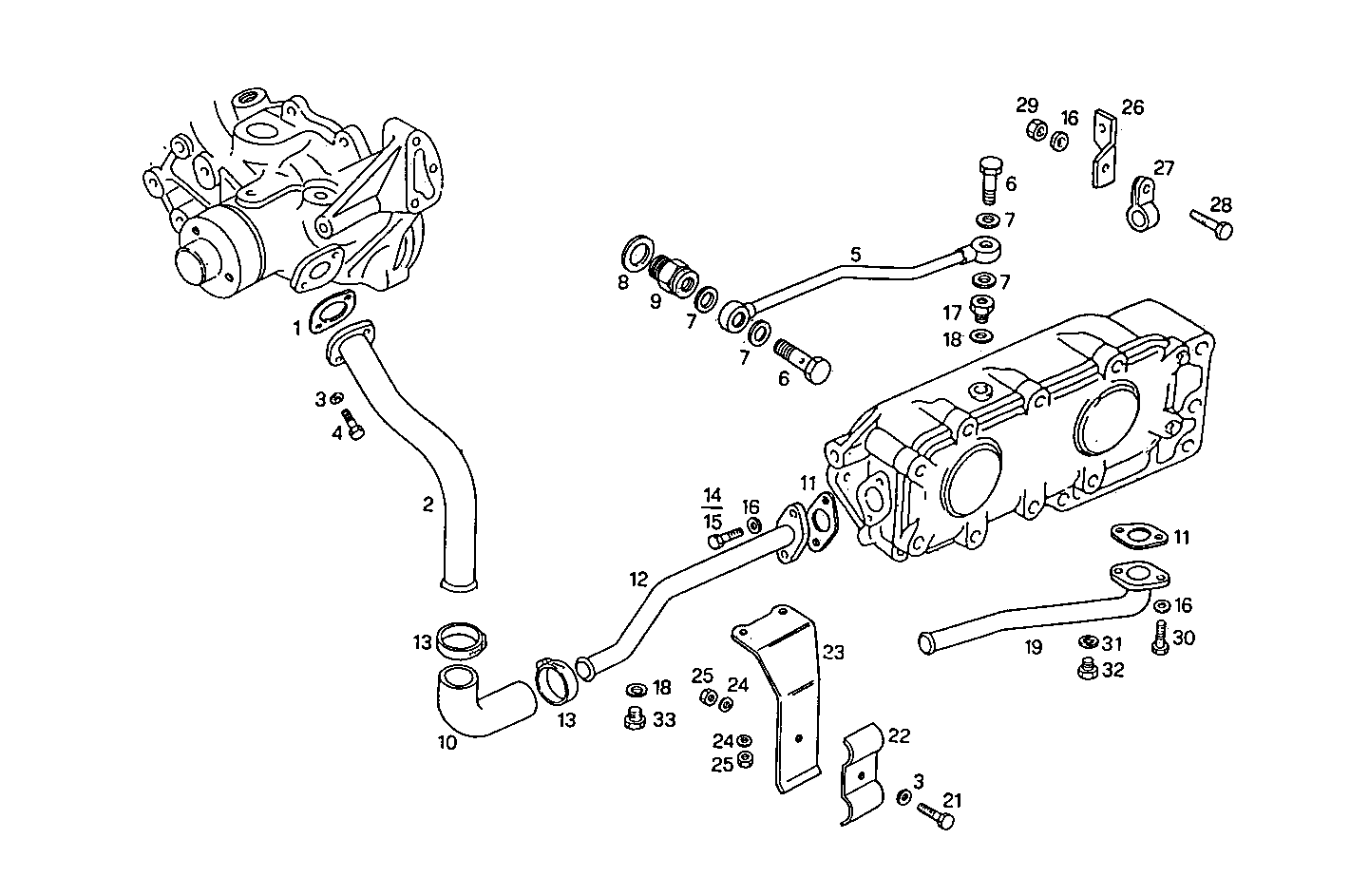

Item |
Part number |
Description |
1 |
4852556 |
FLAT ENGINE GASKET |
2 |
500332764 |
WATER PIPE |
3 |
17094914 |
WASHER 8x16 |
4 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
5 |
98445356 |
WATER PIPE |
6 |
4864080 |
SCREW CONNECTOR M10X1,25 |
7 |
4858606 |
GASKET Ø10X14X1 MM |
8 |
16508460 |
WASHER 22x27x1,5 |
9 |
98445134 |
THREADED UNION SP=7 MM |
10 |
500331119 |
WATER HOSE |
11 |
4779623 |
FLAT ENGINE GASKET |
12 |
8026152 |
WATER PIPE |
13 |
17764892 |
PIPE CLIP Ø40-60 MM |
14 |
16606424 |
HEXAGON BOLT M8X65 MM |
15 |
16043724 |
HEXAGON BOLT M8X28 MM (8.8) |
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
17 |
98446813 |
THREADED UNION |
18 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
19 |
8024278 |
WATER PIPE |
21 |
16606224 |
HEXAGON BOLT M8X55 MM |
22 |
4801128 |
RETAINER |
23 |
500333015 |
RETAINER |
24 |
4598124 |
WASHER |
25 |
17037931 |
HEXAGON NUT M8X1,25 |
26 |
4795309 |
RETAINER |
27 |
10449890 |
PIPE CLIP Ø53 MM |
28 |
16605424 |
SCREW M8X16 MM (8.8) |
29 |
17042531 |
HEXAGON NUT M8 |
30 |
16043521 |
SCREW M8X22 |
32 |
16992111 |
THREADED PLUG M10X1 |
33 |
16992440 |
THREADED PLUG M16X1,5 |
