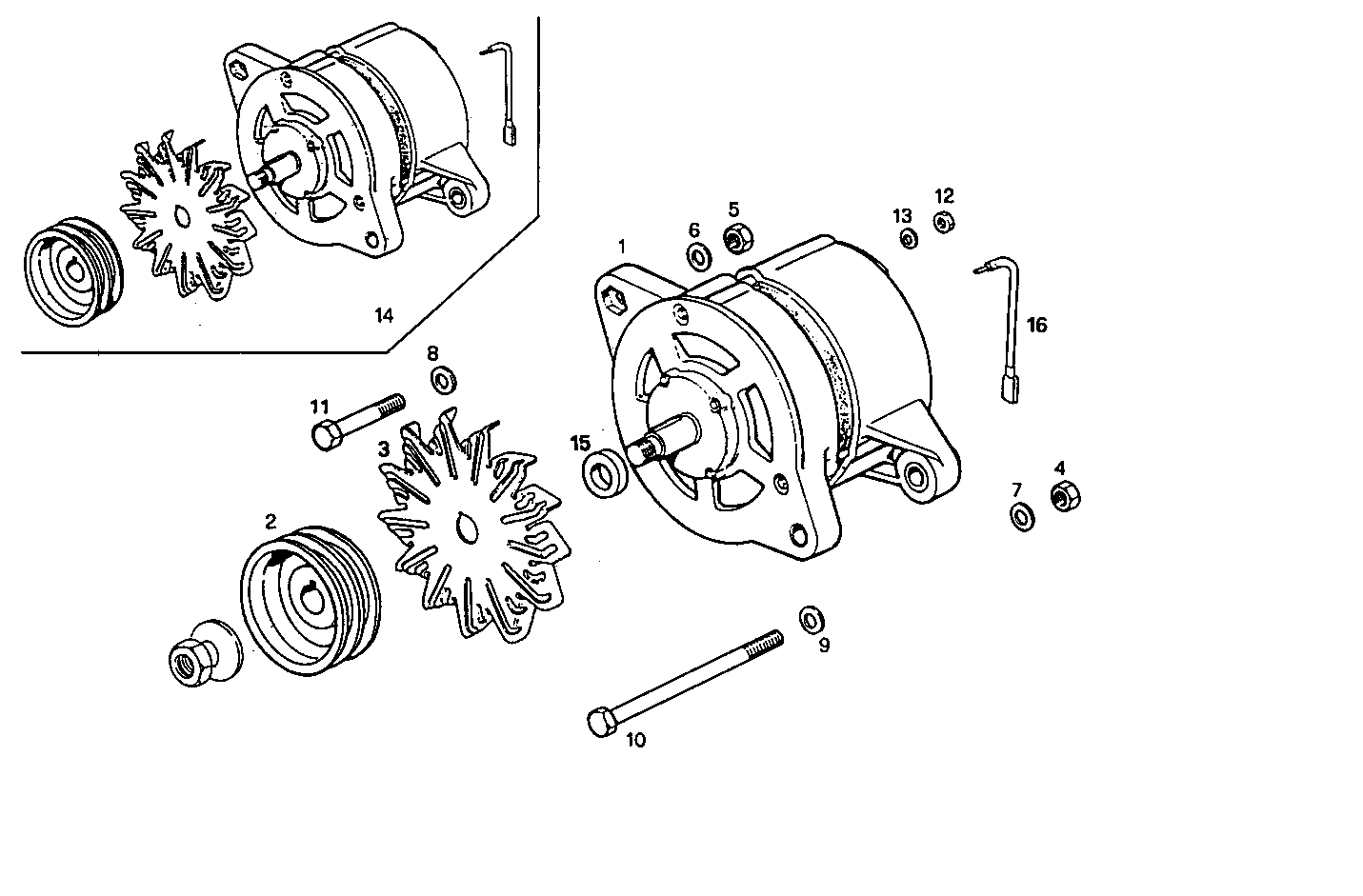

Item |
Part number |
Description |
1 |
4808511 |
ALTERNATOR ASSY MARELLI - 12V |
2 |
8027417 |
PULLEY |
3 |
4717026 |
GENERATOR FAN MARELLI |
4 |
17038621 |
NUT M12 |
5 |
17038221 |
HEXAGON NUT M10 |
6 |
17090174 |
SPRING WASHER Ø10X20 MM |
7 |
17091074 |
WASHER Ø12X24X2,8 MM |
8 |
17095104 |
WASHER Ø10X21X2 MM |
9 |
17095304 |
WASHER Ø12X24 MM |
10 |
15541821 |
HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
11 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
12 |
17037821 |
HEXAGON NUT M6X1 |
13 |
17088474 |
WASHER Ø6X12 MM |
14 |
8107968 |
ALTERNATOR ASSY |
15 |
4478391 |
SPACING BAR |
16 |
8105654 |
WIRE/CABLE |
