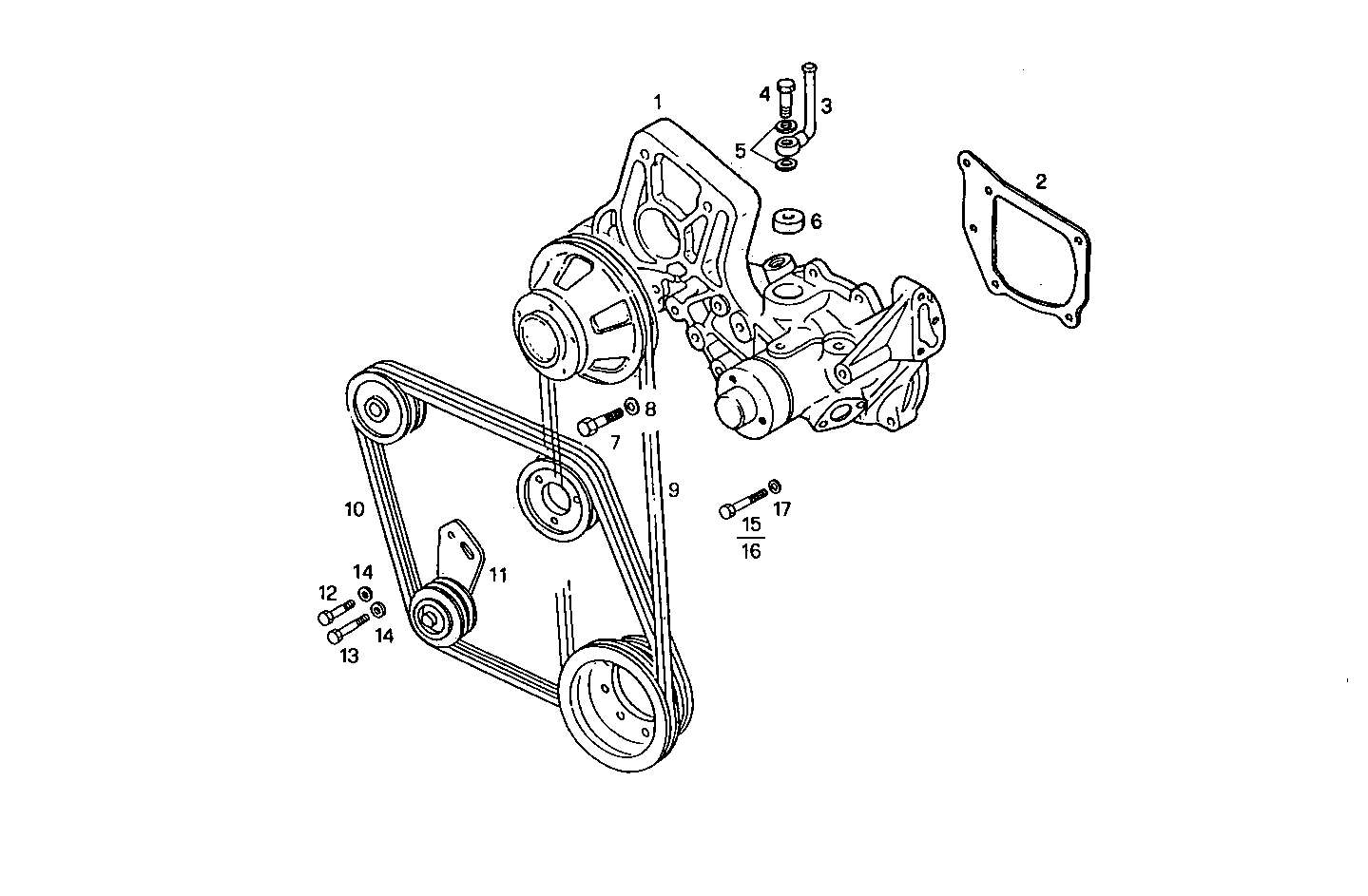

Item |
Part number |
Description |
1 |
98415831 |
WATER PUMP ASSY |
2 |
4842822 |
FLAT ENGINE GASKET |
3 |
8016621 |
WATER PIPE |
4 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
5 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
6 |
8013358 |
PLUG |
7 |
16045721 |
HEXAGON BOLT M8X125 MM |
8 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
9 |
98454857 |
V-BELT |
10 |
4838851 |
V-BELT KIT |
11 |
98429847 |
BELT TENSIONER |
12 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
13 |
11227921 |
HEXAGON BOLT M10X28 MM |
14 |
17793904 |
WASHER Ø10X25 MM SP=1,5 |
15 |
15971921 |
HEXAGON BOLT M10X105 MM |
16 |
15972321 |
HEXAGON BOLT M10X125 MM |
17 |
17090174 |
SPRING WASHER Ø10X20 MM |
