8065SRE10.00

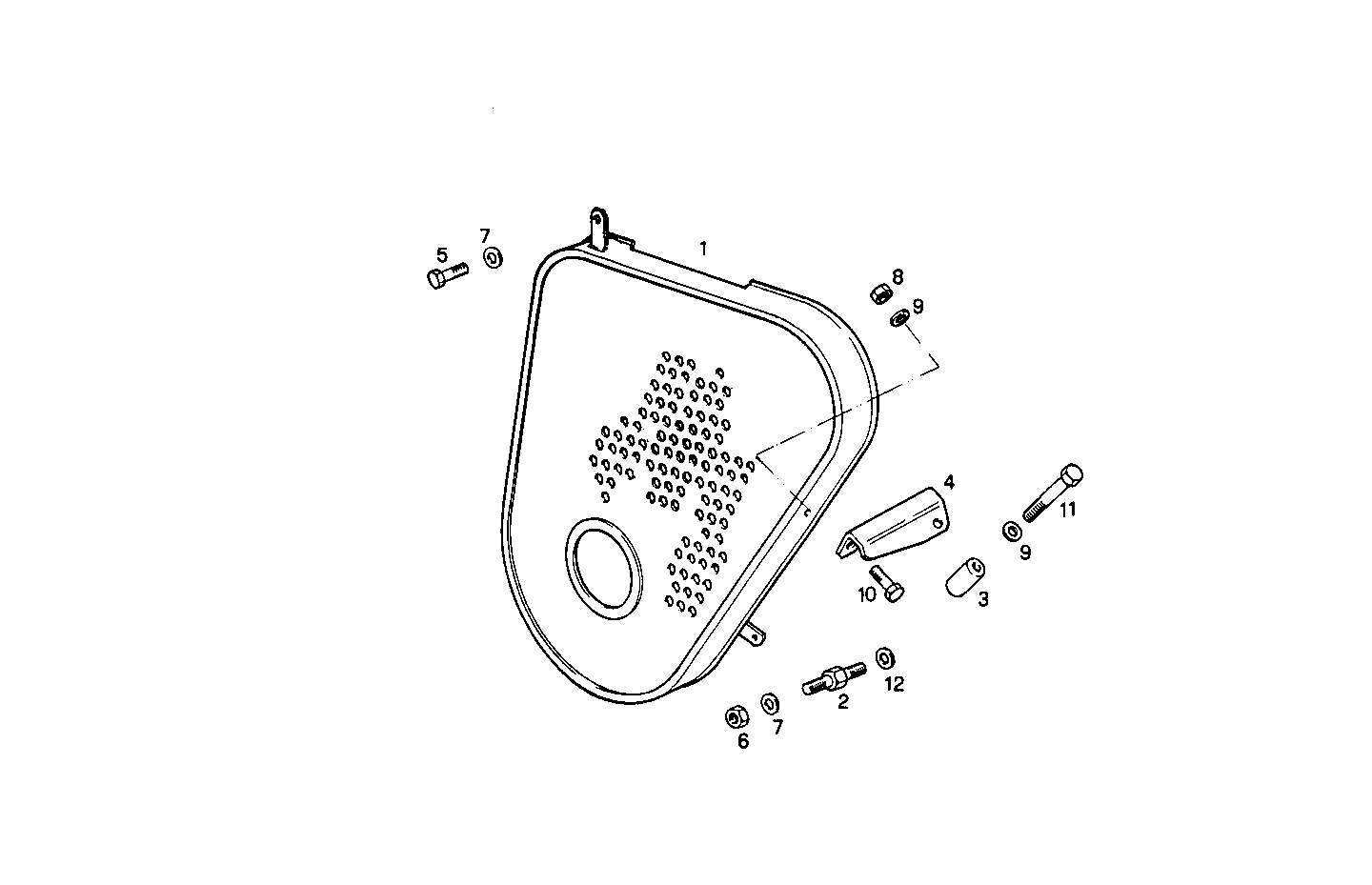

A48020021 GUARD - for pulley/belts
Item | Part number | Description |
---|---|---|
1 | 8017940 | PROTECTION |
2 | 8100343 | SPACING BAR |
3 | 8010593 | SPACING BAR |
4 | 8109407 | RETAINER |
5 | 15970321 | HEXAGON BOLT M10X16 MM |
6 | 17038221 | HEXAGON NUT M10 |
7 | 17090174 | SPRING WASHER Ø10X20 MM |
8 | 17037931 | HEXAGON NUT M8X1,25 |
9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
10 | 16605424 | SCREW M8X16 MM (8.8) |
11 | 16606124 | HEXAGON BOLT M8X50 MM |
12 | 17092174 | SPRING WASHER Ø16X32X3,4 |
