8065SRE10.00A801

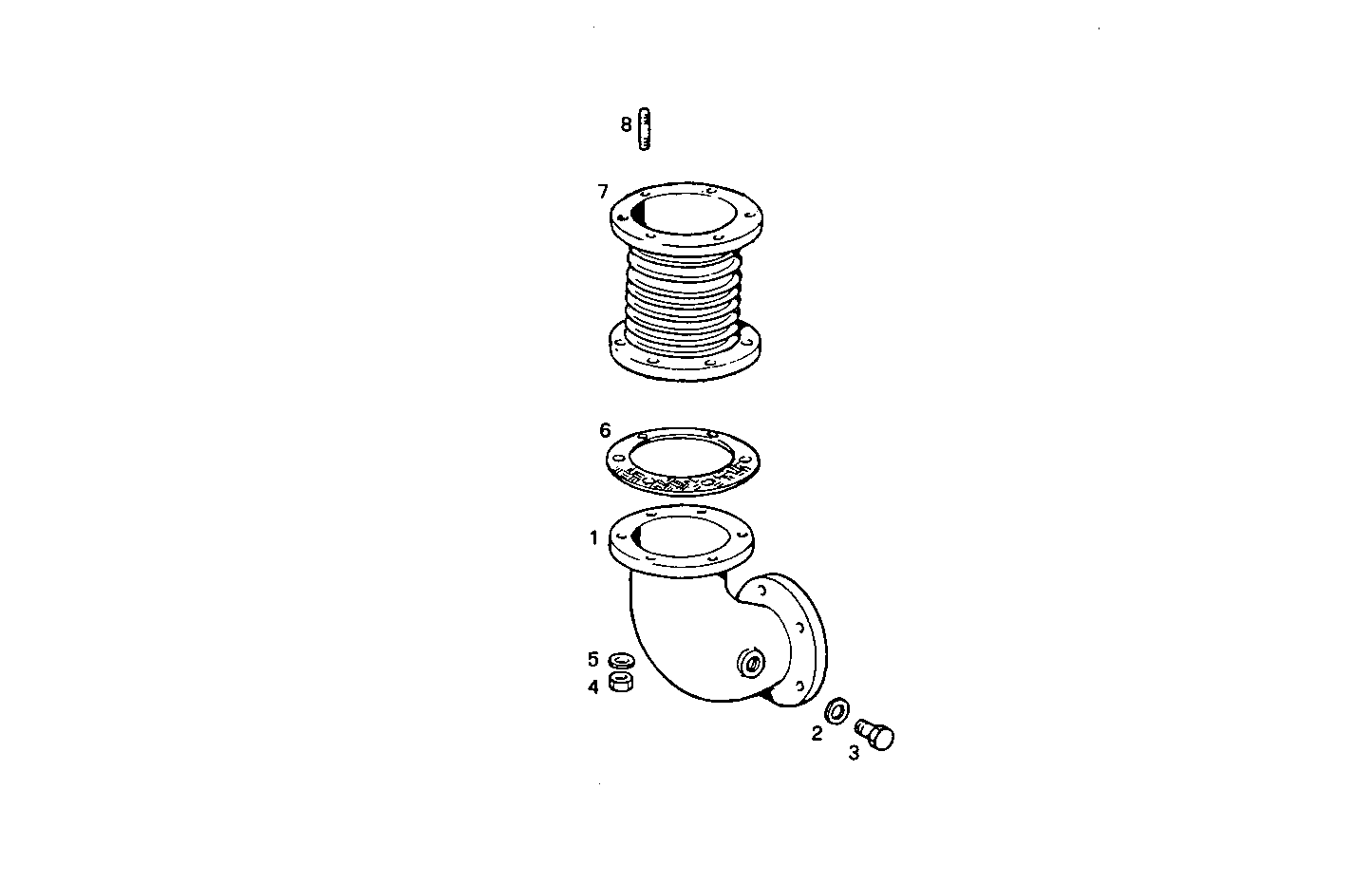

A40010016 TURNING EXHAUST ELBOW WITH BELLOWS

Iveco/FPT TURNING EXHAUST ELBOW WITH BELLOWS

Item Part number Description
1 8107751 EXHAUST ELBOW
2 4858607 WASHER Ø12X17 MM SP=1,5 MM
3 16992211 THREADED PLUG M12X1,5
4 17037931 HEXAGON NUT M8X1,25
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 8009606 GASKET
7 4935378 EXHAUST BELLOWS
8 13516921 STUD M8X12X22 MM
