8065SRE25.00

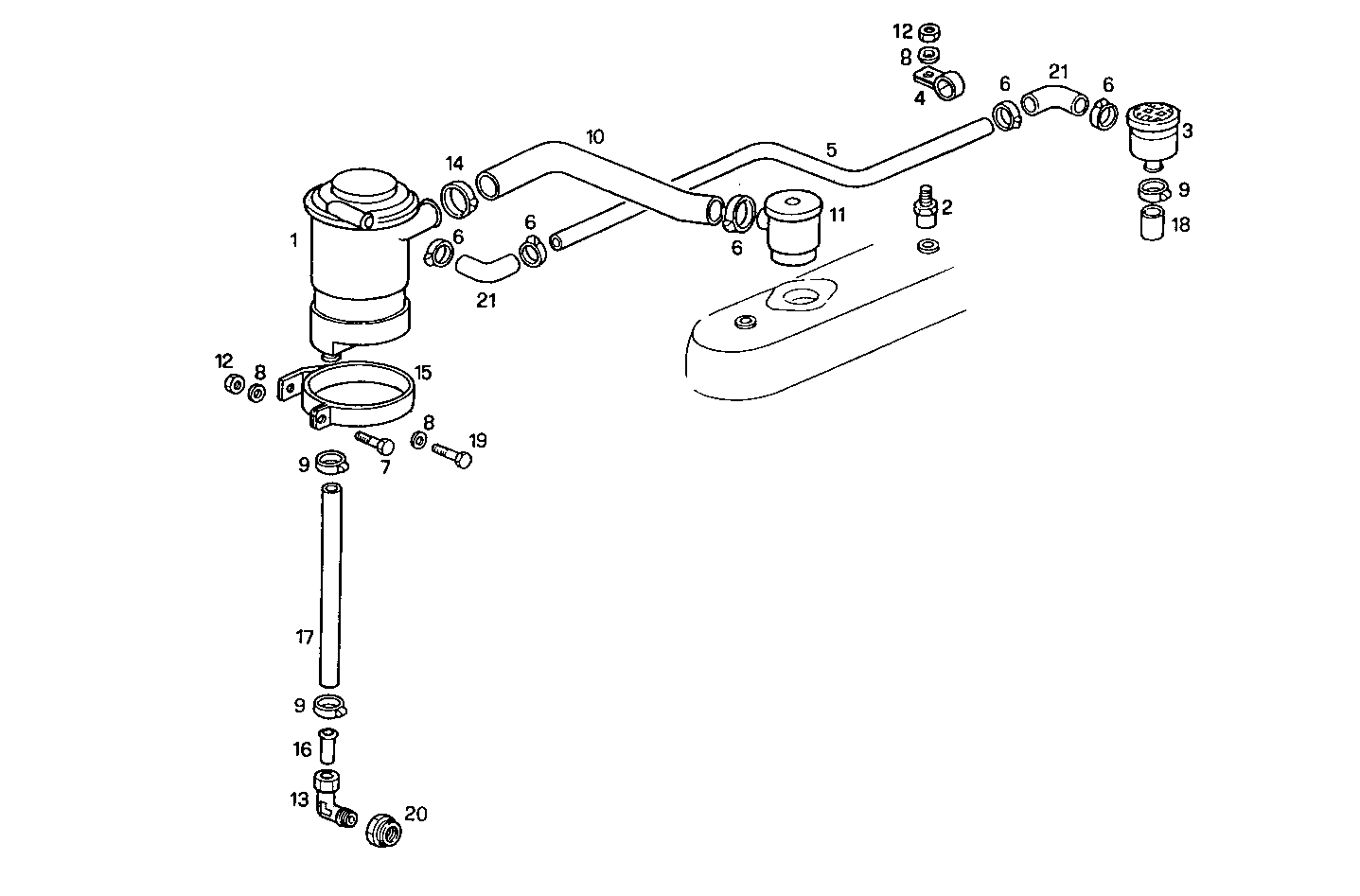

0450.165 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4858569 | BREATHER |
| 2 | 8009967 | NUT |
| 3 | 4810557 | BYPASS VALVE |
| 4 | 4033229 | CLIP |
| 5 | 8024923 | AIR PIPE/DUCT |
| 6 | 17764592 | CLIP Ø20/32 MM |
| 7 | 16605524 | HEXAGON BOLT M8X20 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 18088391 | CLIP Ø16/25 MM |
| 10 | 8021614 | RUBBER SLEEVE |
| 11 | 4812047 | BREATHER |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
| 13 | 8110268 | PIPE SOCKET M16X1.5 |
| 14 | 17764691 | CLIP Ø25/40 MM |
| 15 | 8021600 | RETAINER |
| 16 | 8111799 | BREATHER |
| 17 | 8089135 | AIR HOSE |
| 18 | 8016336 | OIL HOSE |
| 19 | 16605424 | SCREW M8X16 MM (8.8) |
| 20 | 8008802 | PIPE SOCKET M32X1,5/M16X1,5 |
| 21 | 8108085 | RUBBER SLEEVE |
