8065SRE25.00

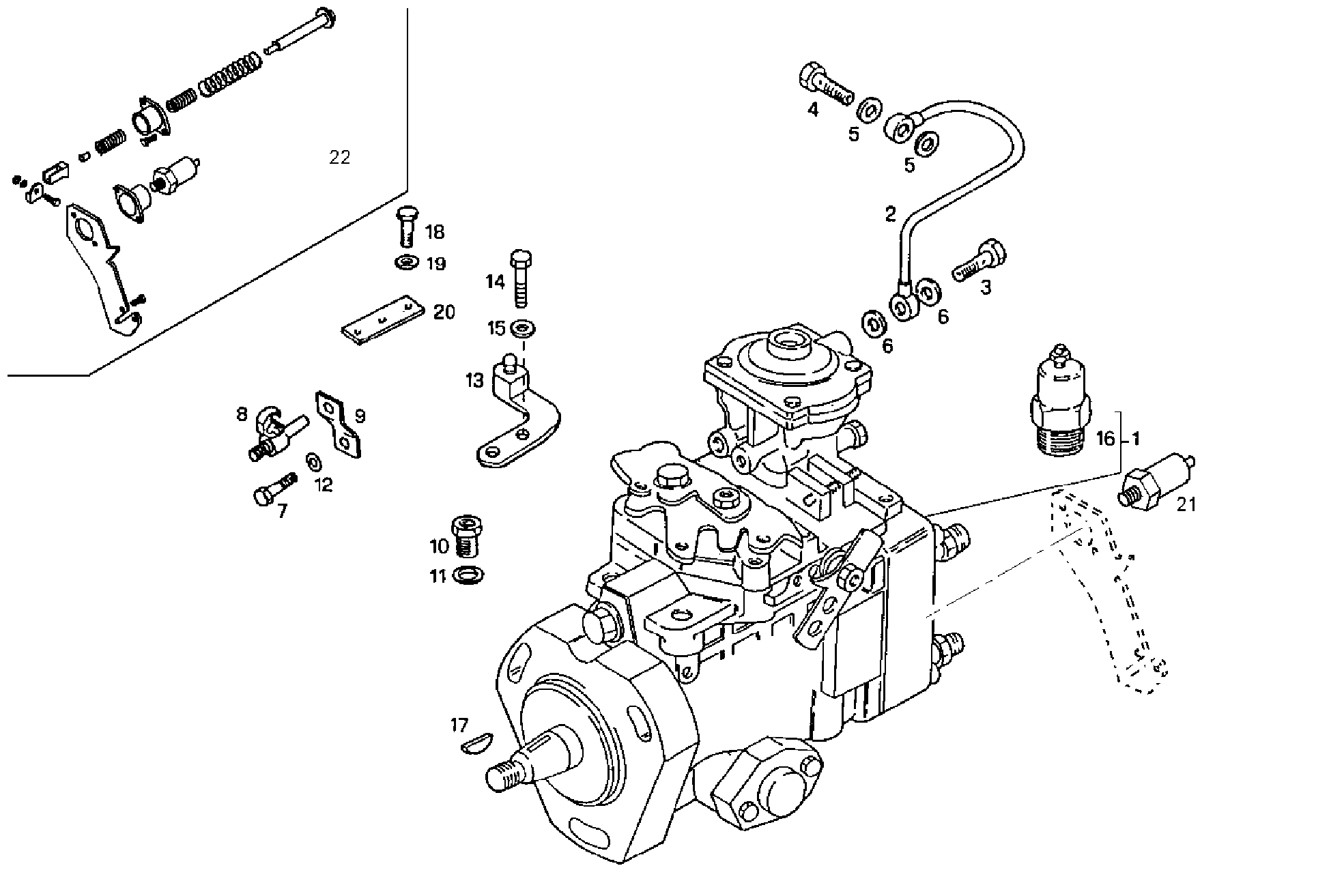

1400.292 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 500326169 DISTRIB.INJ.PUMP ASSY
2 98494407 FUEL LINE
3 4753761 SCREW CONNECTOR
4 11903817 SCREW CONNECTOR M10X1,25X19 MM
5 10279460 SEAL GASKET Ø10X16 MM SP=0,5
6 10262760 SEAL GASKET Ø8,2 MM
7 15970521 HEXAGON BOLT M10X20 MM
8 17868280 SPRING CLAMP L=30 MM
9 99481827 FASTENING BRACKET
10 4802434 THREADED UNION M12X1,5
11 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 98445678 LEVER
14 16603624 HEXAGON BOLT M6X16 MM (8.8)
15 17798174 SPRING WASHER Ø6,1X11,8 MM
16 8100253 ELECTROVALVE 12V
17 10205820 KEY 4X6,5 MM
19 17088474 WASHER Ø6X12 MM
20 8024920 RETAINER
21 93160151 TRANSMITTER KSB
22 8094611 SETTING DEVICE
