8065SRU26.04A581

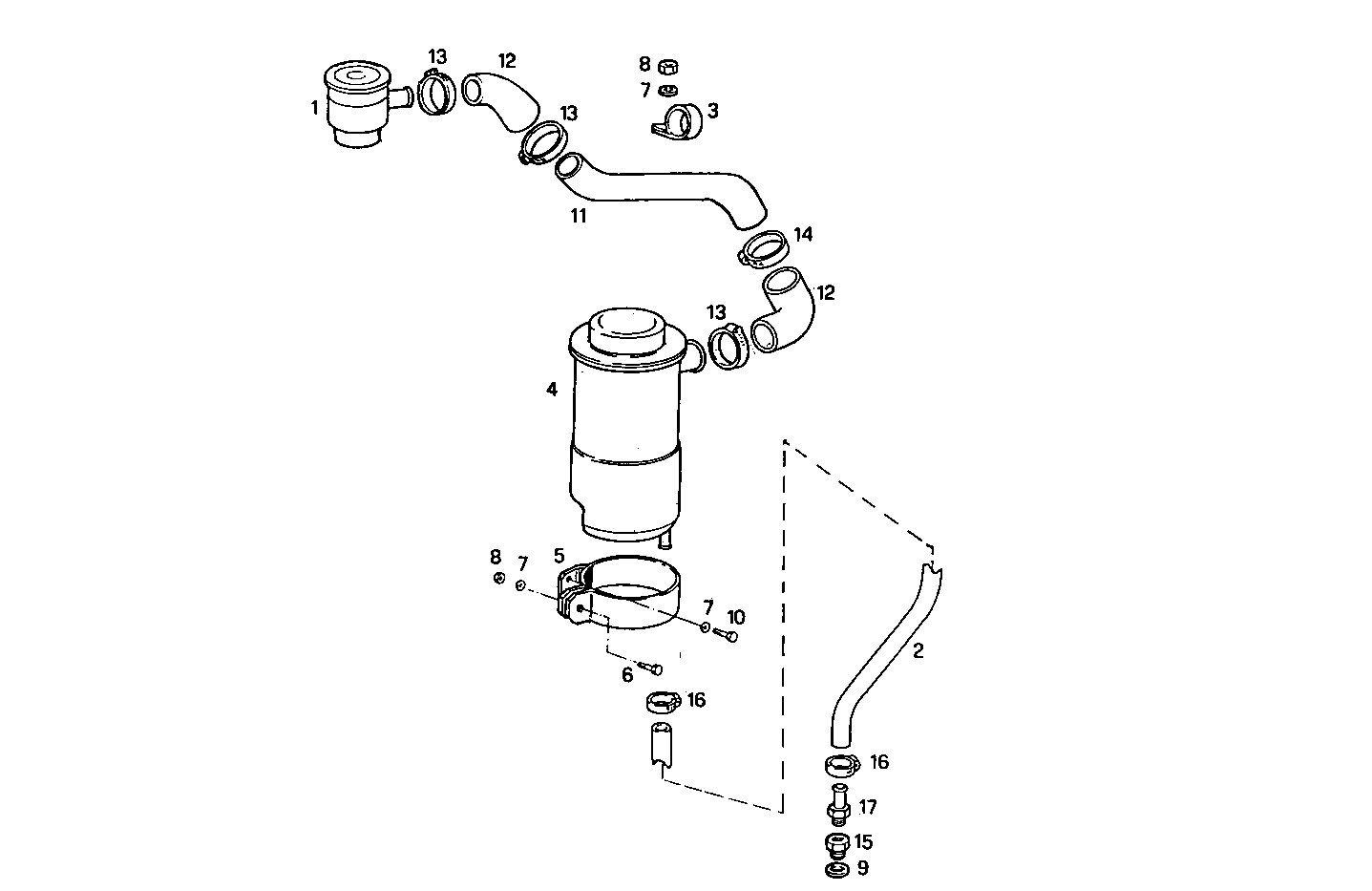

0450.116 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4812047 BREATHER
2 8016938 OIL HOSE L=670 MM
3 4033229 CLIP
4 4858569 BREATHER
5 8021600 RETAINER
6 16605524 HEXAGON BOLT M8X20 MM
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 17037931 HEXAGON NUT M8X1,25
9 10265060 SEAL GASKET Ø32X38 MM SP=1,5 MM
10 16605424 SCREW M8X16 MM (8.8)
11 8021614 RUBBER SLEEVE
12 8108085 RUBBER SLEEVE
13 17764592 CLIP Ø20/32 MM
14 17764691 CLIP Ø25/40 MM
15 8008802 PIPE SOCKET M32X1,5/M16X1,5
16 18088391 CLIP Ø16/25 MM
17 4616630 THREADED UNION
