8065SRU26.04A581

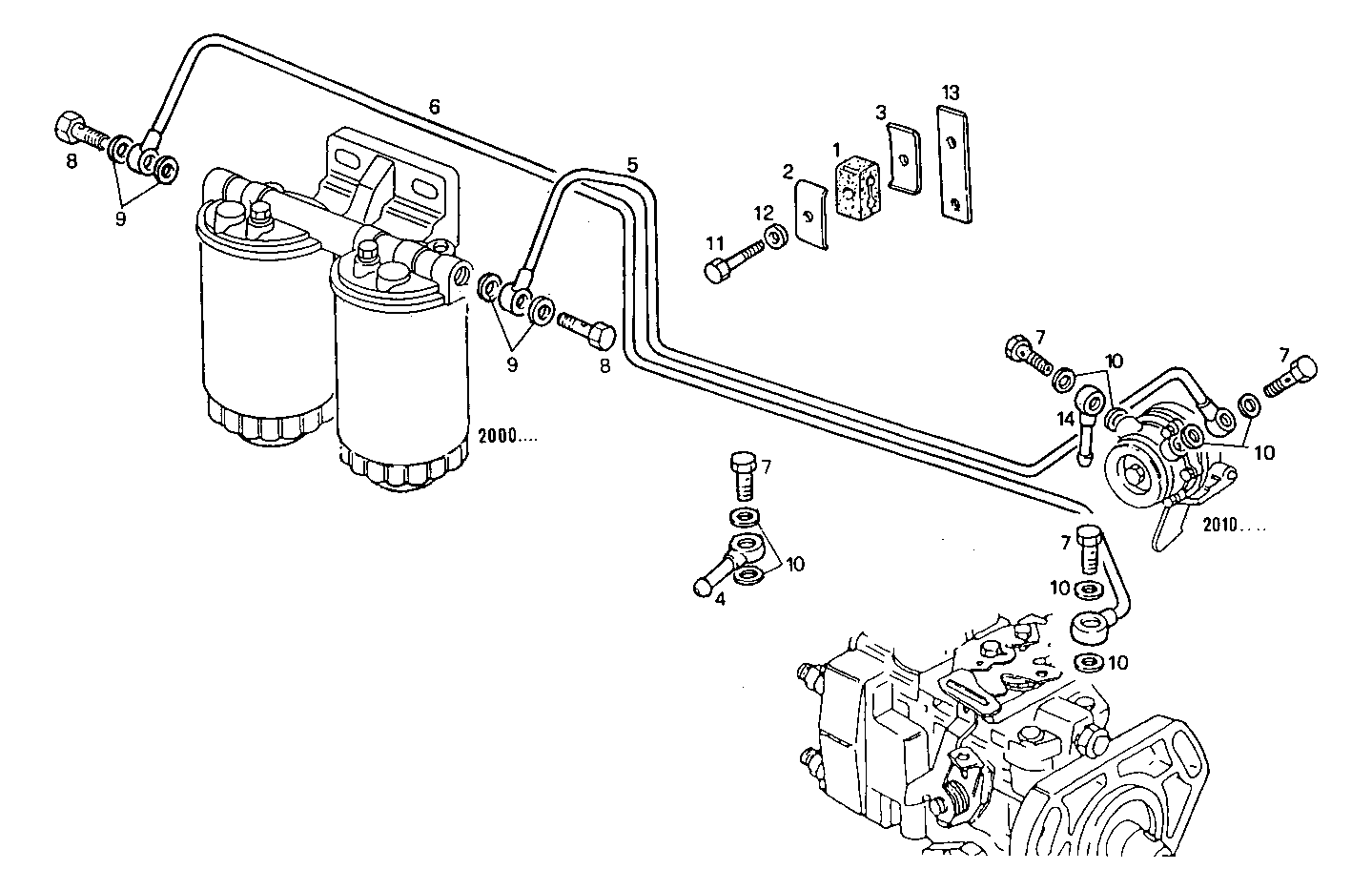

2030.125 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 4659217 DOWEL
2 4659218 CLIP
3 4659219 PLATE
4 98416591 SWIVEL COUPLING
5 8026588 FUEL LINE
6 8026589 FUEL LINE
7 4864082 BANJO BOLT M12X1,5X25 MM
8 4864083 SCREW CONNECTOR M14X1,5X30 MM
9 4858608 SEAL GASKET dia.14x19,5x1,5
10 4858607 WASHER Ø12X17 MM SP=1,5 MM
11 16602324 HEXAGON BOLT M5X25 MM
12 17798074 WASHER Ø5X9,2X1 MM
13 500334222 FASTENING BRACKET Ø56,52 MM SP=5,33 MM
14 98417520 PIPE SOCKET
