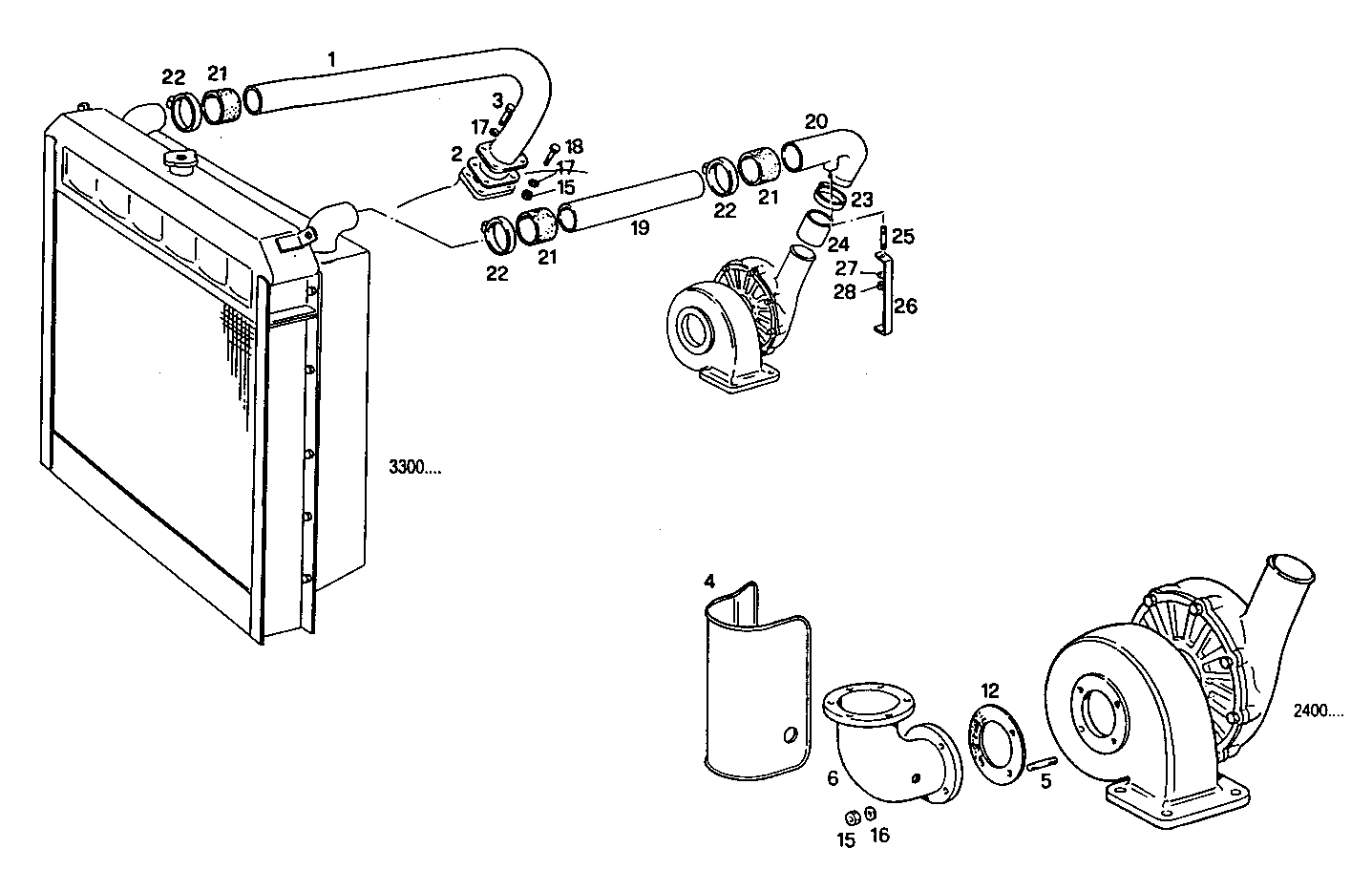

| Item |
Part number |
Description |
|
1 |
8022100 |
AIR PIPE/DUCT [from 09-1994] |
|
2 |
98400790 |
FLAT ENGINE GASKET |
|
3 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
4 |
8008237 |
PROTECTION |
|
5 |
16729424 |
STUD M8X1,25X25 |
|
6 |
8105001 |
EXHAUST ELBOW |
|
12 |
4734747 |
GASKET |
|
15 |
17037931 |
HEXAGON NUT M8X1,25 |
|
16 |
17089471 |
SPRING WASHER Ø16X8 MM SP=1,4 MM |
|
17 |
17094914 |
WASHER 8x16 |
|
18 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
19 |
8018708 |
AIR PIPE/DUCT [from 09-1994] |
|
20 |
8008230 |
AIR MANIFOLD [up to 09-1994] |
|
21 |
8107383 |
RUBBER SLEEVE Ø60 MM |
|
22 |
8019910 |
CLIP |
|
23 |
4830090 |
CLIP |
|
24 |
98421377 |
RUBBER SLEEVE Ø51 MM |
|
25 |
13449221 |
STUD M10X15X18 [up to 09-1994] |
|
26 |
8008232 |
RETAINER [up to 09-1994] |
|
27 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
28 |
17038221 |
HEXAGON NUT M10 |
