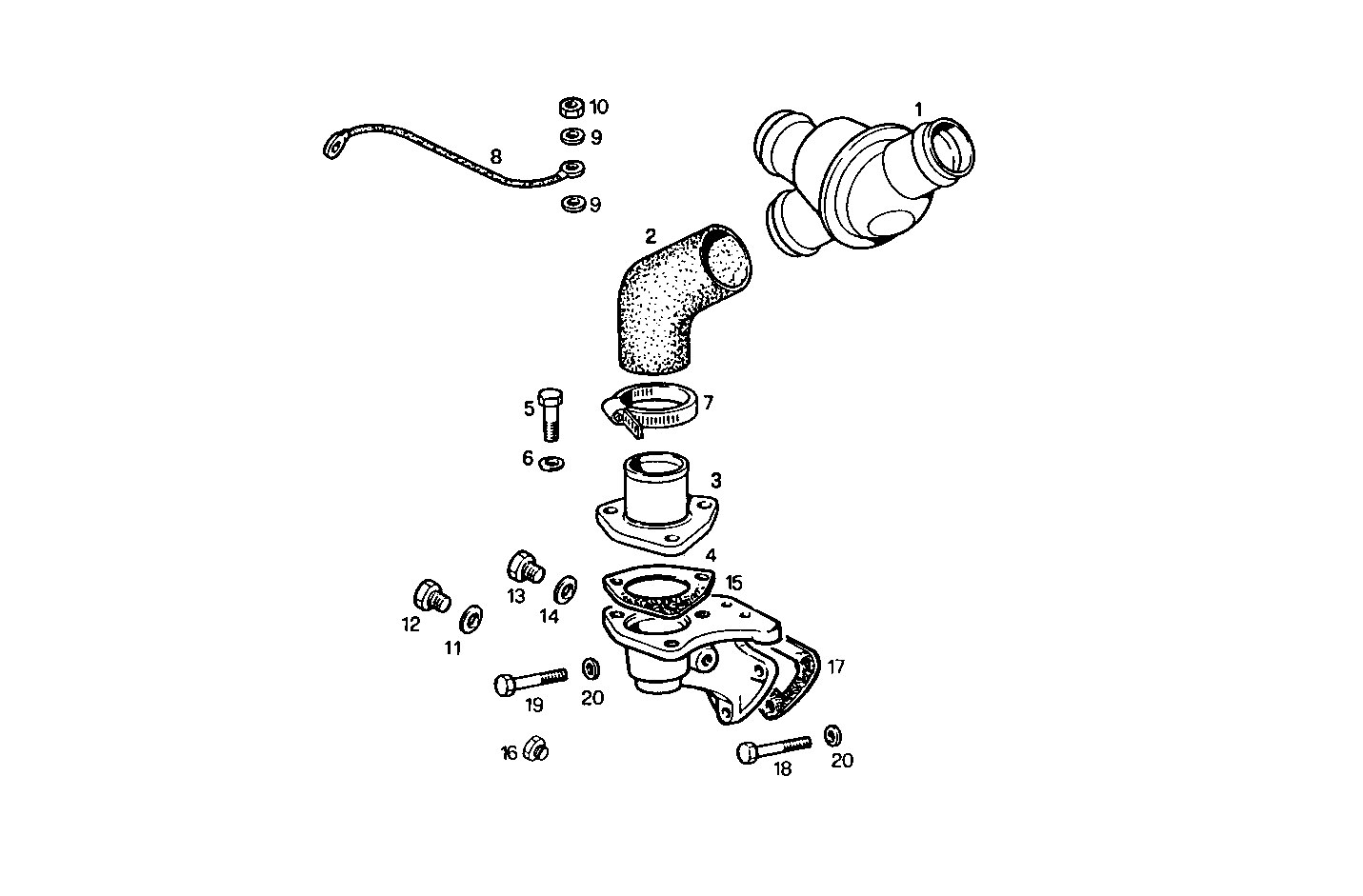

3220.087 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 8819078 THERMOSTAT
2 4787630 RUBBER SLEEVE
3 4661543 COVER
4 98417863 GASKET
5 16605624 HEXAGON BOLT M8X25 MM (8.8)
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17764891 CLIP Ø40/60 MM
8 8113786 ENGINE HARNESS GND
9 17094504 WASHER Ø5,3X10 MM
10 17037721 NUT M5X0,8
11 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
12 10305011 PLUG
13 16992411 THREADED PLUG M16X1,5
14 4858609 WASHER Ø16X22 MM SP=1,5 MM
15 8013365 THERMOSTAT BODY
16 8009871 PLUG
17 98400784 GASKET
18 15972421 HEXAGON BOLT M10X1,25X130 MM
19 11234721 HEXAGON BOLT M10X1,25X45 MM
20 17090174 SPRING WASHER Ø10X20 MM
