8065SU00.00

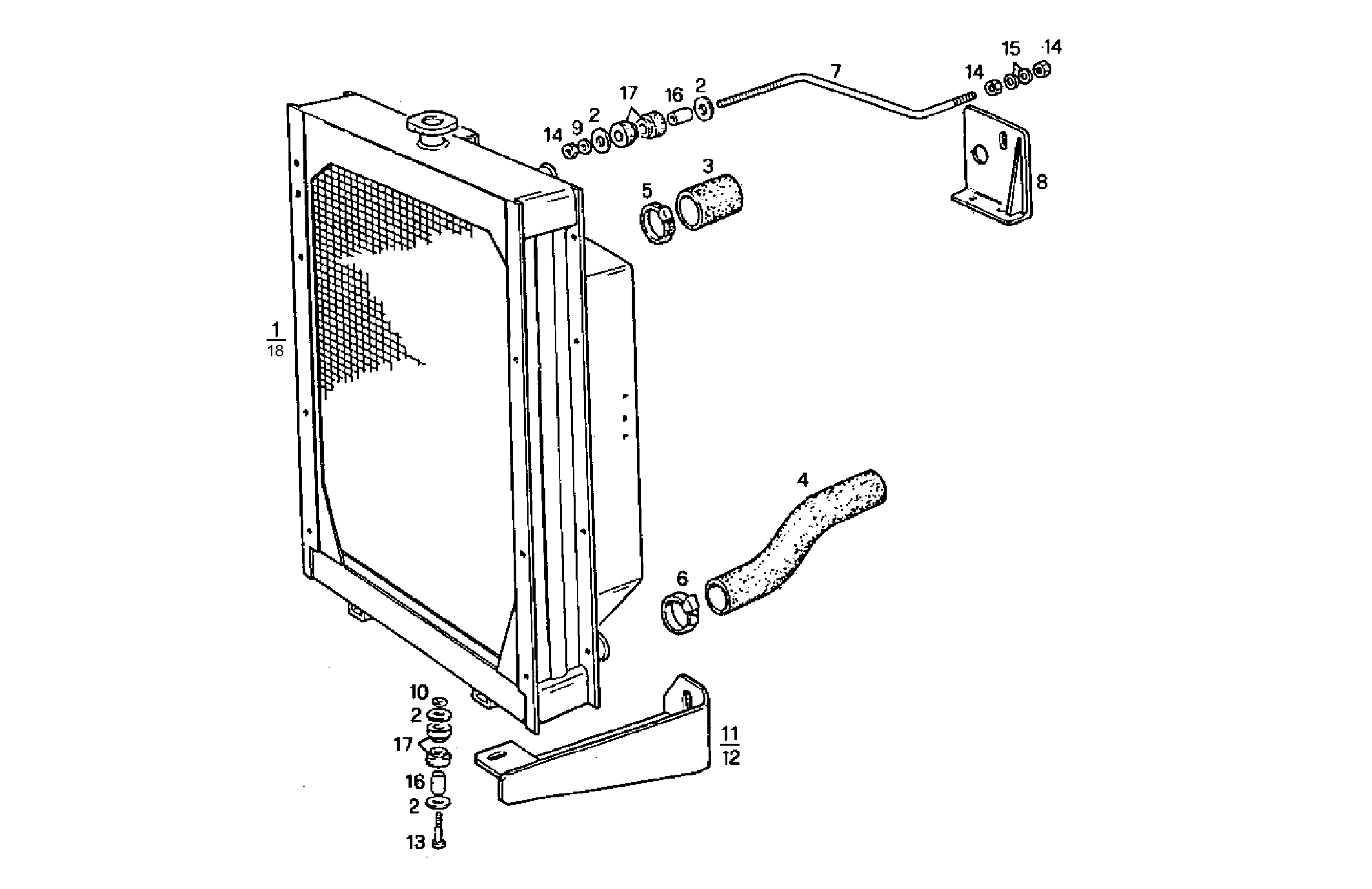

A22010056 OVERSIZE RADIATOR FOR SETTING TILL MAX POWER - if compressor not fitted

Iveco/FPT OVERSIZE RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8025677 WATER RADIATOR OPT.
2 741570 WASHER Ø10X17 MM SP=2,3
3 8025678 WATER HOSE
4 8025615 WATER HOSE
5 17764891 CLIP Ø40/60 MM
6 17764791 CLIP Ø32/50 MM
7 8020421 TIE ROD
8 8020521 RETAINER
9 17091074 WASHER Ø12X24X2,8 MM
10 17090271 WASHER Ø10X20X2,6 MM
11 8104533 SUPPORT RIGHT
12 8104536 SUPPORT LEFT
13 16608524 HEXAGON BOLT M10X1,5X70 MM (8.8)
14 17038421 HEXAGON NUT M12 (8)
15 17091374 SPRING WASHER Ø12X30X3,0 MM
16 8108634 SPACING BAR
17 741569 RUBBER LUG
18 8039265 WATER RADIATOR OPT.
