8065SU07.05A580

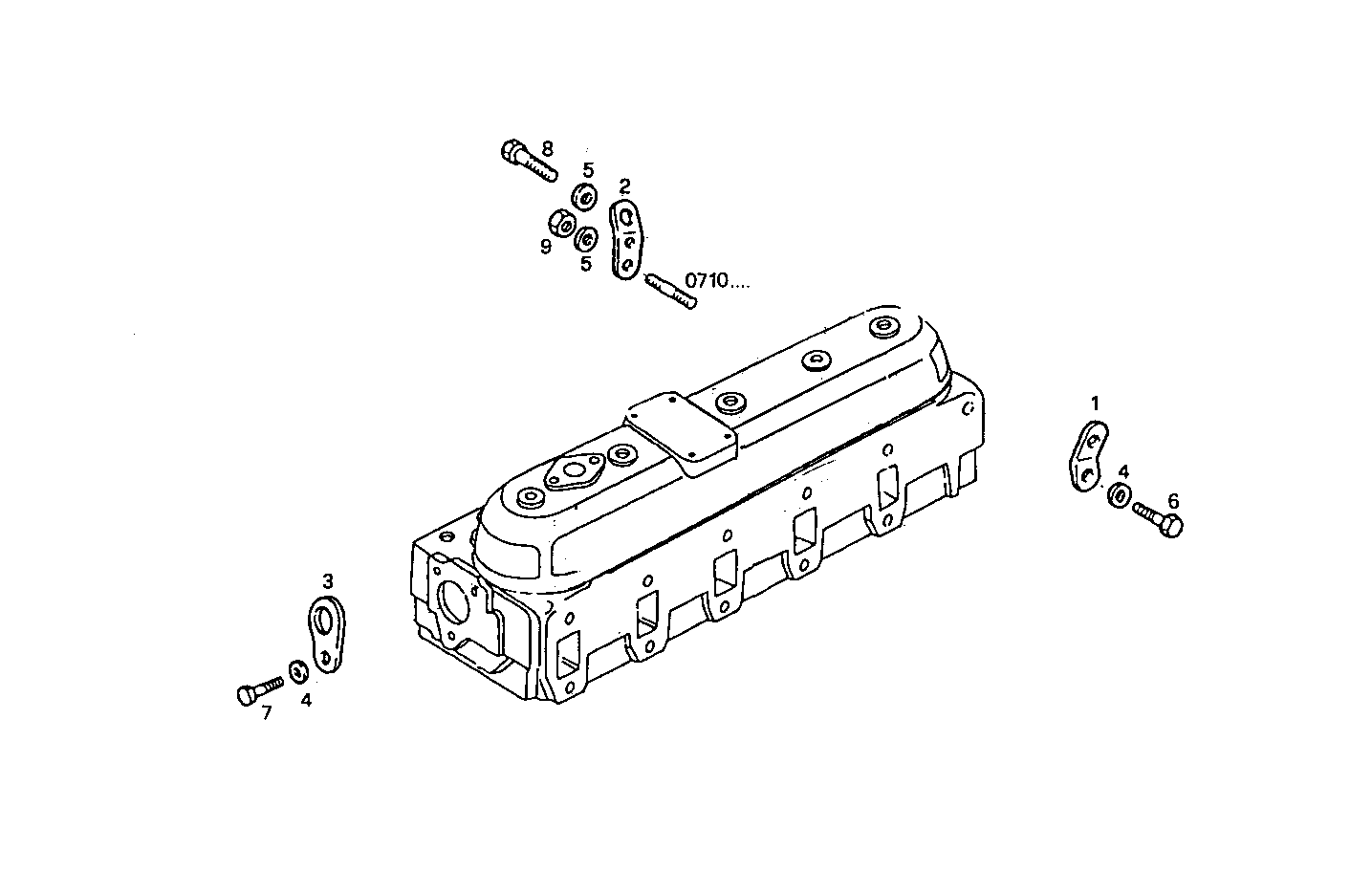

4500.087 ENGINE SUSPENSION
Item | Part number | Description |
---|---|---|
1 | 98439780 | HOOK REAR LEFT |
2 | 98439779 | HOOK REAR RIGHT |
3 | 98445229 | HOOK |
4 | 17090174 | SPRING WASHER Ø10X20 MM |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 | 15970521 | HEXAGON BOLT M10X20 MM |
7 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
8 | 16605924 | SCREW M8X40 MM |
9 | 17037931 | HEXAGON NUT M8X1,25 |
