8065U00.00

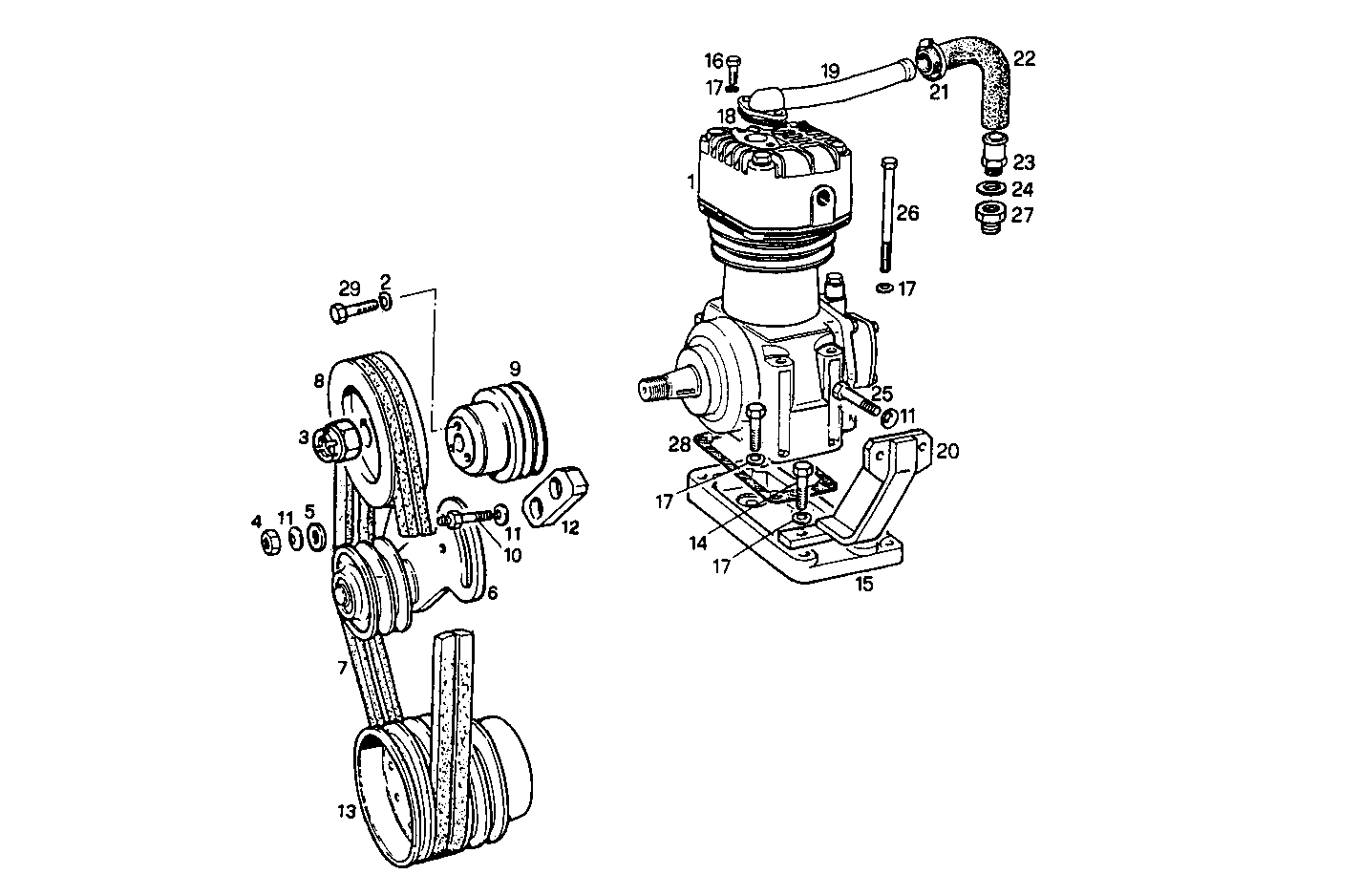

A18040003/02 AIR COMPRESSOR - if hydraulic pump not fitted - 192cc
| Item | Part number | Description |
|---|---|---|
| 1 | 8007667 | AIR COMPRESSOR ASSY |
| 2 | 11198071 | SPRING WASHER Ø8X15 SP=1,4 MM |
| 3 | 13598411 | CASTLE NUT M18X1,5 |
| 4 | 12164711 | HEXAGON NUT M10X1,25 |
| 5 | 14496601 | WASHER Ø10X21 MM |
| 6 | 8104958 | BELT TENSIONER |
| 7 | 8104972 | V-BELT KIT |
| 8 | 8007719 | PULLEY |
| 9 | 8009572 | PULLEY |
| 10 | 8104930 | STUD |
| 11 | 11198371 | SPRING WASHER Ø10X20 MM |
| 12 | 8104931 | SPACING BAR |
| 13 | 8104952 | PULLEY |
| 14 | 16043521 | SCREW M8X22 |
| 15 | 8104950 | PLATE |
| 16 | 16043421 | HEXAGON BOLT M8X20 MM |
| 17 | 11194071 | WASHER Ø8X16X1,9 MM |
| 18 | 619376 | FLAT ENGINE GASKET |
| 19 | 8104981 | OIL LINE |
| 20 | 8104936 | RETAINER |
| 21 | 12173790 | CLIP Ø18-28 MM |
| 22 | 4930352 | WATER HOSE |
| 23 | 4555394 | ELBOW COUPLING |
| 24 | 10260360 | SEAL GASKET Ø24,3 MM |
| 25 | 15970621 | SCREW M10X1,25X22 |
| 26 | 16045021 | HEXAGON BOLT M8X90 MM |
| 27 | 4633506 | THREADED UNION M22X1,5 |
| 28 | 4601884 | FLAT ENGINE GASKET |
