8140.43.3931

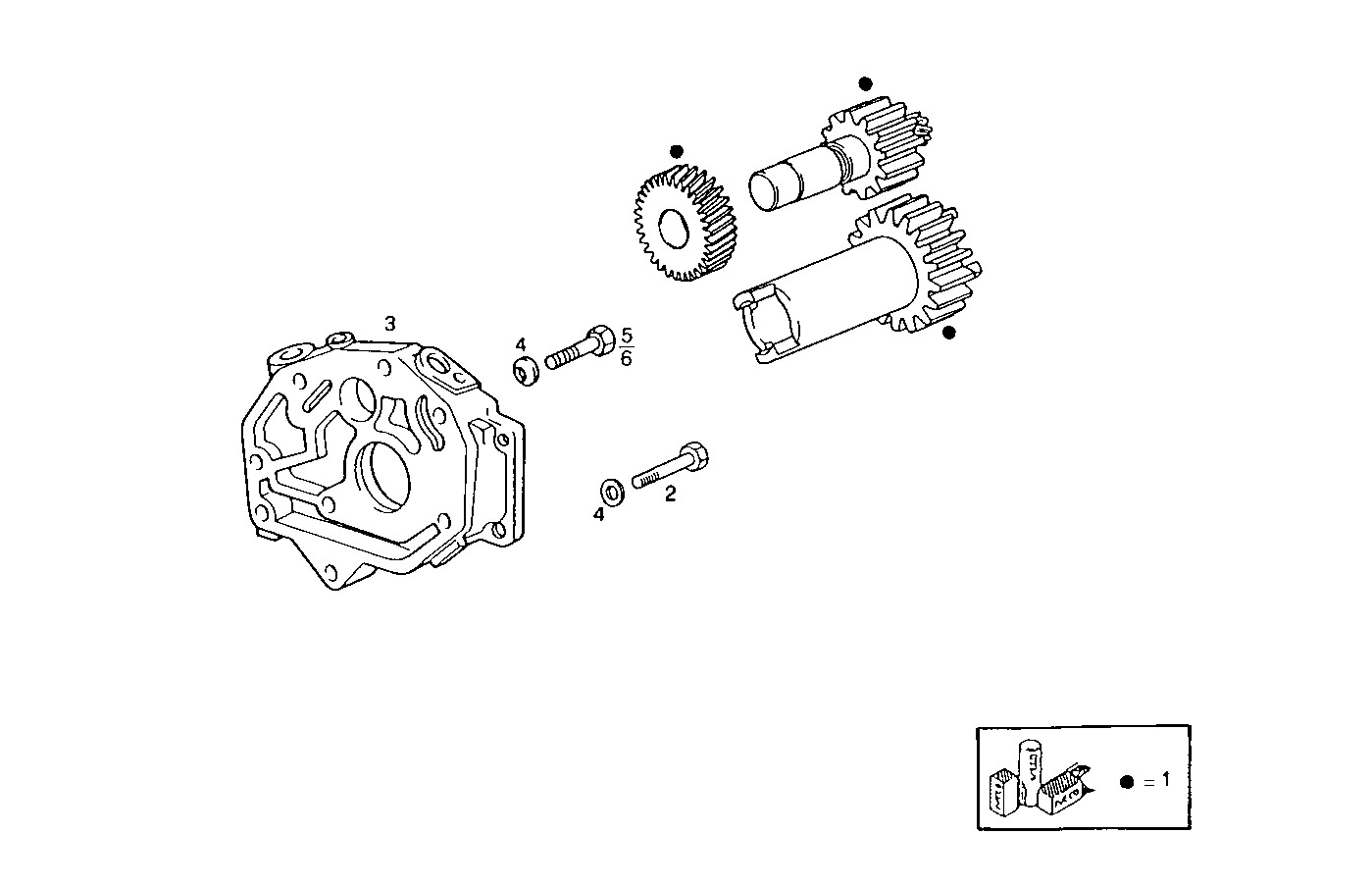

3000.042 OIL PUMP

Iveco/FPT OIL PUMP

Item Part number Description
1 4856602 KIT-OIL PUMP GEARS
2 500309868 COVER [up to 2384045]
3 14326001 THREADED PLUG M10X1,25
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 16605924 SCREW M8X40 MM
6 16606124 HEXAGON BOLT M8X50 MM
7 16043724 HEXAGON BOLT M8X28 MM (8.8)
8 500354826 COVER [up to 2689494]
9 500334155 COVER [from 2689495]
11 17042531 HEXAGON NUT M8
12 13516921 STUD M8X12X22 MM
