8140.43.3931

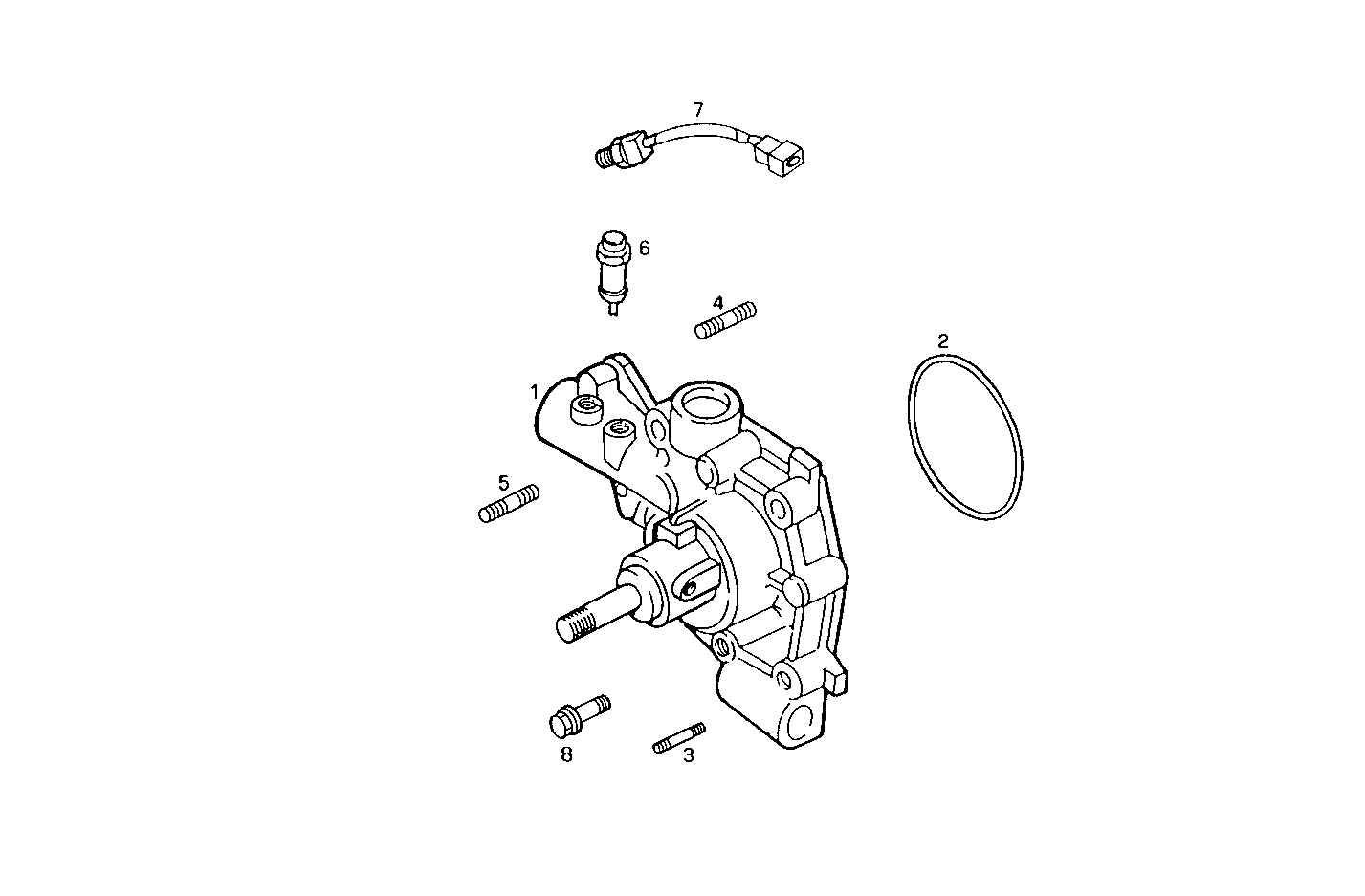

3200.094 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500330615 | WATER PUMP ASSY |
| 2 | 14472680 | O-RING Ø94,62 MM SP=5,33 MM |
| 3 | 16745124 | STUD M6X25 MM |
| 4 | 13543524 | STUD M8X16X25 |
| 5 | 13546321 | STUD M10X25 MM |
| 6 | 4857248 | TRANSMITTER |
| 7 | 99452677 | TEMP. TRANSMITTER |
| 8 | 98494125 | HEXAGON BOLT M10X1,25X50 MM |
