8140.43.3941

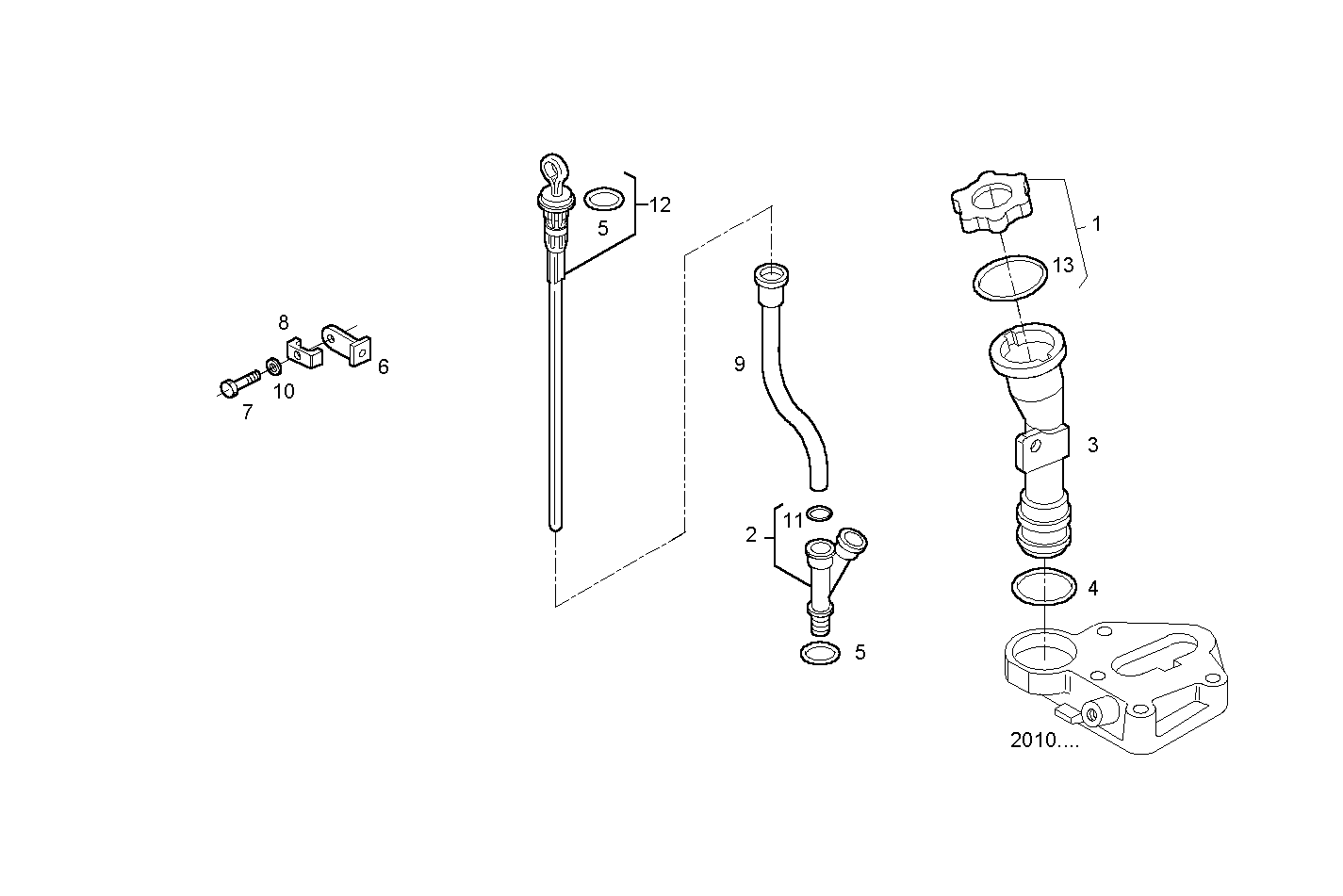

2710.097 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 500301568 | OIL FILLER PLUG ASSY |
2 | 99441398 | PIPE SOCKET ASSY |
3 | 99488068 | OIL FILLER PIPE |
4 | 17282681 | O-RING SP=2,62 MM |
5 | 17277981 | O-RING 1,78x9,25 |
6 | 500332591 | RETAINER DAMPERS |
7 | 16673734 | HEXAGON BOLT M8X25 MM |
8 | 4716870 | RETAINER |
9 | 500356851 | OIL LEVEL TUBE |
10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
11 | 17281581 | O-RING Ø12,37X2,62 MM |
12 | 500370239 | OIL DIPSTICK ASSY |
13 | 17295480 | O-RING 5,33x37,46 |
