8140.43C.2590

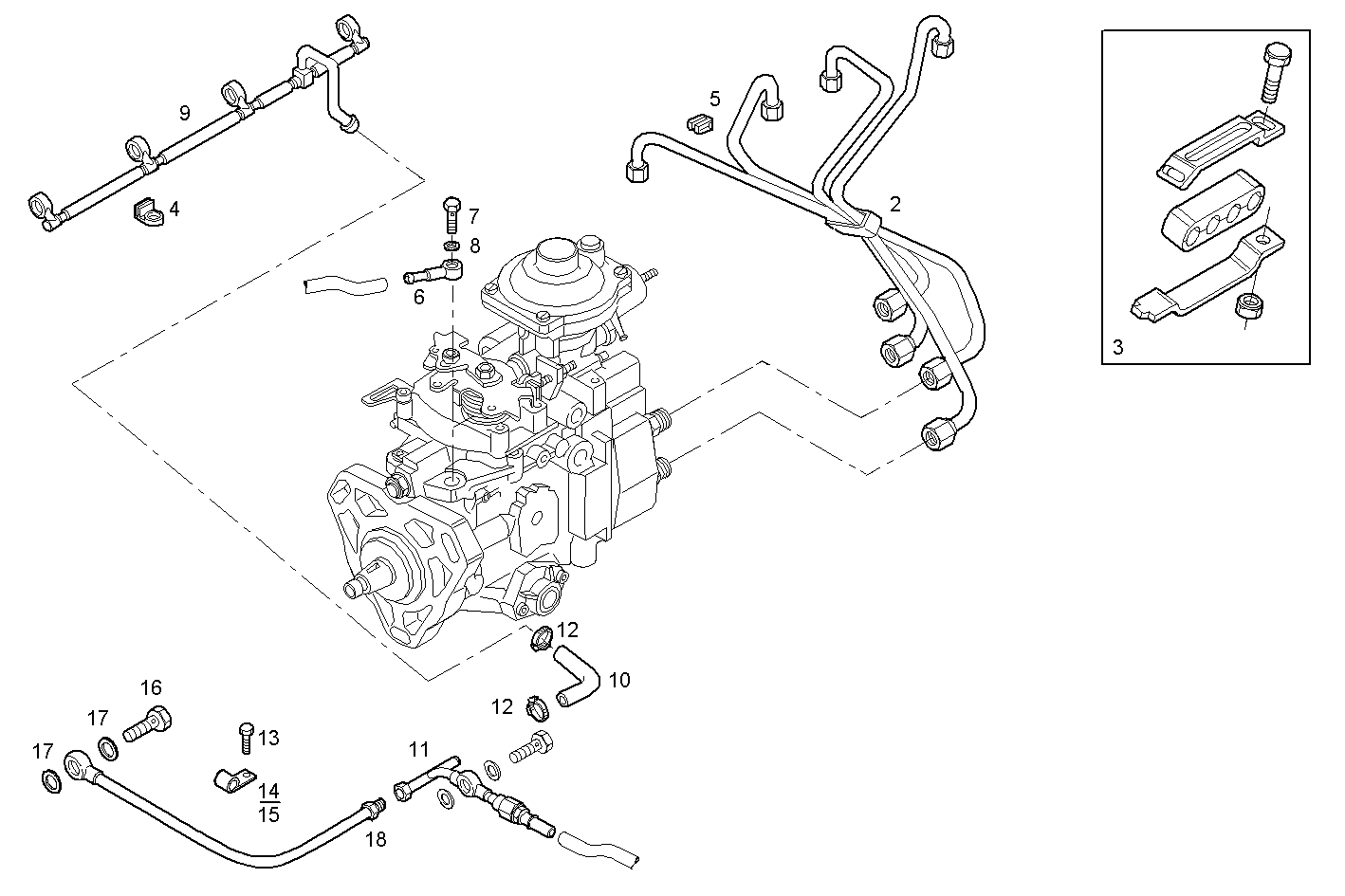

2020.136 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 2 | 99443745 | INJECTION LINE SET ASSY |
| 3 | 500302833 | FASTENING BRACKET |
| 4 | 4734007 | RETAINER FRONT |
| 5 | 4734008 | RETAINER REAR |
| 6 | 500327420 | THREADED UNION |
| 7 | 10181711 | SCREW CONNECTOR M12X1,5 |
| 8 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 9 | 7303520 | FUEL LINE ASSY |
| 10 | 17724587 | RUBBER HOSE Ø7,5X14,5 MM |
| 11 | 500332069 | FUEL LINE |
| 12 | 18088192 | CLIP m10-16 |
| 13 | 16596924 | HEXAGON BOLT M6X10 MM |
| 14 | 17314590 | RETAINER Ø6 MM |
| 15 | 17314490 | CLIP |
| 16 | 7303136 | SCREW CONNECTOR |
| 17 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 18 | 500352220 | FUEL LINE |
