8140.43C.3941

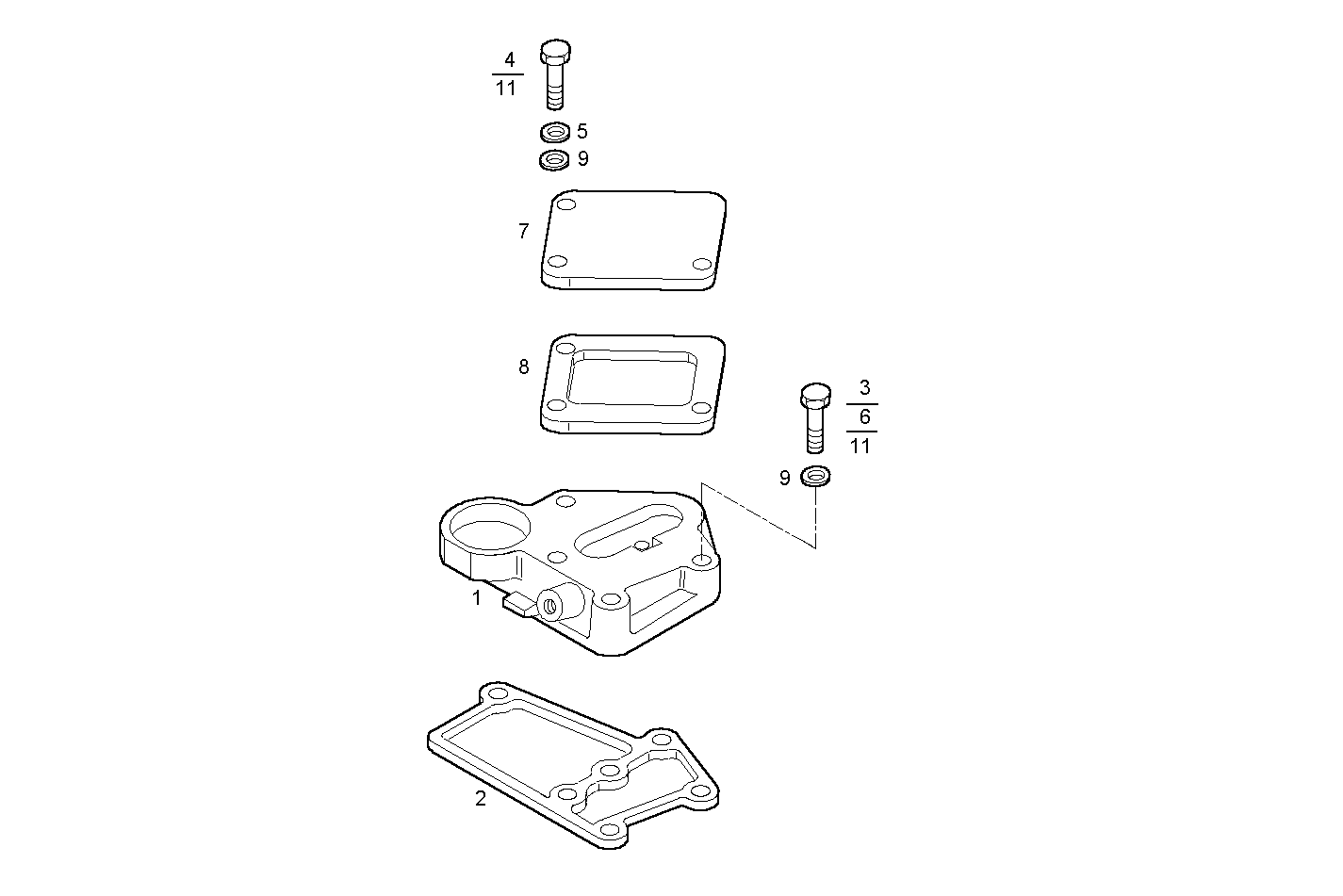

2010.027 FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500361939 | SUPPORT |
| 2 | 500349423 | FLAT ENGINE GASKET SP=0,4 MM |
| 3 | 16605524 | HEXAGON BOLT M8X20 MM |
| 3 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 4 | 16606224 | HEXAGON BOLT M8X55 MM |
| 5 | 13550301 | WASHER Ø8,15 MM |
| 6 | 16606324 | HEXAGON BOLT M8X60 MM |
| 7 | 98414703 | COVER |
| 8 | 98414704 | FLAT ENGINE GASKET |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
