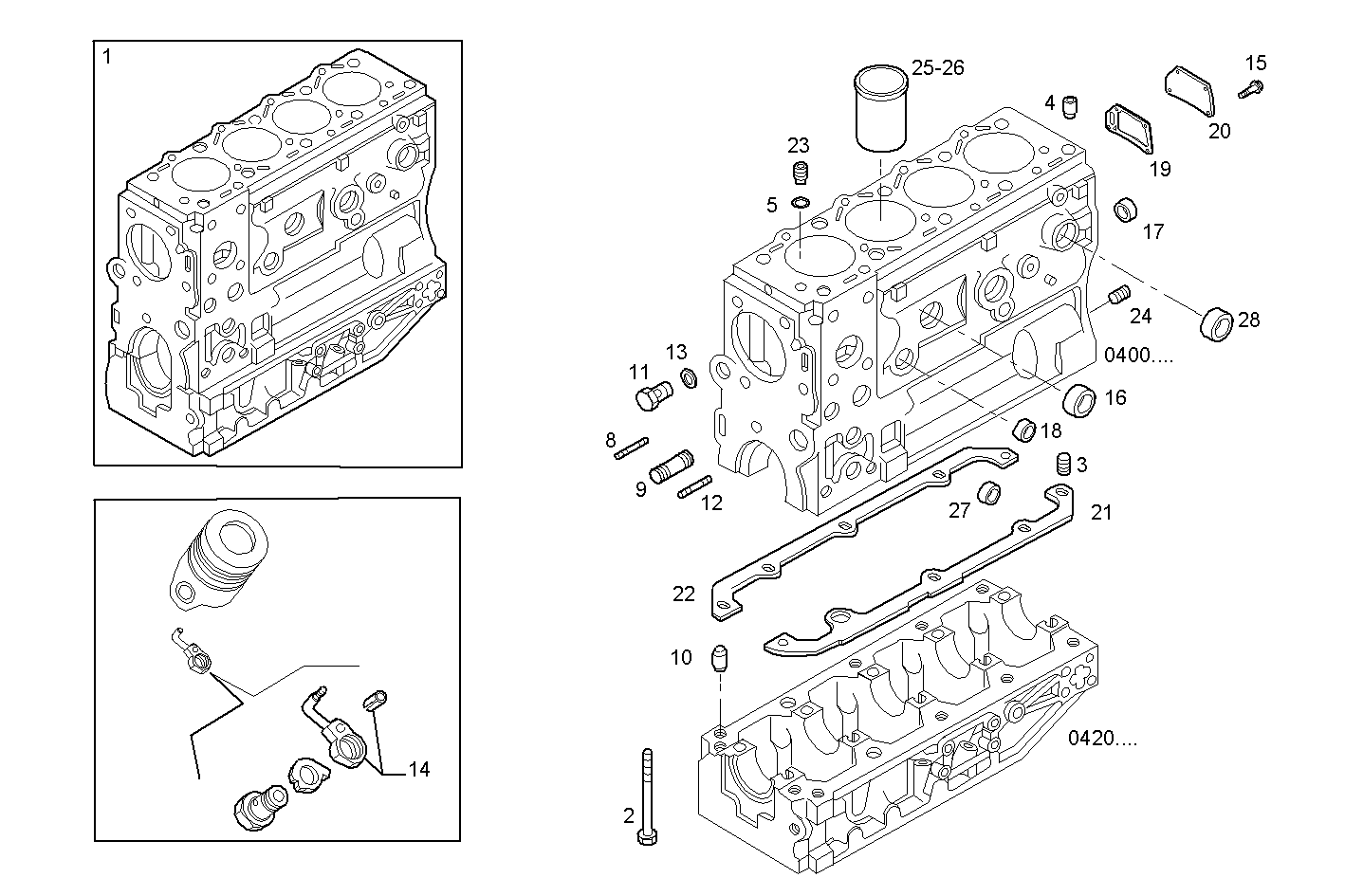

| Item |
Part number |
Description |
|
1 |
99477104 |
CRANKCASE ASSY |
|
2 |
4792169 |
SCREW |
|
3 |
4724790 |
DOWEL PIN |
|
4 |
98418754 |
DOWEL PIN |
|
5 |
17277981 |
O-RING 1,78x9,25 |
|
6 |
7302421 |
SCREW CONNECTOR |
|
7 |
7302007 |
STOP PLATE |
|
8 |
13518021 |
STUD M8X12 MM |
|
9 |
7300719 |
THREADED UNION |
|
10 |
4279387 |
CENTERING RING |
|
11 |
7303457 |
THREADED PLUG |
|
12 |
7300579 |
STUD |
|
13 |
16508360 |
WASHER 18x22x1,5 |
|
14 |
504032242 |
OIL NOZZLE |
|
15 |
18138324 |
CYLIND-HEAD SCREW M8X1,25X16 MM |
|
16 |
14282870 |
LOCK PLUG Ø40 MM |
|
17 |
7301976 |
PLUG Ø16 MM |
|
18 |
14328901 |
LOCK PLUG Ø25 MM |
|
19 |
500329970 |
FLAT ENGINE GASKET SP=0,4 MM |
|
20 |
98471295 |
COVER [from 2122618] |
|
21 |
99432807 |
FLAT ENGINE GASKET LEFT [from 2122618] |
|
22 |
99432808 |
FLAT ENGINE GASKET RIGHT [from 2122618] |
|
23 |
98418753 |
DOWEL PIN [from 1533081] |
|
24 |
7300019 |
DOWEL PIN |
|
25 |
99435938 |
CYLINDER LINER STD. |
|
26 |
99443784 |
CYLINDERLINER +0.2 |
|
27 |
14329001 |
LOCK PLUG Ø28 MM |
|
28 |
14329501 |
PLUG |
