8140.43F.3800

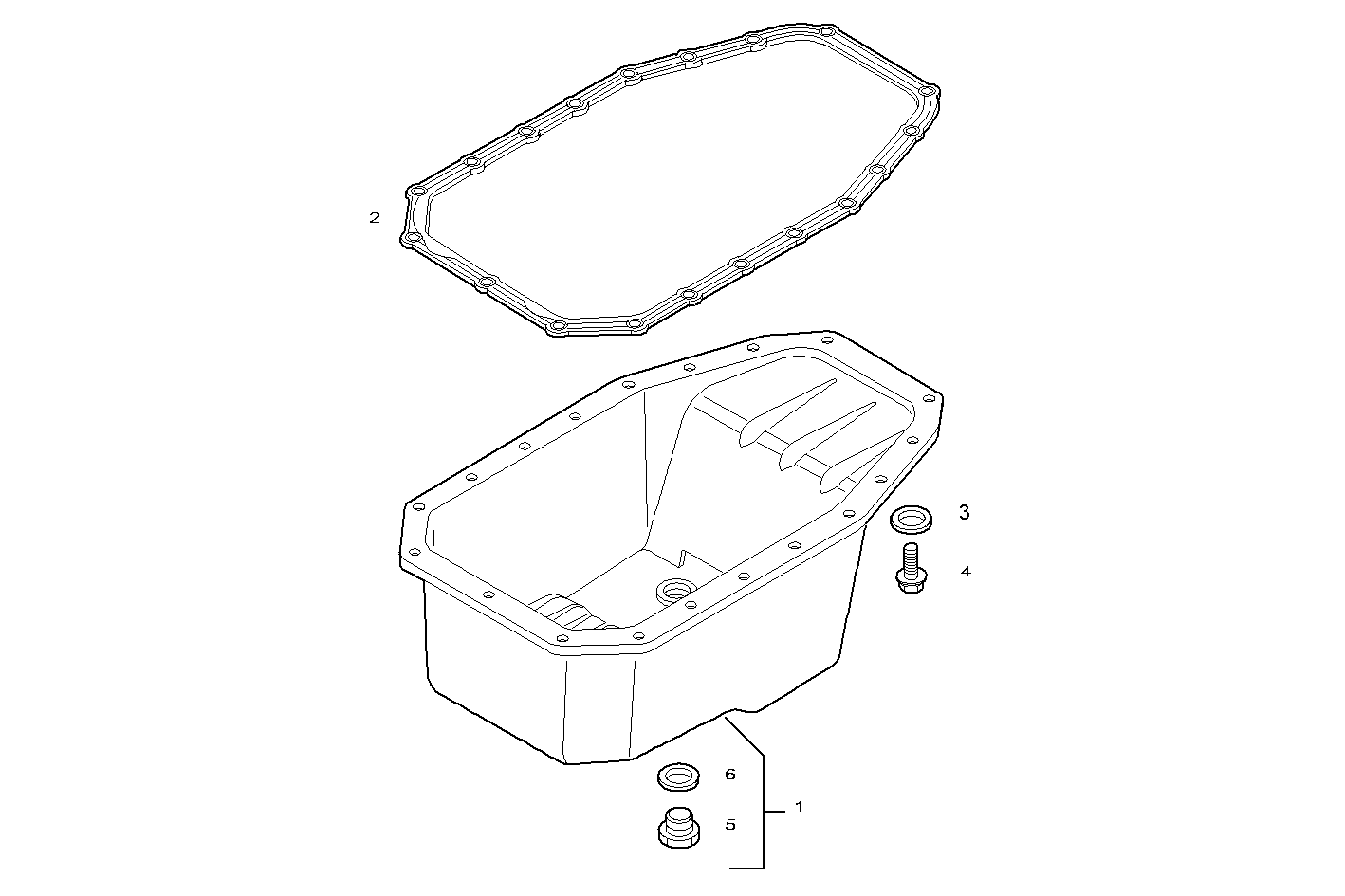

0420.175 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 4824797 | OIL SUMP ASSY |
2 | 500380423 | OIL SUMP GASKET |
3 | 17089574 | WASHER Ø8X16 MM |
4 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
5 | 16992611 | THREADED PLUG M22X1,5 |
6 | 16508460 | WASHER 22x27x1,5 |
