8140.43F.3800

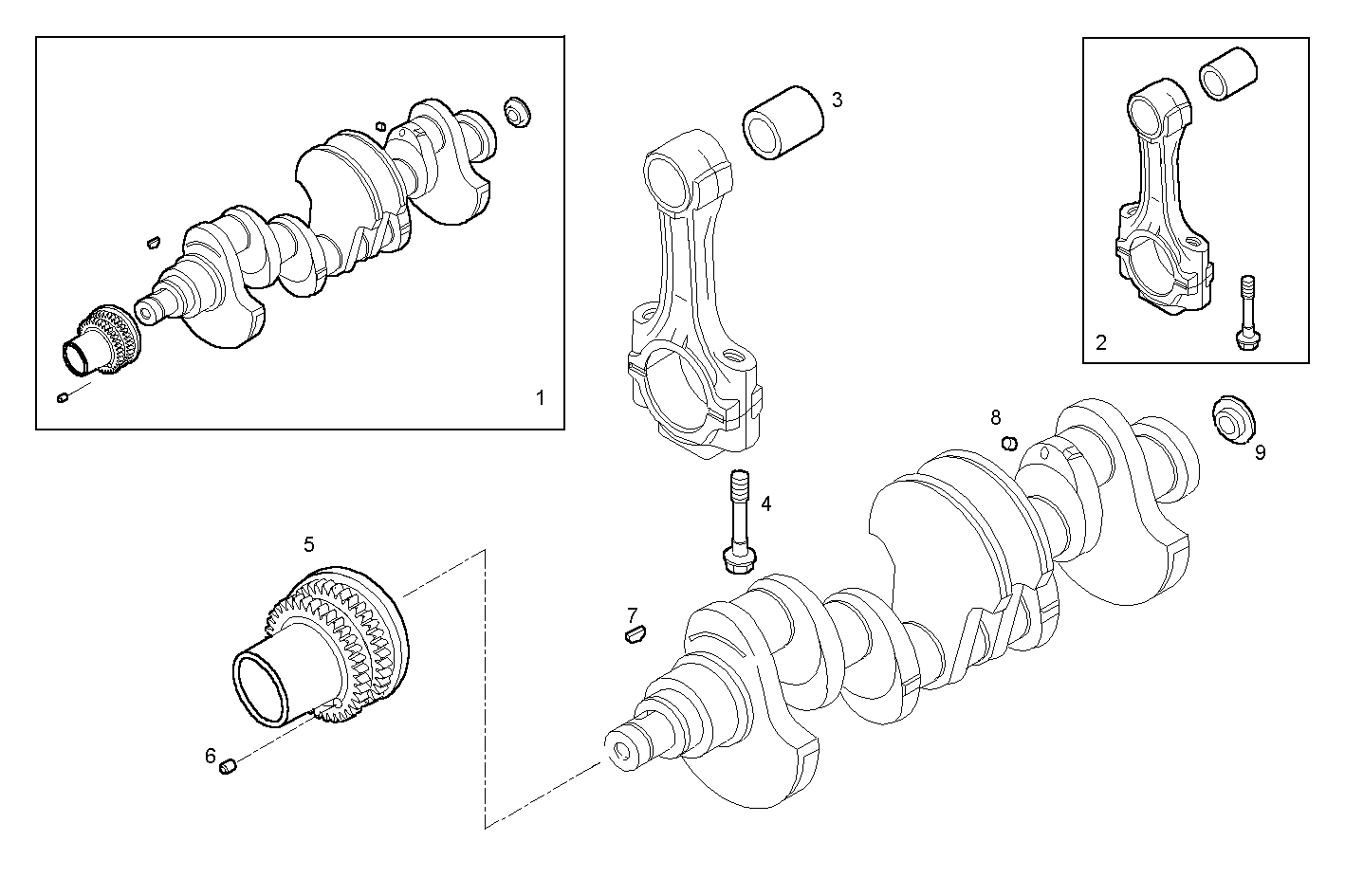

0800.132 CRANK SHAFT
Item | Part number | Description |
---|---|---|
1 | 504033131 | CRANK SHAFT ASSY |
2 | 500352497 | CONN.ROD ASSY. ASSY [FROM # 2572280] |
3 | 500329617 | BIG-END BUSH [FROM # 2572280] |
4 | 98460577 | BIG-END BOLT |
5 | 98420079 | GEAR |
6 | 10332010 | PARALLEL PIN |
7 | 4655844 | KEY |
8 | 14328101 | LOCK PLUG Ø8 MM |
9 | 98426373 | CENTERING RING [from 1307401] |
