8140.43F.3800

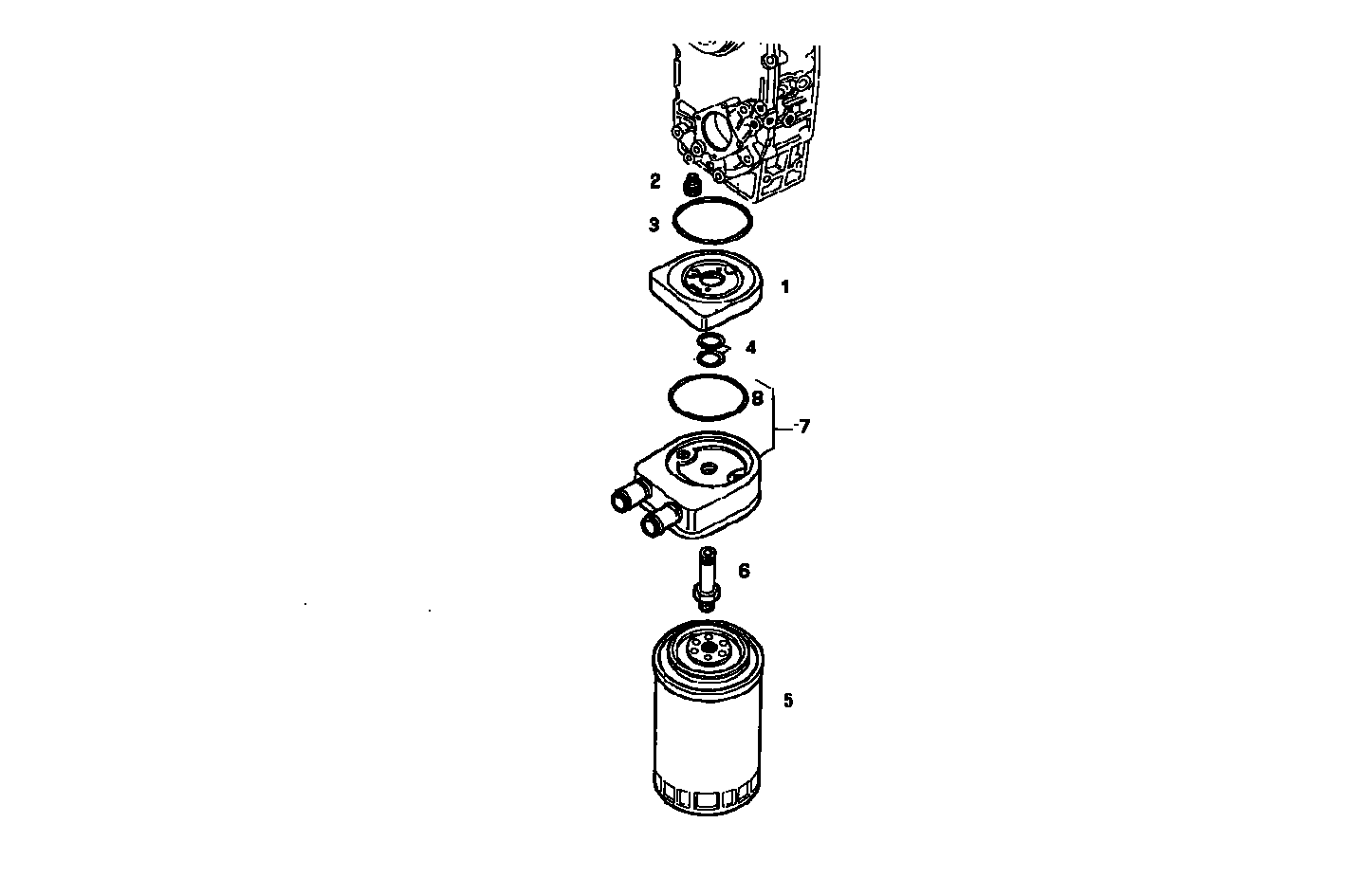

3010.243 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 99488291 | OIL FILTER SUPPORT |
| 2 | 4737557 | DOWEL PIN |
| 3 | 17290181 | O-RING Ø59,92 MM SP=3,53 MM |
| 4 | 17278781 | O-RING Ø21,95 MM SP=1,78 MM |
| 5 | 2994057 | OIL FILTER CARTRIDGE |
| 6 | 504072567 | THREADED UNION |
| 7 | 4866350 | HEAT EXCHANGER ASSY |
| 8 | 93160574 | RUBBER RING Ø66 MM SP=5 MM |
